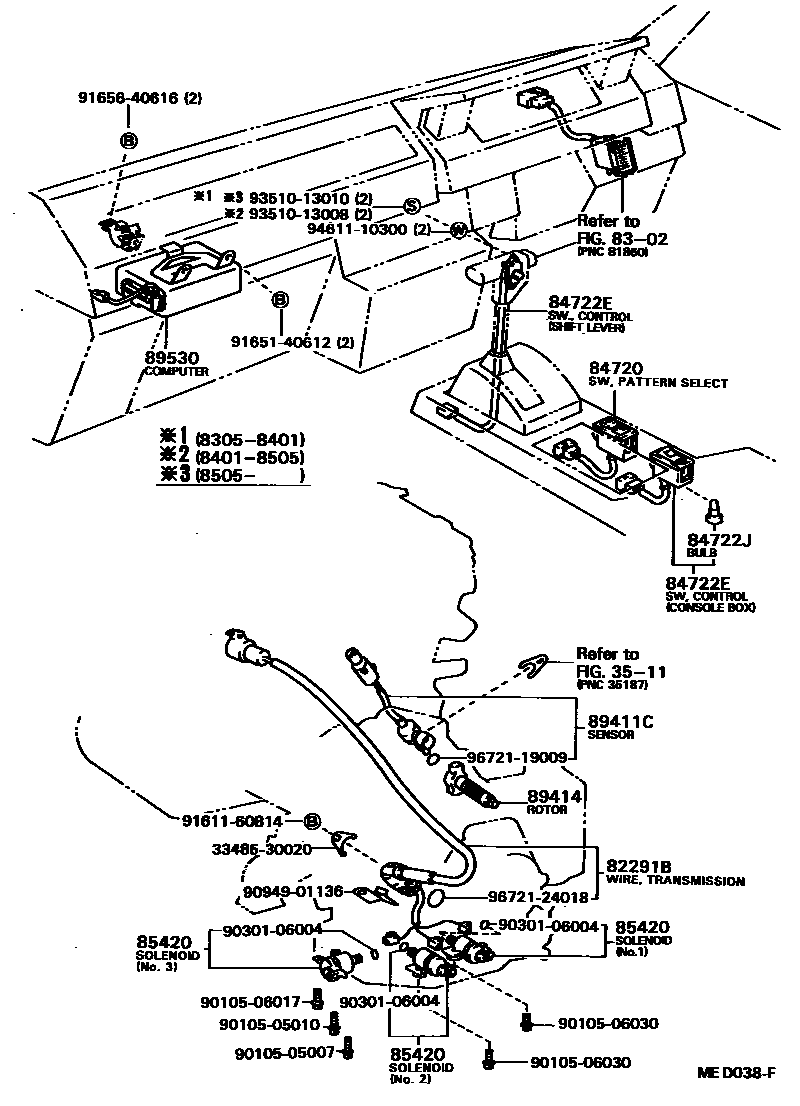

Toyota SPRINTER — ELECTRONIC CONTROLLED TRANSMISSION
3511REAR OIL PUMP & GOVERNOR (ATM)
82291BWIRE, TO SOLENOID (FOR TRANSMISSION)
8302INDICATOR
84720SWITCH ASSY, PATTERN SELECT
84722ESWITCH, TRANSMISSION CONTROL
CONSOLE BOX
SHIFT LEVER,BLACK,BLACK
SHIFT LEVER,MAROON,DEEP MAROON,TRIM3#
SHIFT LEVER,GRAY,GRAY,TRIM1#
SHIFT LEVER,BLUE,BLUE,TRIM8#
SHIFT LEVER,BROWN,BROWN,TRIM4#
SHIFT LEVER
84722JBULB, TRANSMISSION CONTROL SWITCH
85420SOLENOID ASSY, TRANSMISSION
NO.1,NO.2
NO.3
NO.3
89411CSENSOR, SPEED
89414ROTOR, SENSOR
89530COMPUTER ASSY, TRANSMISSION CONTROL
3348530020PLATE, SPEEDOMETER SLEEVE LOCK (MTM)
main33485-30020
9010505007
main90105-05007
9010505010
main90105-05010
9010506017
main90105-06017
9010506030
main90105-06030
9030106004
main90301-06004
9094901136
main90949-01136
9161160814
main91611-60814
9165140612
main91651-40612
9165640616
main91656-40616
9351013008
main93510-13008
9351013010
main93510-13010
9461110300
main94611-10300
9672119009
main96721-19009
9672124018
main96721-24018
25 parts on this diagram · 1 diagram in section
ELECTRONIC CONTROLLED TRANSMISSION for Toyota SPRINTER
This section contains 25 genuine Toyota parts for the ELECTRONIC CONTROLLED TRANSMISSION system of the Toyota SPRINTER. Key components include: REAR OIL PUMP & GOVERNOR (ATM), WIRE, TO SOLENOID (FOR TRANSMISSION), INDICATOR, SWITCH ASSY, PATTERN SELECT, SWITCH, TRANSMISSION CONTROL.
