Toyota SPRINTER — ELECTRONIC CONTROLED DIESEL (ECD)

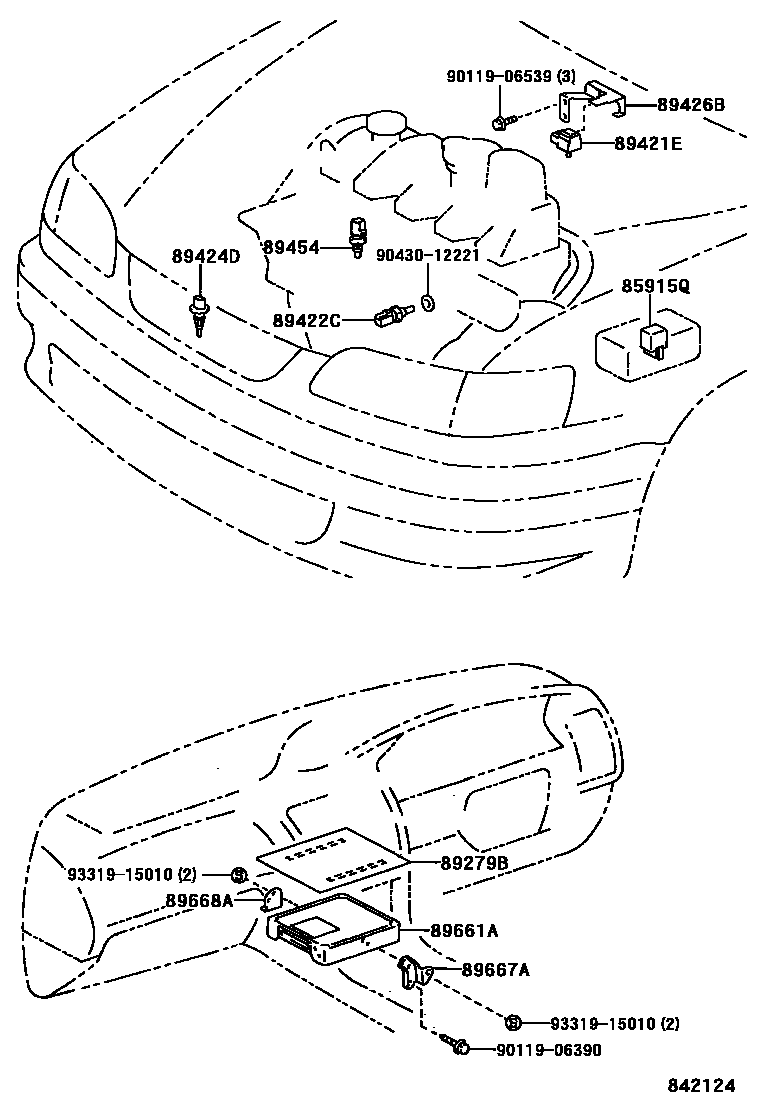

Parts diagram

85915QRELAY, COMPUTER (FOR DIESEL)

main85915-26010i199804

89279BCOVER, DIESEL ENGINE CONTROL COMPUTOR

main89279-12110i199804

89421ESENSOR, VACUUM

main89420-12110i199804

89422CSENSOR, DIESEL ENGINE WATER TEMPERATURE

main89422-35010i199804

89424DSENSOR, INLET AIR TEMPERATURE

main89424-12010i199804

89426BBRACKET, VACUUM SENSOR

main89426-12150i199804

89454SENSOR, FUEL TEMPERATURE

main89454-60010i199804

89661ACOMPUTER, ENGINE CONTROL

main89661-1E220i199804

main89661-1E230i199804

main89661-1E240i199804

89667ABRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-12120i199804

89668ABRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-12050i199804

9011906390

main90119-06390

9011906539

main90119-06539

9043012221

main90430-12221

9331915010

main93319-15010

14 parts on this diagram · 1 diagram in section

ELECTRONIC CONTROLED DIESEL (ECD) for Toyota SPRINTER

This section contains 14 genuine Toyota parts for the ELECTRONIC CONTROLED DIESEL (ECD) system of the Toyota SPRINTER. Key components include: RELAY, COMPUTER (FOR DIESEL), COVER, DIESEL ENGINE CONTROL COMPUTOR, SENSOR, VACUUM, SENSOR, DIESEL ENGINE WATER TEMPERATURE, SENSOR, INLET AIR TEMPERATURE.
