Toyota SPRINTER — DISTRIBUTOR

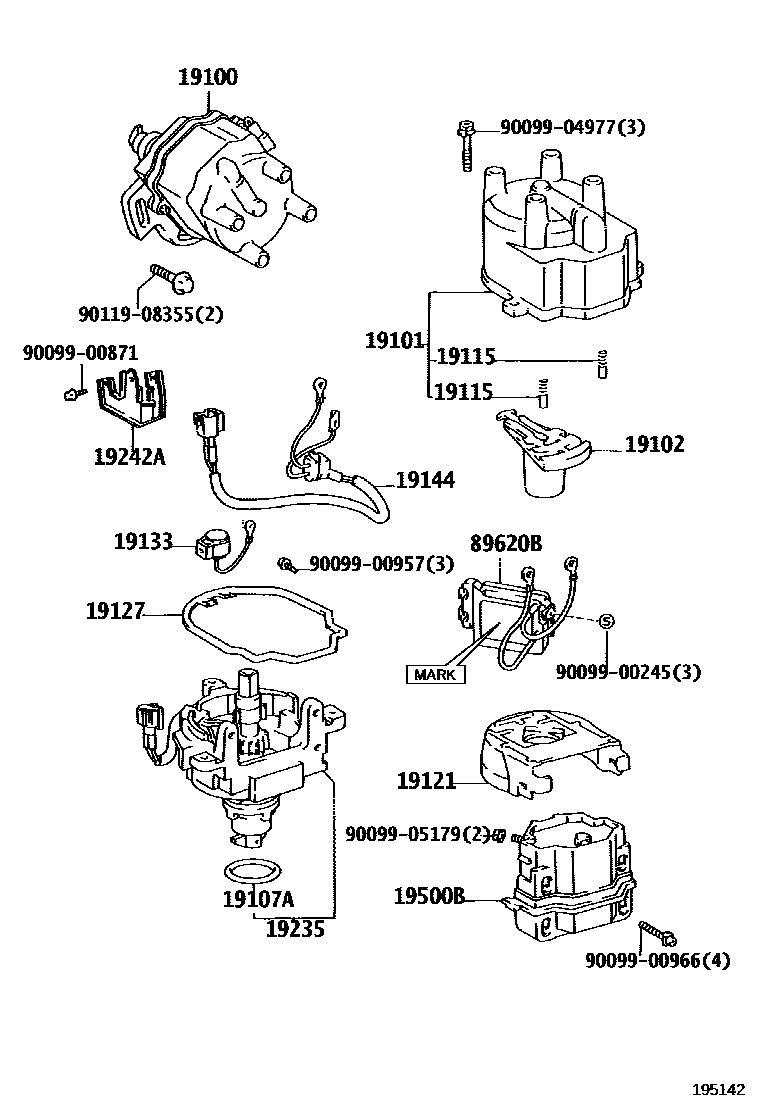

Parts diagram

19100DISTRIBUTOR ASSY

main19020-11340i199505-199511

main19020-11380i199511-199704

main19020-15180i199505-199704

main19020-16250i199505-199511

main19020-16260i199511-199704

main19100-16270i199704-200008

19101CAP SUB-ASSY, DISTRIBUTOR

main19101-11060i199505-199704

main19101-16010i199704-200008

19102ROTOR SUB-ASSY, DISTRIBUTOR

main19102-11031i199505-199511

main19102-11370i199511-199704

main19102-74040i199704-200008

19107ARING, O, DISTRIBUTOR HOUSING

main90099-14088i199505-199704

main90099-14127i199505-199704

19115PIECE, DISTRIBUTOR CAP, CENTER

main19115-63010×2i199505-199704

main19115-88280i199704-200008

19121COVER, DUST PROOF

main19121-11080i199505-199704

19127PACKING, DUST PROOF

main19127-15120i199505-199704

main19127-74040i199704-200008

19133CONDENSER, DISTRIBUTOR

main19133-16240i199505-199704

19144LEAD, DISTRIBUTOR BREAKER

main19144-11350i199505-199704

main19144-16020i199505-199704

19235HOUSING, DISTRIBUTOR

main19235-11340i199505-199704

main19235-16060i199704-200008

main19235-16120i199505-199704

main19235-16270i199505-199704

19242CLAMP, CORD

main19242-11190i199505-199704

main19242-11350i199505-199704

19242ACLAMP, CORD, NO.2

main19242-15180i199505-199704

19500BCOIL ASSY, IGNITION

main90919-02164i199704-200008

89620BIGNITER ASSY

main89620-12420i199505-199704

main89620-12440i199505-199701

main89620-16260i199701-199704

9009900245

main90099-00245

9009900871

main90099-00871

9009900957

main90099-00957

9009900966

main90099-00966

9009904977

main90099-04977

9009905179

main90099-05179

9011908355

main90119-08355

21 parts on this diagram · 3 diagrams in section
