Toyota SPRINTER — DISC WHEEL & WHEEL CAP

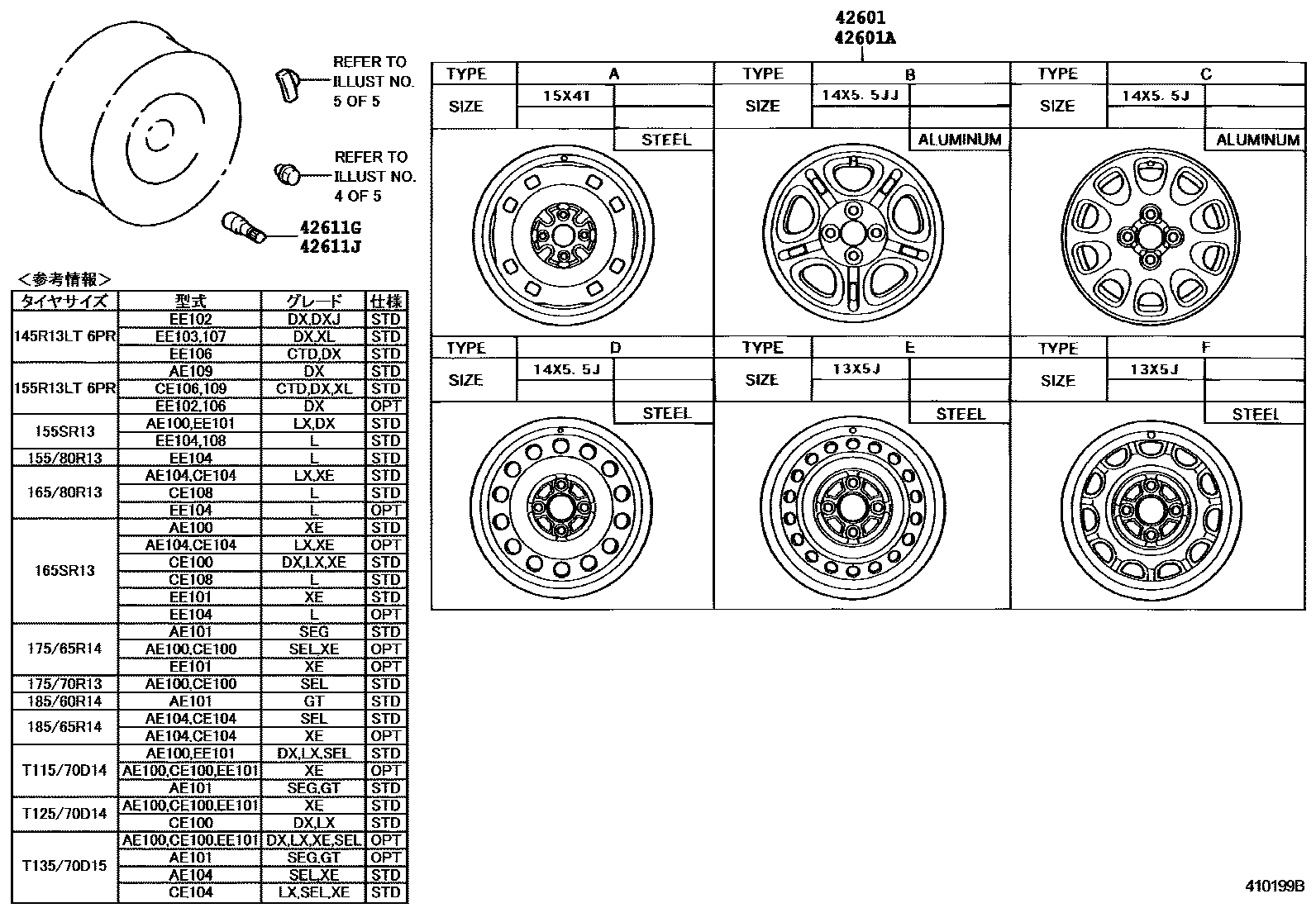

Parts diagram

42601WHEEL, DISC

main42611-13090-03×4i199109-200008

main42611-13110×4i199201-199708

main42611-1A120×4i199106-199505

main42611-1A130×4i199106-199505

main42611-1A140-01×4i199202-199505

main42611-1A150-01×4i199106-199110

main42611-1A160-03×4i199106-199305

main42611-1A210-01×4i199106-199202

42601AWHEEL, DISC (FOR SPARE)

main42611-13090-03i199109-200008

main42611-13110i200008

main42611-16200i199106-199505

main42611-17040i199106-199212

main42611-1A010i199109-199505

main42611-1A120i199106-199505

main42611-1A130i199109-199205

main42611-1A140-01i199202-199505

main42611-1A150-01i199401

main42611-1A160-03i199106

main42611-1A210-01i199106-199202

main42611-1A330i199212-199505

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009×4i199106

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009i199106

4 parts on this diagram · 5 diagrams in section

DISC WHEEL & WHEEL CAP for Toyota SPRINTER

This section contains 76 genuine Toyota parts for the DISC WHEEL & WHEEL CAP system of the Toyota SPRINTER. Key components include: WHEEL, DISC, WHEEL, DISC (FOR SPARE), NUT, HUB (FOR AXLE), ORNAMENT SUB-ASSY, WHEEL HUB, VALVE (FOR TUBELESS TIRE).
