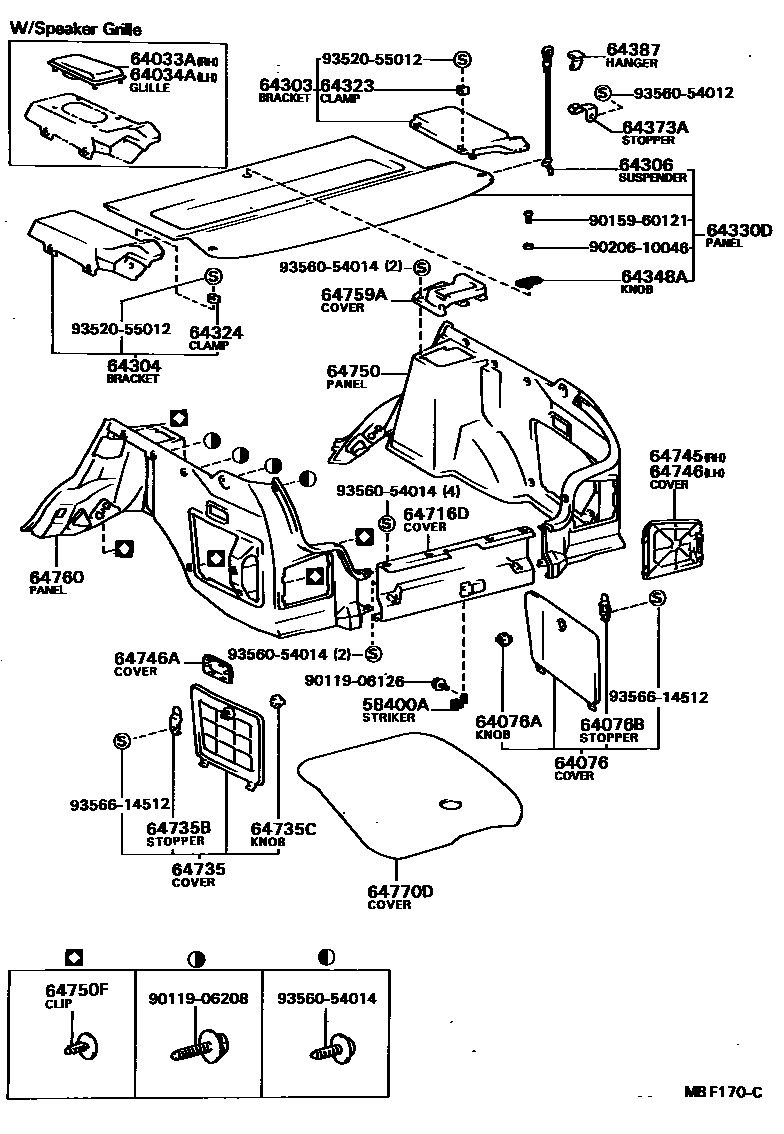

Toyota SPRINTER — DECK BOARD & DECK TRIM COVER
58400ASTRIKER, LUGGAGE HOLD BELT
64033AGRILLE SUB-ASSY, REAR SPEAKER, RH
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
64034AGRILLE SUB-ASSY, REAR SPEAKER, LH
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
64076COVER, DECK TRIM SIDE JACK
MAROON,RED/MAROON,TRIM3#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
64076AKNOB, DECK TRIM SIDE JACK COVER
MAROON,RED/MAROON,TRIM3#
BLUE,BLUE,TRIM8#
GRAY,GRAY,TRIM1#
BROWN,BROWN,TRIM4#
64076BSTOPPER, DECK TRIM SIDE JACK COVER
64303BRACKET SUB-ASSY, PACKAGE TRAY, RH
MAROON,RED/MAROON,TRIM3#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
W/*SPG,GRAY,GRAY,TRIM1#
W/*SPG,BLUE,BLUE,TRIM8#
W/*SPG,BROWN,BROWN,TRIM4#
64304BRACKET SUB-ASSY, PACKAGE TRAY, LH
MAROON,RED/MAROON,TRIM3#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
W/*SPG,GRAY,GRAY,TRIM1#
W/*SPG,BLUE,BLUE,TRIM8#
W/*SPG,BROWN,BROWN,TRIM4#
64306SUSPENDER SUB-ASSY, PACKAGE TRAY TRIM
W/O *FFS
W/*FFS
64323CLAMP, PACKAGE TRAY TRIM, NO.1
64324CLAMP, PACKAGE TRAY TRIM, NO.2
64330DPANEL ASSY, PACKAGE TRAY TRIM
W/O *FFS,RR WIPER,MAROON,RED/MAROON,TRIM3#
W/O *FFS,RR WIPER,GRAY,GRAY,TRIM1#
W/O *FFS,RR WIPER,BLUE,BLUE,TRIM8#
W/O *FFS,RR WIPER,BROWN,BROWN,TRIM4#
W/O *FFS,W/RR WIPER,MAROON,RED/MAROON,TRIM3#
W/O *FFS,W/RR WIPER,GRAY,GRAY,TRIM1#
W/O *FFS,W/RR WIPER,BLUE,BLUE,TRIM8#
W/O *FFS,W/RR WIPER,BROWN,BROWN,TRIM4#
MAROON,RED/MAROON,TRIM3#
W/*FFS,RR WIPER,MAROON,RED/MAROON,TRIM3#
GRAY,GRAY,TRIM1#
W/*FFS,RR WIPER,GRAY,GRAY,TRIM1#
W/*FFS,RR WIPER,BLUE,BLUE,TRIM8#
BLUE,BLUE,TRIM8#
W/*FFS,RR,WIPER,BROWN,BROWN,TRIM4#
W/RR WIPER,GRAY,GRAY,TRIM1#
W/RR WIPER,BLUE,BLUE,TRIM8#
W/RR WIPER,BROWN,BROWN,TRIM4#
W/*FFS,W/O RR WIPER,MAROON,RED/MAROON,TRIM3#
W/*FFS,W/O RR WIPER,GRAY,GRAY,TRIM1#
W/*FFS,W/O RR WIPER,BLUE,BLUE,TRIM8#
W/*FFS,W/O RR WIPER,BROWN,BROWN,TRIM4#
W/O RR WIPER,GRAY,GRAY,TRIM1#
W/O RR WIPER,BLUE,BLUE,TRIM8#
W/O RR WIPER,BROWN,BROWN,TRIM4#
64348AKNOB, PACKAGE TRAY TRIM
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BROWN,SABLE,TRIM4#
64373ASTOPPER, PACKAGE TRAY TRIM
64387HANGER, PACKAGE TRAY TRIM
64716DCOVER, DECK TRIM, REAR
MAROON,RED/MAROON,TRIM3#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
64735COVER, DECK TRIM SIDE SERVICE HOLE
MAROON,RED/MAROON,TRIM3#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
64735BSTOPPER, DECK TRIM SIDE SERVICE HOLE COVER
64735CKNOB, DECK TRIM SIDE SERVICE HOLE COVER
MAROON,RED/MAROON,TRIM3#
BLUE,BLUE,TRIM8#
GRAY,GRAY,TRIM1#
BROWN,BROWN,TRIM4#
64745COVER, REAR COMBINATION LAMP SERVICE, RH
MAROON,RED/MAROON,TRIM3#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
64746COVER, REAR COMBINATION LAMP SERVICE, LH
MAROON,RED/MAROON,TRIM3#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
64746ACOVER, DECK TRIM SIDE LAMP HOLE
MAROON,RED/MAROON,TRIM3#
GRAY,GRAY,TRIM1#
BROWN,BROWN,TRIM4#
BLUE,BLUE,TRIM8#
64750PANEL ASSY, DECK SIDE TRIM, RH
W/O *FFS,MAROON,RED/MAROON,TRIM3#
W/O *FFS,GRAY,GRAY,TRIM1#
W/O *FFS,BLUE,BLUE,TRIM8#
W/O *FFS,BROWN,BROWN,TRIM4#
MAROON,RED/MAROON,TRIM3#
W/*FFS,MAROON,RED/MAROON,TRIM3#
GRAY,GRAY,TRIM1#
W/*FFS,GRAY,GRAY,TRIM1#
W/*FFS,BLUE,BLUE,TRIM8#
BLUE,BLUE,TRIM8#
W/*FFS,BROWN,BROWN,TRIM4#
BROWN,BROWN,TRIM4#
64750FCLIP(FOR DECK SIDE TRIM PANEL)
MAROON,RED/MAROON,TRIM3#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
64759ACOVER, SHOCK ABSORBER HEAD
RH,MAROON,RED/MAROON,TRIM3#
RH,GRAY,GRAY,TRIM1#
RH,BLUE,BLUE,TRIM8#
RH,BROWN,BROWN,TRIM4#
LH,MAROON,RED/MAROON,TRIM3#
LH,GRAY,GRAY,TRIM1#
LH,BLUE,BLUE,TRIM8#
LH,BROWN,BROWN,TRIM4#
64760PANEL ASSY, DECK SIDE TRIM, LH
W/O *FFS,MAROON,RED/MAROON,TRIM3#
W/O *FFS,GRAY,GRAY,TRIM1#
W/O *FFS,BLUE,BLUE,TRIM8#
W/O *FFS,BROWN,BROWN,TRIM4#
MAROON,RED/MAROON,TRIM3#
W/*FFS,MAROON,RED/MAROON,TRIM3#
GRAY,GRAY,TRIM1#
W/*FFS,GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
W/*FFS,BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
W/*FFS,BROWN,BROWN,TRIM4#
64770DCOVER ASSY, SPARE WHEEL
W/COMPACT SPARE TIRE
W/O COMPACT SPARE TIRE
W/COMPACT SPARE TIRE
W/O COMPACT SPARE TIRE
9011906126
main90119-06126
9011906208
main90119-06208
9015960121
main90159-60121
9020610046
main90206-10046
9352055012
main93520-55012
9356054012
main93560-54012
9356054014
main93560-54014
9356614512
main93566-14512
35 parts on this diagram · 1 diagram in section
DECK BOARD & DECK TRIM COVER for Toyota SPRINTER
This section contains 35 genuine Toyota parts for the DECK BOARD & DECK TRIM COVER system of the Toyota SPRINTER. Key components include: STRIKER, LUGGAGE HOLD BELT, GRILLE SUB-ASSY, REAR SPEAKER, RH, GRILLE SUB-ASSY, REAR SPEAKER, LH, COVER, DECK TRIM SIDE JACK, KNOB, DECK TRIM SIDE JACK COVER.
