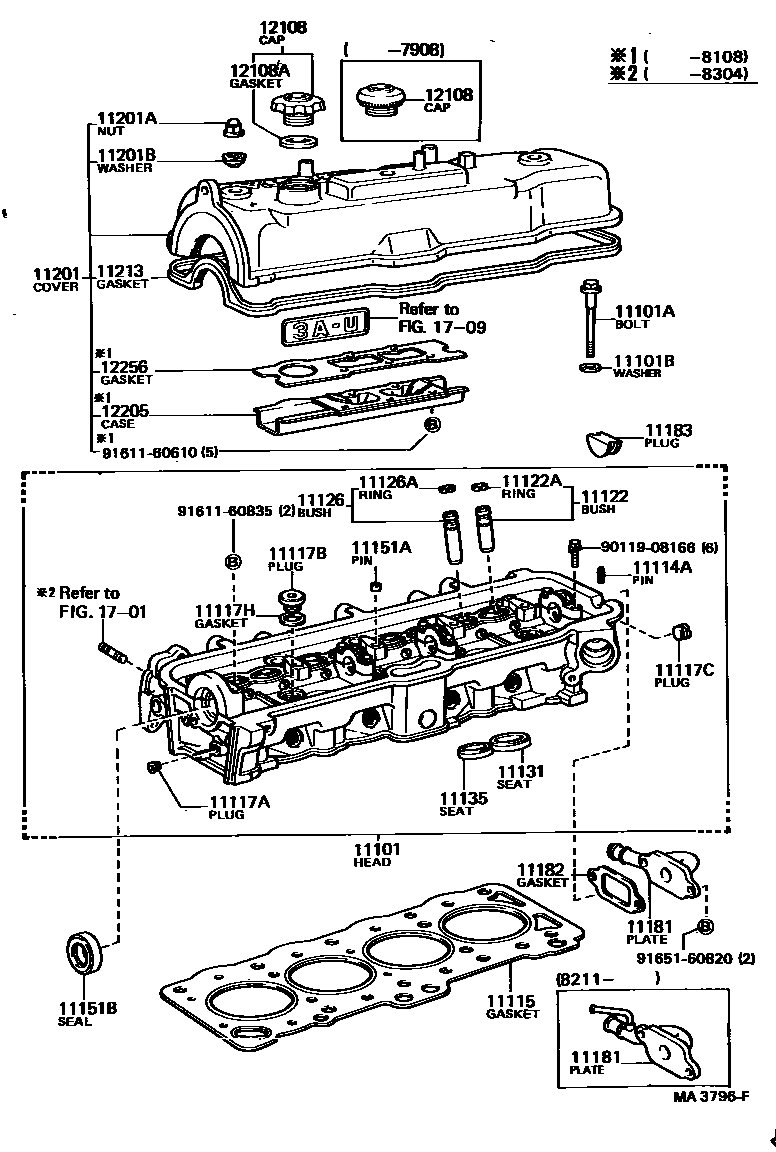

Toyota SPRINTER — CYLINDER HEAD
11101HEAD SUB-ASSY, CYLINDER
sub11101-13062
sub11101-15031
sub11101-18010
sub11101-15020
sub13715-24013
sub11101-29296
sub16261-64011
11101ABOLT(FOR CYLINDER HEAD SET)
*12-1.25PX146-22
*11-1.25PX123-30
*11-1.25PX145-30
*10-1.25PX97.5-22
*10-1.25PX100-20
11101BWASHER, PLATE(FOR CYLINDER HEAD SET)
11114APIN, STRAIGHT
L=8,OD=3.15
11117APLUG, W/HEAD TAPER SCREW, NO.1
11117BPLUG, W/HEAD TAPER SCREW, NO.2
11117CPLUG, W/HEAD TAPER SCREW, NO.3
11117HGASKET(FOR WATER HOLE)
PNC 11118A
PNC 11118A
PNC 11118C
PNC 11118B
11122BUSH, INTAKE VALVE GUIDE
STD
O/S 0.05
11122ARING, SHAFT SNAP (FOR VALVE GUIDE BUSH)
11126BUSH, EXHAUST VALVE GUIDE
STD
O/S 0.05
11126ARING, SHAFT SNAP(FOR VALVE GUIDE BUSH)
11151APIN, RING(FOR CAMSHAFT BEARING CAP SETTING)
11151BSEAL, OIL(FOR CAMSHAFT SETTING)
sub90311-35008
11183PLUG, SEMICIRCULAR
11201ANUT, CAP(FOR CYLINDER HEAD COVER)
12108AGASKET(FOR OIL FILLER CAP)
12205CASE SUB-ASSY, VENTILATION
12256GASKET, VENTILATION BAFFLE
1701
1709
9011908166
main90119-08166
9161160610
main91611-60610
9161160835
main91611-60835
9165160820
main91651-60820
34 parts on this diagram · 7 diagrams in section
