Toyota SPRINTER — CYLINDER HEAD

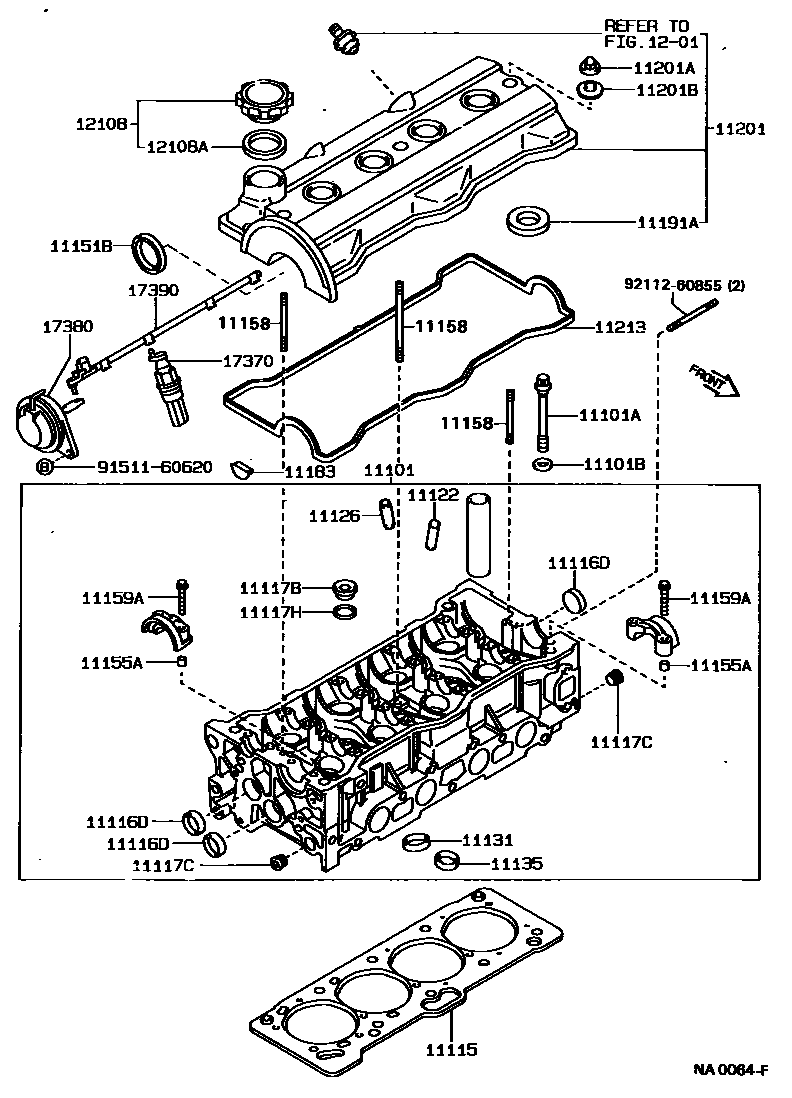

Parts diagram
11101HEAD SUB-ASSY, CYLINDER
main11101-16030i198705-198905
main11101-16110i198905-199106
main11101-19156i198705-199108
main11101-19195i198808-199008
sub12329-11020
sub17771-11080
sub17771-11120
sub78184-16050
main11101-19196i199008-199108
main11101-19205i198705-198905
main11101-19215i198908-199008
main11101-19235i198710-198908
main11101-19255i198905-199106
main11101-19265i199008-199106
main11101-64060i198705-198901
main11101-64061i198901-198905
sub11101-64062
sub90201-22010
main11101-64121i198910-199106
sub11101-64122
sub11115-64122
main11101-64141i198908-199108
sub11101-64142
sub90201-22010
11101ABOLT(FOR CYLINDER HEAD SET)
main90105-09002×10i198705-199008
main90105-11018×8i198705-198908
*11-1.25PX123-51.5
main90105-11019×10i198705-198908
*11-1.25PX145-51.5
main90109-10058×5i199008-199106
INTAKE
sub90910-02120
main90109-10059×5i198705-199008
EXHAUST
sub90910-02121
main90910-02097×8i198908-199009
*11-1.25PX130-50
main90910-02099×10i199009-199108
*11-1.25PX152-50
main90910-02101×10i199008-199108
11101BWASHER, PLATE(FOR CYLINDER HEAD SET)
main90201-09015×10i199008-199108
main90201-09024×10i199008-199108
main90201-10344×10i199008-199106
main90201-12222×18i198705-199108
11115GASKET, CYLINDER HEAD
main11115-11010i198908-199108
main11115-15071i198705-198905
main11115-15072i198905-199106
sub11115-15073
main11115-16070i198705-199106
main11115-16081i198808-198809
main11115-16082i198809-199008
main11115-64070i198705-198905
main11115-64100i198910-199009
main11115-64110i198905-199108
main11115-64120i199009-199101
main11115-64121i199101-199106
sub11115-64122
11116DPLUG, TIGHT, NO.4
main96411-42800×3i198705-198905
11117BPLUG, W/HEAD TAPER SCREW, NO.2
main90341-20002×2i198705-198905
11117CPLUG, W/HEAD TAPER SCREW, NO.3
main90344-53005×2i198705-198908
11117HGASKET(FOR WATER HOLE)
main90430-10204×4i198908-199108
main90430-12010×2i198705-198908
main90430-20004×2i198905-198908
main90430-24007×3i198705-199106
main90430-33133×2i198705-199106
11122BUSH, INTAKE VALVE GUIDE
main11122-10040×8i198705-199108
main11122-15030×8i199008-199106
main11122-16020×8i198705-199106
main11122-64010×4i198705-199108
main11123-10040×8i198705-199108
main11123-15030×8i198908-199008
main11123-16020×8i198705-199106
main11123-64010×4i198705-199108
11126BUSH, EXHAUST VALVE GUIDE
main11122-10040×4i198705-199108
main11122-15030×8i199008-199106
main11122-16020×8i198705-199106
main11123-10040×4i198705-199108
main11123-15030×8i198905-198908
main11123-16020×8i198705-199106
main11126-64010×4i198705-199106
sub11126-64030
main11127-64010×4i198705-199106
sub11127-64030
11131SEAT, INTAKE VALVE
main11131-10020×4i198705-199108
main11131-11010×4i198808-199108
main11131-15030×8i198705-198905
main11131-15040×8i199008-199106
main11131-16010×8i198705-199106
main11132-10020×4i198705-199108
main11132-11010×4i198808-199108
main11132-15030×8i198705-198905
main11132-15040×8i198705-198905
main11132-16010×8i198705-199106
main11137-10010×4i198705-199108
main11137-11020×4i198808-199108
main11138-10010×4i198705-199108
main11138-11020×4i198808-199108
11135SEAT, EXHAUST VALVE
main11135-10020×4i198705-199108
main11135-11010×4i198808-199108
main11135-15030×8i199008-199106
main11135-16010×8i198705-199106
main11136-10020×4i198705-199108
main11136-11010×4i198808-199108
main11136-15030×8i198905-198908
main11136-16010×8i198705-199106
11151BSEAL, OIL(FOR CAMSHAFT SETTING)
main90311-35008i198908-198911
main90311-35013i199008-199106
ARS
main90311-35017i198705-198908
main90311-35022i199001-199008
sub90311-35040
main90311-35025i198911-199001
11155APIN, RING W/HEAD
main90253-09001×4i198705-199106
main90253-11021×4i198705-199108
11158BOLT, STUD(FOR HEAD TO CYLINDER HEAD COVER)
main90109-06079×8i198705-199106
main90116-06073i198905-198908
main90116-06074×2i198908-199008
11159BOLT, STUD(FOR HEAD TO CAMSHAFT BEARING CAP)
main90116-06023×6i198705-198908
11159ABOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
main90109-06080×22i198705-198905
11183PLUG, SEMICIRCULAR
main11183-15020i198705-199008
main11183-64010i198705-199108
11191AGASKET(FOR SPARK PLUG TUBE)
main11193-15010×4i198705-199008
11201COVER SUB-ASSY, CYLINDER HEAD
main11201-10010i198705-199108
main11201-15900i198705-198711
main11201-64050i198705-199108
main11201-64080i198910-199106
main11210-15050i198711-199008
main11210-16090i198705-198810
main11210-16100i198711-199008
main11210-16110i198810-198905
main11210-16140i198705-198810
main11210-16160i198908-199106
RH
main11212-16010i198705-198810
main11212-16050i198810-199106
11201ANUT, CAP(FOR CYLINDER HEAD COVER)
main90176-06008×3i198705-198908
main90176-06012×8i198705-199106
main90176-08007×2i198705-199108
11201BWASHER, SEAL(FOR CYLINDER HEAD COVER)
main90210-06008×8i198705-199106
sub90210-06013
main90210-08020×3i199008-199106
main90210-09001×2i198705-199108
sub90210-09019
11213GASKET, CYLINDER HEAD COVER
main11213-10010i198705-199106
main11213-10011i199106-199108
main11213-15050i199008-199106
main11213-16010×2i198705-199106
main11213-64020i198705-199101
main11213-64040i199101-199108
main11213-64050i198910-199106
1201
12108CAP SUB-ASSY, OIL FILLER
main12180-11020i198708-199103
main12180-11021i199103-199108
sub12180-73011
main12180-13030i199008-199108
main12180-55010i198910-199106
main12180-61010i198705-198708
sub12180-70020
main12180-62010i198705-198905
sub12180-62011
12108AGASKET(FOR OIL FILLER CAP)
main12195-71020i198705-199108
main90430-37004i198910-199106
main90430-37140i198908-199008
17370VALVE ASSY, SWIRL CONTROL
main17370-15020×4i198705-198905
17380ACTUATOR ASSY, SWIRL CONTROL
main17380-15030i198705-198905
17390LINK ASSY, SWIRL CONTROL
main17390-15030i198705-198905
9151160620
main91511-60620
9211260855
main92112-60855

31 parts on this diagram · 4 diagrams in section
