Toyota SPRINTER — CRUISE CONTROL (AUTO DRIVE)

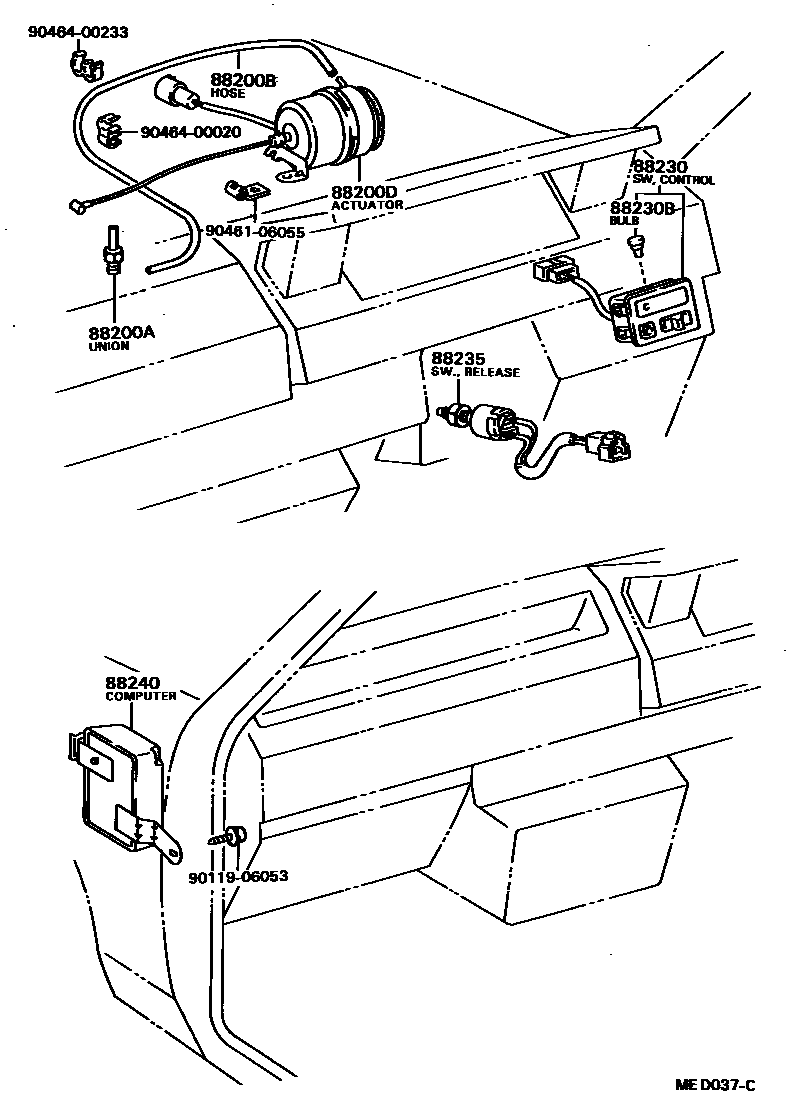

Parts diagram

88200AUNION OR WAY, CRUISE CONTROL VACUUM

main90404-51010i198305-198704

88200BHOSE, CRUISE CONTROL VACUUM

main95411-19960i198305-198704

main95411-19995i198410-198704

88200DACTUATOR ASSY, CRUISE CONTROL

main88200-12020i198305-198704

88230SWITCH ASSY, CRUISE CONTROL(AUTO DRIVE) CONTROL

main84630-12020i198505-198704

main88230-22040i198305-198401

main88230-22061i198401-198505

88230BBULB, CRUISE CONTROL(AUTO DRIVE) CONTROL SWITCH

main84999-10170i198505-198704

main90981-11014×2i198401-198505

88235SWITCH ASSY, CRUISE CONTROL(AUTO DRIVE) RELEASE

main88280-35010i198305-198704

88240COMPUTER ASSY, CRUISE CONTROL

main88240-12030i198305-198308

main88240-12031i198308-198401

main88240-12032i198401-198410

main88240-12070i198410-198505

main88240-12080i198505-198704

9011906053

main90119-06053

9046106055

main90461-06055

9046400020

main90464-00020

9046400233

main90464-00233

11 parts on this diagram · 1 diagram in section

CRUISE CONTROL (AUTO DRIVE) for Toyota SPRINTER

This section contains 11 genuine Toyota parts for the CRUISE CONTROL (AUTO DRIVE) system of the Toyota SPRINTER. Key components include: UNION OR WAY, CRUISE CONTROL VACUUM, HOSE, CRUISE CONTROL VACUUM, ACTUATOR ASSY, CRUISE CONTROL, SWITCH ASSY, CRUISE CONTROL(AUTO DRIVE) CONTROL, BULB, CRUISE CONTROL(AUTO DRIVE) CONTROL SWITCH.
