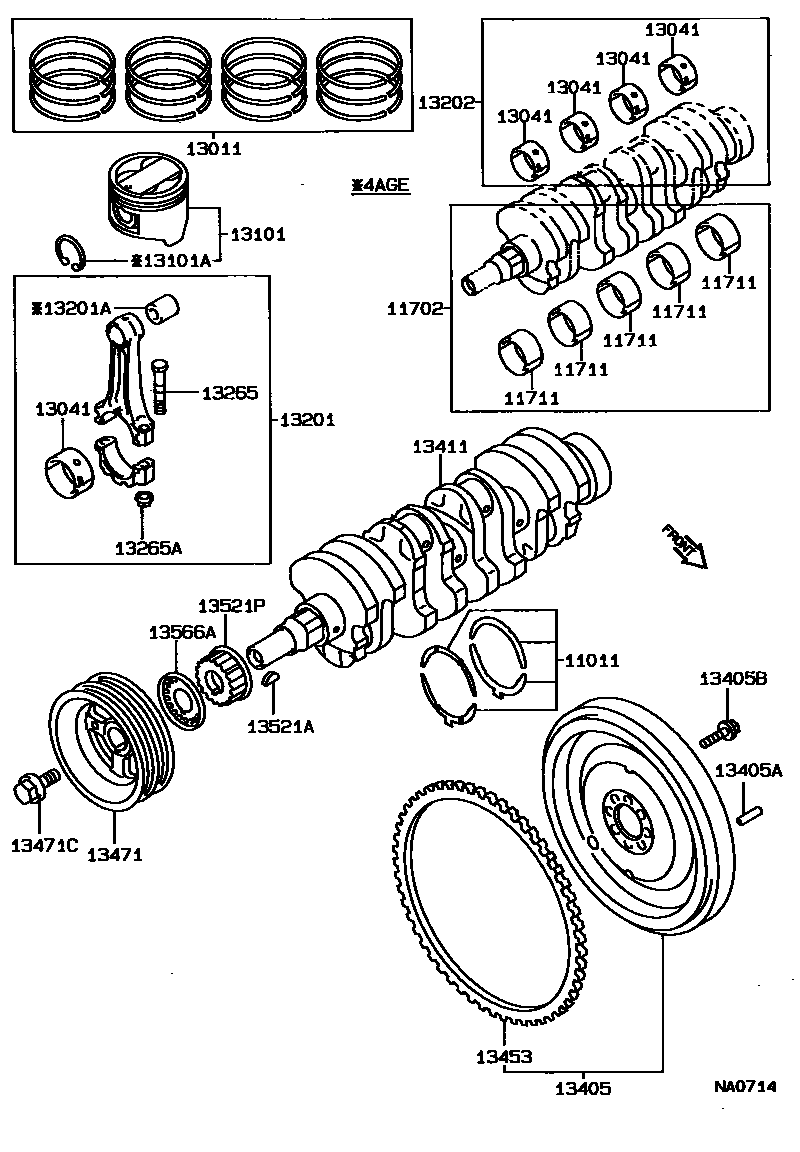

Toyota SPRINTER — CRANKSHAFT & PISTON

0001 1 0002 1 0003 1 0004 1

11011WASHER SET, CRANKSHAFT THRUST

main11011-10010i2E..EE90,96198705-199108

main11011-11010i3E..EE98198808-199108

main11011-15010i4AGE,4AF#,5AF#..AE9#198705-199008

sub11011-15020

main11011-64010i1C,2C..CE9#198705-199108

main11012-10010i2E..EE90198705-198808

main11012-10020i2E..EE90,96198808-199108

main11012-11010i3E..EE98198808-199108

main11012-64010i1C,2C..CE9#198705-199108

main11013-64010i1C,2C..CE9#198705-199108

11702BEARING SET, CRANKSHAFT

main11704-10010i2E..EE90,96198908-198912

main11704-10011i2E..EE90,96198912-199108

sub11704-10012

main11704-11010i3E..EE98198808-198912

main11704-11011i3E..EE98198912-199108

sub11704-11012

main11704-15050i4AGE,4AF#,5AF#..AE9#198705-198808

main11704-16010i4A#,5AF#..AE9#..4D,5D199008-199106

main11704-64040i1C,2C..CE9#199008-199108

sub11704-64070

main11704-64050i1C,2C..CE9#198705-199008

11711BEARING, CRANKSHAFT

main11701-10010-01×5i2E..EE90,96198705-198908

MARK 1

main11701-10010-02×5i2E..EE90,96198705-198908

MARK 2

main11701-10010-03×5i2E..EE90,96198908-198912

MARK 3

main11701-10011-01×5i2E..EE90,96198912-199108

MARK 1

sub11701-10012

main11701-10011-02×5i2E..EE90,96198912-199108

MARK 2

sub11701-10012

main11701-10011-03×5i2E..EE90,96198912-199108

MARK 3

sub11701-10012

main11701-11010-01×5i3E..EE98198808-198912

MARK 1

main11701-11010-02×5i3E..EE98198808-198912

MARK 2

main11701-11010-03×5i3E..EE98198808-198912

MARK 3

main11701-11010-04×5i3E..EE98198808-198912

MARK 4

main11701-11010-05×5i3E..EE98198808-198912

MARK 5

main11701-11011-01×5i3E..EE98198912-199108

MARK 1

sub11701-11012

main11701-11011-02×5i3E..EE98198912-199108

MARK 2

sub11701-11012

main11701-11011-03×5i3E..EE98198912-199108

MARK 3

sub11701-11012

main11701-11011-04×5i3E..EE98198912-199108

MARK 4

sub11701-11012

main11701-11011-05×5i3E..EE98198912-199108

MARK 5

sub11701-11012

main11701-15050-01×5i4AGE,4AF#,5AF#..AE9#198705-198808

MARK 1

main11701-15050-02×5i4AGE,4AF#,5AF#..AE9#198705-198808

MARK 2

main11701-15050-03×5i4AGE,4AF#,5AF#..AE9#198705-198808

MARK 3

main11701-15050-04×5i4AGE,4AF#,5AF#..AE9#198705-198808

MARK 4

main11701-15050-05×5i4AGE,4AF#,5AF#..AE9#198705-198808

MARK 5

main11701-16010-01×5i4A#,5AF#..AE9#198905-199008

MARK 1

main11701-16010-02×5i4A#,5AF#..AE9#198905-199008

MARK 2

main11701-16010-03×5i4AF#,5AF#..AE91,95198808-198905

MARK 3

main11701-16010-04×5i4A#,5AF#..AE9#..4D,5D199008-199106

MARK 4

main11701-16010-05×5i4AF#,5AF#..AE91,95198808-198905

MARK 5

main11701-64040-01×5i1C,2C..CE9#199008-199108

MARK 1

sub11701-64070

main11701-64040-02×5i1C,2C..CE9#199008-199108

MARK 2

sub11701-64070

main11701-64040-03×5i1C,2C..CE9#199008-199108

MARK 3

sub11701-64070

main11701-64050-01×5i1C,2C..CE9#198705-199008

MARK 1

main11701-64050-02×5i1C,2C..CE9#198705-199008

MARK 2

main11701-64050-03×5i1C,2C..CE9#198705-199008

MARK 3

13011RING SET, PISTON

main13011-11041i2E..EE90,96198705-199103

main13011-11042i2E..EE90,96199103-199108

sub13011-11043

main13011-11090i3E..EE98198808-199108

main13011-15050i5AF#..AE91198705-199106

main13011-16120i4AF#..AE95198710-199106

sub13011-16130

main13011-16160i4AGE..AE92198905-199103

main13011-16170i4AGE..AE92198705-198905

main13011-16200i4AGE..AE92199103-199106

main13011-64130i1C..CE9#198705-198905

main13011-64190i2C..CE95198910-199106

main13011-64220i1C..CE90198905-199106

main13013-11041i2E..EE90,96198705-199103

main13013-11042i2E..EE90,96199103-199108

sub13013-11043

main13013-11090i3E..EE98198808-199108

main13013-15050i5AF#..AE91198705-199106

main13013-16120i4AF#..AE95198710-199106

sub13013-16130

main13013-16160i4AGE..AE92198905-199103

main13013-16170i4AGE..AE92198705-198905

main13013-16200i4AGE..AE92199103-199106

main13013-64130i1C..CE96198905-199108

main13013-64190i2C..CE95198910-199106

main13013-64220i1C..CE90198905-199106

13041BEARING, CONNECTING ROD

main13041-10020-01×4i2E..EE90,96198705-199108

MARK 1

main13041-10020-02×4i2E..EE90,96198705-199108

MARK 2

main13041-10020-03×4i2E..EE90,96198705-199108

MARK 3

main13041-11010-01×4i3E..EE98198808-199108

MARK 1

main13041-11010-02×4i3E..EE98198808-199108

MARK 2

main13041-11010-03×4i3E..EE98198808-199108

MARK 3

main13041-15030-01×4i4AF#,5AF#..AE91,95198705-199008

MARK 1

sub13041-15031

main13041-15030-02×4i4AF#,5AF#..AE91,95198705-199008

MARK 2

sub13041-15031

main13041-15030-03×4i4AF#,5AF#..AE91,95198705-199008

MARK 3

sub13041-15031

main13041-16070-01×4i4AGE..AE92198905-199106

MARK 1

sub13041-16071

main13041-16070-02×4i4AGE..AE92198705-198905

MARK 2

sub13041-16071

main13041-16070-03×4i4AGE..AE92198905-199106

MARK 3

sub13041-16071

main13041-64041-01×4i1C,2C..CE9#199008-199108

MARK 1

sub13041-64070

main13041-64041-02×4i1C,2C..CE9#199008-199108

MARK 2

sub13041-64070

main13041-64041-03×4i1C,2C..CE9#199008-199108

MARK 3

sub13041-64070

main13041-64050-01×4i1C,2C..CE9#198705-199008

MARK 1

main13041-64050-02×4i1C,2C..CE9#198705-199008

MARK 2

main13041-64050-03×4i1C,2C..CE9#198705-199008

MARK 3

13101PISTON SUB-ASSY, W/PIN

main13101-11030×4i2E..EE90198705-198801

main13101-11030-01×4i2E..EE90,96198801-198911

main13101-11030-02×4i2E..EE90,96198801-198911

main13101-11030-03×4i2E..EE90,96198801-198911

main13101-11031-01×4i2E..EE90,96198911-199108

sub13101-11090

main13101-11031-02×4i2E..EE90,96198911-199108

sub13101-11090

main13101-11031-03×4i2E..EE90,96198911-199108

sub13101-11090

main13101-11080-01×4i3E..EE98198808-198911

main13101-11080-02×4i3E..EE98198808-198911

main13101-11080-03×4i3E..EE98198808-198911

main13101-11081-01×4i3E..EE98198911-199108

main13101-11081-02×4i3E..EE98198911-199108

main13101-11081-03×4i3E..EE98198911-199108

main13101-15030×4i5AF#..AE91198705-198801

main13101-15030-01×4i5AF,5AFE..AE91198801-199107

main13101-15030-02×4i5AF,5AFE..AE91198801-199107

main13101-15030-03×4i5AF,5AFE..AE91198801-199107

main13101-15040-01×4i5AFHE..AE91198905-199107

main13101-15040-02×4i5AFHE..AE91198905-199107

main13101-15040-03×4i5AFHE..AE91198905-199107

main13101-16070×4i4AGE..AE92198705-198802

main13101-16070-01×4i4AGE..AE92198802-198905

main13101-16070-02×4i4AGE..AE92198802-198905

main13101-16070-03×4i4AGE..AE92198802-198905

main13101-16090×4i4AF..AE95198710-198801

sub13101-16110

main13101-16090-01×4i4AF#..AE95198801-199008

sub13101-16110

main13101-16090-02×4i4AF#..AE95198801-199008

sub13101-16110

main13101-16090-03×4i4AF#..AE95198801-199008

sub13101-16110

main13101-16120-01×4i4AGE..AE92198905-199104

main13101-16120-02×4i4AGE..AE92198905-199104

main13101-16120-03×4i4AGE..AE92198905-199104

main13101-16121-01×4i4AGE..AE92199104-199106

main13101-16121-02×4i4AGE..AE92199104-199106

main13101-16121-03×4i4AGE..AE92199104-199106

main13101-64100×4i1C..CE90198705-198801

main13101-64100-01×4i1C..CE9#198801-198905

main13101-64100-02×4i1C..CE9#198801-198905

main13101-64100-03×4i1C..CE9#198801-198905

main13101-64110-01×4i2C..CE95198910-199106

main13101-64110-02×4i2C..CE95198910-199106

main13101-64110-03×4i2C..CE95198910-199106

main13101-64130-01×4i1C..CE90198905-198908

main13101-64130-02×4i1C..CE90198905-198908

main13101-64130-03×4i1C..CE90,96198908-199108

main13103-11030×4i2E..EE90,96198705-198911

main13103-11031×4i2E..EE90,96198911-199108

sub13103-11090

main13103-11080×4i3E..EE98198808-198911

main13103-11081×4i3E..EE98198911-199108

main13103-15030×4i5AF,5AFE..AE91198705-199107

main13103-15040×4i5AFHE..AE91198905-199107

main13103-16070×4i4AGE..AE92198705-198905

main13103-16090×4i4AF#..AE95198710-199008

sub13103-16110

main13103-16120×4i4AGE..AE92198905-199104

main13103-16121×4i4AGE..AE92199104-199106

main13103-64100×4i1C..CE96198905-198908

main13103-64110i2C..CE95198910-199106

main13103-64130×4i1C..CE90198905-198908

13101ARING, HOLE SNAP(FOR PISTON PIN)

main90521-23003×8i4AGE..AE92199104-199106

main90521-23005×8i4AGE..AE92198705-199104

main90521-29003×2i2C..CE95198910-199106

13201ROD SUB-ASSY, CONNECTING

main13201-19055×4i4AF#,5AF#..AE91,95198705-199106

sub13201-19056

main13201-19075×4i2E..EE90,96198705-199108

sub13201-19076

main13201-19085×4i3E..EE98198808-199001

main13201-19086×4i3E..EE98199001-199004

main13201-19087×4i3E..EE98199004-199108

sub13201-19088

main13201-19095×4i4AGE..AE92198705-199102

sub13201-19096

main13201-19125×4i4AGE..AE92199102-199106

sub13201-19126

main13201-69065×4i1C,2C..CE9#198705-199008

sub13201-69135

main13201-69115×4i1C,2C..CE9#199008-199108

sub13201-69076

13201ABUSH(FOR CONNECTING ROD SMALL END)

main90999-73102×4i1C,2C..CE9#198705-199108

sub90999-73138

main90999-73111×4i4AGE..AE92198705-199106

13202BEARING SET, CONNECTING ROD

main13204-10020i2E..EE90,96198705-199108

main13204-11010i3E..EE98198808-199108

main13204-15030i4AF#,5AF#..AE91,95198705-199008

sub13204-15031

main13204-16070i4AGE..AE92198905-199106

sub13204-16071

main13204-64041i1C,2C..CE9#199008-199108

sub13204-64070

main13204-64050i1C,2C..CE9#198705-199008

13265BOLT, CONNECTING ROD

main13265-10020×8i2E..EE90,96199004-199108

sub13265-10022

main13265-10021×8i3E..EE98199004-199108

sub13265-10022

main13265-15020×8i4AGE,5AF#..AE9#198705-198708

main13265-16010×8i4AGE,4AF#,5AF#..AE9#198708-199008

main13265-49015×8i1C,2C..CE9#198705-199108

13265ANUT, HEXAGON(FOR CONNECTING ROD BOLT)

main90170-09001×8i4AGE,5AF#..AE9#198705-198708

main90170-09003×8i4AGE..AE92198708-199106

main90179-08014×8i2E,3E..EE9#198705-199108

main90179-10042×8i1C,2C..CE9#198705-199108

13405FLYWHEEL SUB-ASSY

main13405-11030i2E..EE90,96..4F198705-198901

main13405-11031i2E..EE90,96..4F198901-199108

main13405-11040i3E..EE98..MTM198808-198901

main13405-11041i3E..EE98..MTM198901-199108

main13405-15030i5AF..AE91..MTM198705-198905

main13405-16010i5AFE,5AFHE..AE91..MTM198705-199106

main13405-16030i4AGE..AE92..5F198905-199106

main13405-16060i4AF#..AE95..5F198710-199008

main13405-19145i4AGE..AE92..5F198705-198905

main13405-64020i1C..CE90,96..5F198705-199108

main13405-64070i2C..CE95198910-199106

13405APIN, STRAIGHT(FOR FLYWHEEL)

main90250-08054×3i1C,2C..CE9#..5F198705-199108

main90250-08120×3i4A#,5AF#..AE9#..(4D,5D)..MTM199008-199108

13405BBOLT, FLYWHEEL SETTING

main90105-10042×6i4AF#,5AF#..AE91,95..MTM198705-199008

main90105-10071×8i1C,2C..CE9#..5F198705-199108

main90105-10076×8i4AGE..AE92..5F198705-199106

main90105-10138×6i2E,3E..EE9#..MTM198705-199108

13411CRANKSHAFT

main13401-11020i2E..EE90,96198801-198908

main13401-11040i3E..EE98198808-199108

main13401-11050i2E..EE90,96198910-199108

sub13401-11051

main13401-16020i4AGE..AE92198705-199106

main13411-11020i2E..EE90198705-198801

main13411-15040i4AFE,5AF#..AE91,95198908-199008

sub13411-15050

main13411-64900i1C..CE96198905-198908

main13411-64901i1C,2C..CE9#199104-199108

sub13411-64904

13453GEAR, FLYWHEEL RING

main13453-10010i4A#,5AF#..AE9#..(4D,5D)..MTM199008-199106

main13453-10030i2E,3E..EE9#..MTM198705-199108

main13453-64011i1C..CE90,96..5F198705-199108

main13453-64050i2C..CE95198910-199106

13471PULLEY, CRANKSHAFT

main13408-11011i2E..EE90198705-198706

TOYODA KOUKI

main13408-11012i2E,3E..EE9#198706-199108

sub13470-11030

main13408-11020i2E..EE90198705-198706

main13408-64031i1C..CE9#198705-198905

main13408-64060i1C..CE90198905-198908

main13470-15070i4AF#,5AF#..AE91,95198705-198803

main13470-15080i4AF#,5AF#..AE91,95198803-198905

main13470-15100i4AFE,5AF#..AE91,95..4D,5D199008-199106

sub13470-15101

sub90119-12230

main13470-16030i4AGE..AE92198705-199106

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

main90105-12051i2E,3E..EE9#198705-199108

main90105-14077i1C,2C..CE9#199006-199105

main90105-14089i1C,2C..CE9#199105-199108

main90119-12101i4AF,5AF..AE91,95198705-198905

main90119-12127i4AGE..AE92198705-199106

main91511-61435i1C,2C..CE9#198705-199006

13521AKEY(FOR CRANKSHAFT TIMING GEAR)

main90280-05010i2E,3E..EE9#198901-198908

main95161-20519i4AGE..AE92199008-199106

main95161-20622i1C,2C..CE9#198705-199108

sub95161-30622

13521PPULLEY, CRANKSHAFT TIMING

main13521-11010i2E,3E..EE9#198705-199108

main13521-15010i4AFE,5AF#..AE91,95..4D,5D199008-199106

main13521-16010i4AGE..AE92198705-199106

main13521-64010i1C..CE9#198705-198908

main13521-64011i1C,2C..CE9#199105-199108

13566AGUIDE, TIMING BELT

main13566-10011i2E,3E..EE9#198705-199108

main13566-15010i4AGE,4AF#,5AF#..AE9#198705-199008

main13566-64010i1C,2C..CE9#198705-199102

main13566-64011i1C,2C..CE9#199102-199108

22 parts on this diagram · 4 diagrams in section
