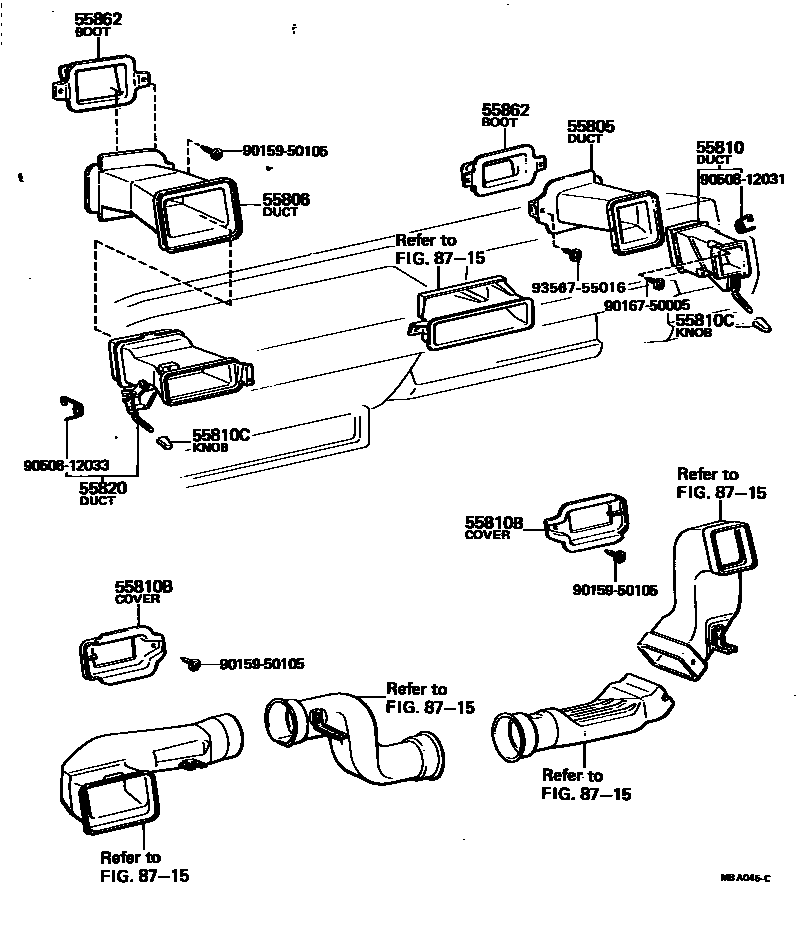

Toyota SPRINTER — COWL VENTILATOR

0001 1 0002 1

55805DUCT SUB-ASSY, SIDE VENTILATOR, NO.2 RH

main55841-12090iAE70,CE70,KE70,TE7#..4D197903-198304

main55841-12100iAE70,KE70,TE7#..2D197903-198304

55806DUCT SUB-ASSY, SIDE VENTILATOR, NO.2 LH

main55842-12090iAE70,CE70,KE70,TE7#..4D197903-198304

main55842-12100iAE70,KE70,TE7#..2D197903-198304

55810DUCT ASSY, SIDE VENTILATOR, RH

main55830-12040iAE70,CE70,KE70,TE7#..4D197903-198304

main55830-12050iAE70,KE70,TE7#..2D197903-198304

55810BCOVER, SIDE VENTILATOR

main55877-12040iAE70,KE70,TE7#..2D197903-198304

RH

main55877-12050×2iAE70,CE70,KE70,TE7#..4D197903-198304

main55878-12030iAE70,KE70,TE7#..2D197903-198304

LH

55810CKNOB SUB-ASSY, CONTROL(FOR VENTILATOR DUCT)

main55905-12050×2iAE70,CE70,KE70,TE7#197903-198304

sub55905-20230

sub55905-35090

55820DUCT ASSY, SIDE VENTILATOR, LH

main55840-12040iAE70,CE70,KE70,TE7#..4D197903-198304

main55840-12050iAE70,KE70,TE7#..2D197903-198304

55862BOOT, SIDE VENTILATOR

main55863-12020iAE70,CE70,KE70,TE7#..4D197903-198304

RH

main55863-12030iAE70,KE70,TE7#..2D197903-198304

RH

main55864-12020iAE70,CE70,KE70,TE7#..4D197903-198304

LH

main55864-12030iAE70,KE70,TE7#..2D197903-198304

LH

8715

9015950105

main90159-50105

9016750005

main90167-50005

9050812031

main90508-12031

9050812033

main90508-12033

9356755016

main93567-55016

13 parts on this diagram · 2 diagrams in section
