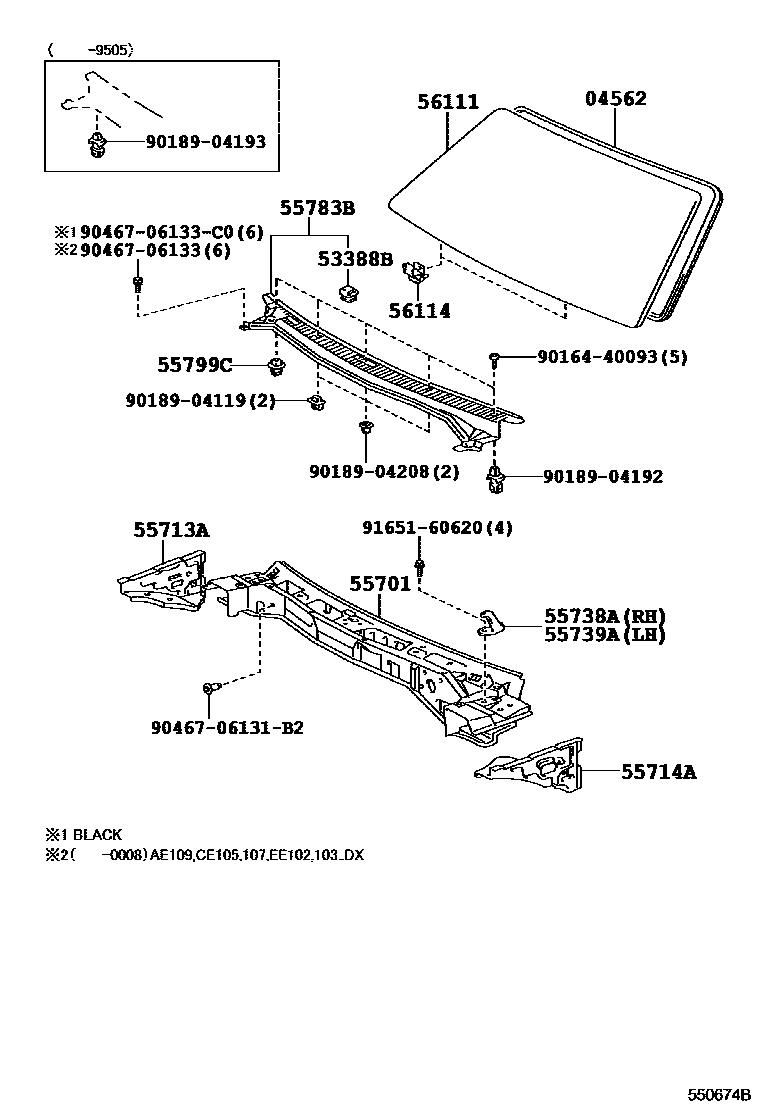

Toyota SPRINTER — COWL PANEL & WINDSHIELD GLASS

04562DAM KIT, WINDSHIELD GLASS

main04562-12010iAE10#,CE10#,EE10#..CTD,DX,DXJ,L,LX,SEG,SEL,XE,XL199402

53388BCUSHION, HOOD, REAR

main53388-12040iAE10#,CE10#,EE10#199106

55701PANEL SUB-ASSY, COWL

main55700-12781iAE10#..DX,LX,SEG,SEL,XE199412

main55700-12801iAE101,EE10#..DX,DXJ,GT,L,LX,XE,XL199412-199704

sub90179-06107

main55700-12902iAE100,101..DX,LX,SEG,SEL,XE199106-199412

main55700-12903iAE104,EE106,107,108199109-199412

main55700-12904iCE10#199106-199305

main55700-12905iAE101..GT199106-199412

main55700-12906iEE101,102,103,104199106-199412

main55700-1A030iCE100,104199305-199401

main55700-1A031iCE10#199412-199704

55713APANEL, COWL TOP SIDE, RH

main55713-12080iCE106,108,109,EE102,103,104,106,107,108199109-199505

sub90467-07166

main55713-12081iAE109,CE10#,EE10#199505

main55713-12090iAE10#,CE100,104,EE101199106-199505

sub55713-12091

sub90467-07166

55714APANEL, COWL TOP SIDE, LH

main55714-12080iCE106,108,109,EE102,103,104,106,107,108199109-199505

sub90467-07166

main55714-12081iAE109,CE10#,EE10#199505

main55714-12090iAE10#,CE100,104,EE101199106-199505

sub55714-12091

sub90467-07166

55738ASTOPPER, HOOD, RH

main55738-12090iAE10#,CE10#,EE10#199106

55739ASTOPPER, HOOD, LH

main55739-12050iAE10#,CE10#,EE10#199106

55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1

main55708-12080iAE10#,CE10#,EE10#199106

main55708-12090iAE10#,CE10#,EE10#199106

55799CCLIP, COWL TOP VENTILATOR LOUVER

main55799-12010iAE109,CE10#,EE10#199505

56111GLASS, WINDSHIELD

main56111-1A440iAE109,CE106,108,109,EE102,103,104,106,107,108..CTD,DX,DXJ,L199109-199705

sub56111-1A470

main56111-1A460iCE106,108,109,EE103,104,107,108..L,XL199109-199704

sub56111-1A470

main56111-1A530iAE100,104,CE100,104,EE101..DX,LX199106-199205

main56111-1A540iAE10#,CE100,104..SEG,SEL199205-199505

main56111-1A550iAE10#,CE100,104..GT,SEG,SEL199205-199402

main56111-1A680iAE100,104,CE100,104..SEL199312-199504

main56111-1A770iAE109,CE10#,EE10#199704

56114RETAINER, WINDSHIELD GLASS

main56110-12010×2iAE10#,CE10#,EE10#199106-199402

9016440093

main90164-40093

9018904119

main90189-04119

9018904192

main90189-04192

9018904193

main90189-04193

9018904208

main90189-04208

9046706131B2

main90467-06131B2

9046706133

main90467-06133

9046706133C0

main90467-06133C0

9165160620

main91651-60620

20 parts on this diagram · 1 diagram in section
