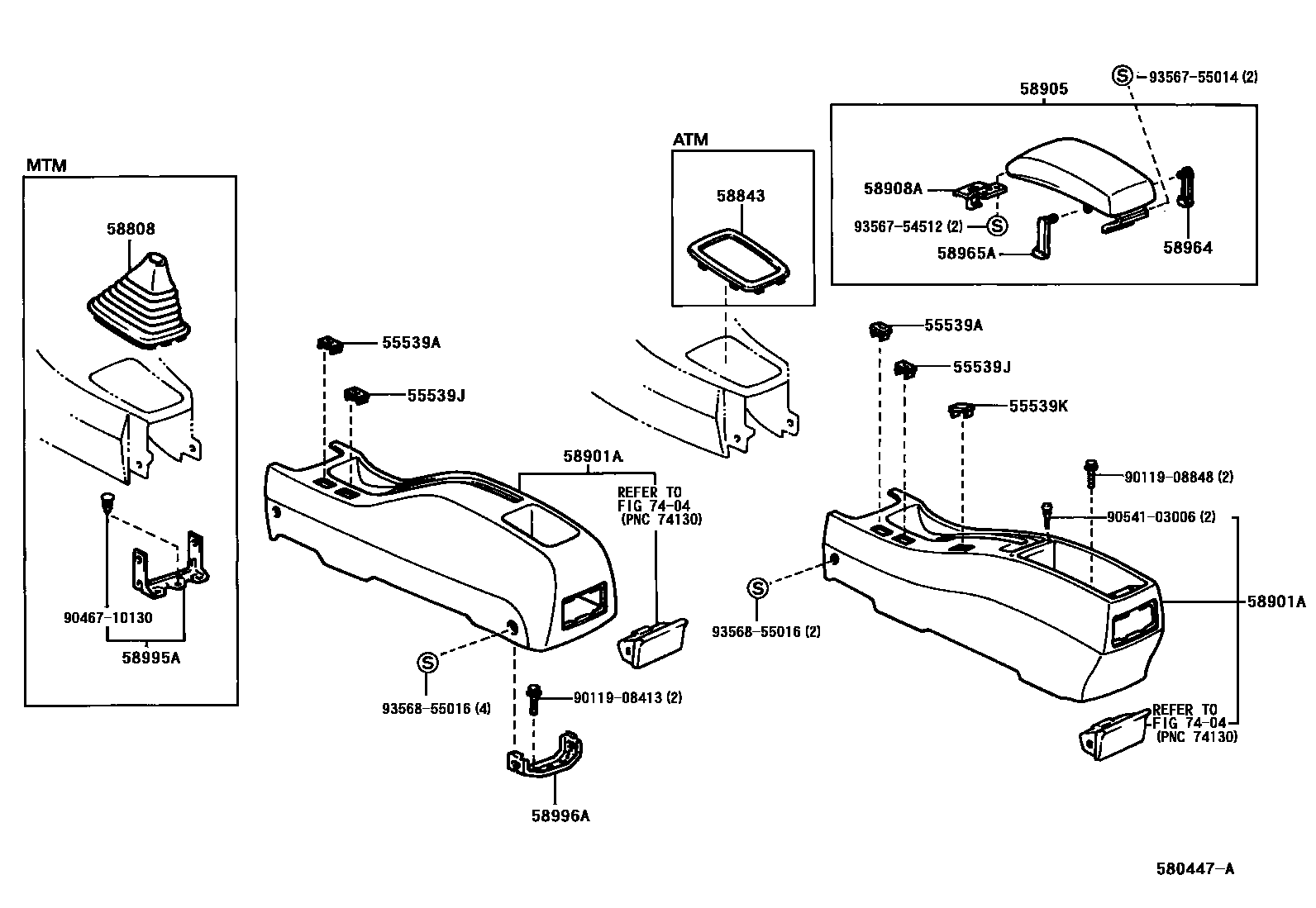

Toyota SPRINTER — CONSOLE BOX & BRACKET

55539ACOVER, SPARE SWITCH HOLE

main55539-20020-B2iAE110,114,CE11#,EE111..LX199704-199804

MD.GRAY,TRIM1#

main55539-20020-B4iAE110,114,CE11#,EE111199804-200008

MD.CHARCOAL,TRIM1#

main55539-20020-E2iAE110,114,CE11#,EE111..SEVIN,XEVIN199505-199704

OAK,TRIM4#

main55539-20020-P0iAE111..6F199704-200008

SHADOW GRAY,TRIM1#

55539JCOVER, SPARE SWITCH HOLE

main55539-12120-B0iAE111..6F199704-200008

SHADOW GRAY,TRIM1#

sub55539-32010

main55539-12120-B2iAE110,114,CE11#,EE111..SEVIN,XEVIN199704-199804

MD.CHARCOAL,TRIM14

sub55539-32010

main55539-12120-B3iAE110,114,CE11#,EE111..LX199704-199804

MD.GRAY,TRIM1#

sub55539-32010

main55539-12120-E2iAE110,114,CE11#,EE111..SEVIN,XEVIN199505-199704

OAK,TRIM4#

sub55539-32010

main55539-20020-P0iAE111..4FC199704-200008

SHADOW GRAY,TRIM1#

55539KCOVER, SPARE SWITCH HOLE

main55539-12120-B0iAE11#,CE11#,EE111..SCRU,SEVIN,XEVIN199505-199704

SHADOW GRAY,TRIM1#

sub55539-32010

main55539-12120-B2iAE110,114,CE11#,EE111..SEVIN,XEVIN199704-199804

MD.CHARCOAL,TRIM14

sub55539-32010

main55539-12120-B3iAE110,114,CE11#,EE111..SEVIN,XEVIN199704-199804

MD.GRAY,TRIM11

sub55539-32010

main55539-12120-E2iAE110,114,CE11#,EE111..SEVIN,XEVIN199505-199704

OAK,TRIM4#

sub55539-32010

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-12112-B2iAE110,114,CE11#,EE111..MTM..(SEVIN,XEVIN)199704-199804

MD.GRAY,TRIM1#

main58808-12112-B3iAE110,114,CE11#,EE111..5F199804-200008

MD.CHARCOAL,TRIM1#

main58808-12112-E0iAE110,114,CE11#,EE111..MTM..(SEVIN,XEVIN)199505-199704

OAK,TRIM4#

main58808-12112-P0iAE11#,CE11#,EE111..MTM199505-199704

SHADOW GRAY,TRIM1#

main58808-12140-C0iAE111..6F199704-199804

BLACK,TRIM1#

main58808-12160-C0iAE111..6F199804-200008

BLACK,TRIM1#

58843BEZEL, SHIFTING HOLE

main58843-12080-B0iAE11#,CE110,EE111..ATM199505-199704

SHADOW GRAY,TRIM1#

main58843-12080-E0iAE110,114,CE110,EE111..ATM..(SEVIN,XEVIN)199505-199704

OAK,TRIM4#

main58843-12090-B0iAE111..4FC199704-200008

SHADOW GRAY,TRIM1#

main58843-12090-B1iAE110,114,CE110,EE111..ATM..(SEVIN,XEVIN)199704-199804

MD.CHARCOAL,TRIM14

main58843-12090-B2iAE110,114,CE110,EE111..ATM..(SEVIN,XEVIN)199704-199804

MD.GRAY,TRIM1#

main58843-12100iAE111..6F199704-200008

58901ABOX SUB-ASSY, CONSOLE, REAR

main58901-12220-B0iAE110,111,CE110,EE111..SCRU,SEVIN,XEVIN199505-199704

SHADOW GRAY,TRIM1#

main58901-12220-B1iAE110,CE113,EE111..SEVIN,XEVIN199804-200008

MD.CHARCOAL,TRIM1#

main58901-12220-B2iAE110,CE110,EE111..SEVIN,XEVIN199704-199804

MD.GRAY,TRIM11

main58901-12220-E0iAE110,CE110,EE111..SEVIN,XEVIN199505-199704

OAK,TRIM4#

main58901-12230-B0iAE110,CE110,EE111..LX199704-199804

MD.GRAY,TRIM1#

main58901-12230-B1iAE110,CE113,EE111..LX199804-200008

MD.CHARCOAL,TRIM1#

main58901-12230-P0iAE110,CE110,EE111..LX199505-199704

SHADOW GRAY,TRIM1#

main58901-12250-B0iAE114,CE114..SEVIN,XEVIN199505-199704

SHADOW GRAY,TRIM1#

main58901-12250-B1iAE114,CE116..SEVIN,XEVIN199804-200008

MD.CHARCOAL,TRIM1#

main58901-12250-B2iAE114,CE114..SEVIN,XEVIN199704-199804

MD.GRAY,TRIM11

main58901-12250-E0iAE114,CE114..SEVIN,XEVIN199505-199704

OAK,TRIM4#

main58901-12260-B0iAE114,CE114..LX199704-199804

MD.GRAY,TRIM1#

main58901-12260-B1iAE114,CE116..LX199804-200008

MD.CHARCOAL,TRIM1#

main58901-12260-P0iAE114,CE114..LX199505-199704

SHADOW GRAY,TRIM1#

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-12133-E1iAE110,114,CE11#..SEVIN199608-199704

main58905-12160-B0iAE111199605-199704

SHADOW GRAY,TRIM1#

main58905-12160-E0iAE110,114,CE11#,EE111..SEVIN,XEVIN199505-199605

OAK,TRIM4#

main58905-12180-B0iAE110,114,CE11#..SEVIN199505-199704

main58905-12180-E0iAE110,114,CE11#..SEVIN199505-199704

main58905-12210-B1iAE110,114,CE11#,EE111..XEVIN199510-199604

main58905-12210-E1iAE110,114,CE11#,EE111..XEVIN199510-199604

main58905-12220-B1iAE110,114,CE11#,EE111..XEVIN199605-199704

SHADOW GRAY,TRIM1#

main58905-12220-E1iAE110,114,CE11#,EE111..XEVIN199605-199704

OAK,TRIM4#

main58905-12230-B1iAE110,114,CE11#..SEVIN199605-199704

SHADOW GRAY,TRIM1#

main58905-12230-E1iAE110,114,CE11#..SEVIN199605-199704

OAK,TRIM4#

main58905-12260-B0iAE110,114,CE11#..SEVIN199704-200008

ME. CHARCOAL,TRIM1#

main58905-12280-B0iAE110,114,CE11#,EE111..XEVIN199704-199804

ME. CHARCOAL,TRIM14

main58905-12280-B1iAE110,114,CE11#,EE111..XEVIN199704-199804

ME. GRAY,TRIM11

main58905-12280-B2iAE110,114,CE11#,EE111..XEVIN199804-200008

ME. CHARCOAL,TRIM1#

main58905-12290-E0iAE110,114,CE11#..SEVIN200004-200008

58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58908-32020iCE11#..SEVIN199804-200008

sub58908-12080

main58908-32040iAE11#,CE11#,EE111..GT,XEVIN199704-200008

main58908-32050iAE11#,CE11#,EE111..SCRU,SEVIN,XEVIN199605-199704

58964STOPPER, CONSOLE COMPARTMENT DOOR, NO.1

main58964-12040iAE11#,CE11#,EE111..SCRU,SEVIN,XEVIN199505-199704

58965ASTOPPER, CONSOLE COMPARTMENT DOOR, NO.2

main58965-12040iAE11#,CE11#,EE111..SCRU,SEVIN,XEVIN199505-199704

58995ABRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-12080iAE11#,CE11#,EE111..MTM199505-199704

58996ABRACKET, CONSOLE BOX MOUNTING, NO.2

main58996-12090iAE110,114,CE11#,EE111..LX199505-199704

7404

9011908413

main90119-08413

9011908848

main90119-08848

9046710130

main90467-10130

9054103006

main90541-03006

9356754512

main93567-54512

9356755014

main93567-55014

9356855016

main93568-55016

20 parts on this diagram · 1 diagram in section
