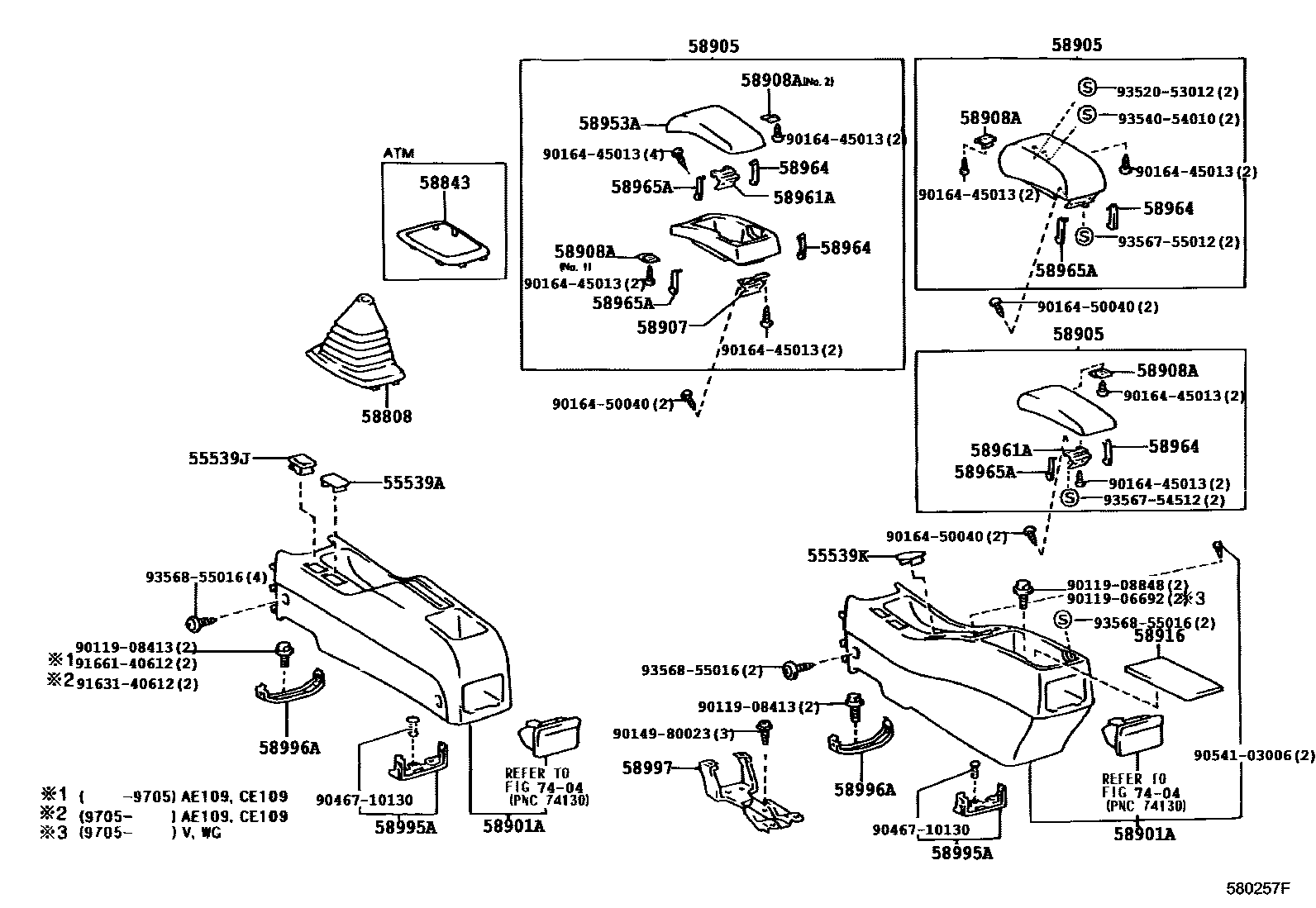

Toyota SPRINTER — CONSOLE BOX & BRACKET

55539ACOVER, SPARE SWITCH HOLE

main55539-12120-B0iEE102..5F..DXJ200008

SHADOW GRAY,TRIM1#

sub55539-12120

sub55539-32010

main55539-12120-B0iEE102..(3FC,4F)..DXJ;AE100,104,CE100,104,EE101;AE101,CE106,107,EE106..(3FC,4F,5F)..(CTD,DXJ,GT,SEG)199106

sub55539-12120

sub55539-32010

main55539-12120-J0iAE101..5F..SEG;AE100,104,CE100,104,EE101..LX,SEL,XE199106-199305

DARK BLUE,TRIM8#

sub55539-12120

sub55539-32010

main55539-12120-K0iAE101..5F..SEG;AE100,104,CE100,104,EE101..LX,SEL,XE199106-199505

TAUPE,TRIM9#

sub55539-12120

sub55539-32010

main55539-20020-03iCE106,EE106..CTD199109-199208

sub55539-20020

main55539-20020-03iCE106,108,109,EE107,108..DX,L,XL;AE101,EE106..(3FC,4F,4FC)..(DX,GT,SEG)199106-199208

SHADOW GRAY,TRIM1#

sub55539-20020

main55539-20020-K0iAE101..4FC..SEG199106-199505

TAUPE,TRIM9#

sub55539-20020

main55539-20020-P0iCE106,EE102,106..CTD,DXJ199208

sub55539-20020

main55539-20020-P0iEE102..DX;AE101,EE106..(3FC,4F,4FC)..(DX,GT,SEG);AE109,CE102,105,106,107,108,109,EE103,104,107,108..DX,DXJ,L,XL199208

SHADOW GRAY,TRIM1#

sub55539-20020

main55539-20020-W3iAE101..4FC..SEG199106-199305

DARK BLUE,TRIM8#

sub55539-20020

55539JCOVER, SPARE SWITCH HOLE

main55539-20020-03iAE100,104,CE100,104,EE101;AE101,CE106,EE106..(3FC,4F,5F)..(CTD,GT,SEG)199106-199208

SHADOW GRAY,TRIM1#

sub55539-20020

main55539-20020-K0iAE101..5F..SEG;AE100,104,CE100,104,EE101..LX,SEL,XE199106-199505

TAUPE,TRIM9#

sub55539-20020

main55539-20020-P0iAE100,104,CE100,104,EE101;AE101,CE106,107,EE102,106..(3FC,4F,5F)..(CTD,DXJ,GT,SEG)199208

SHADOW GRAY,TRIM1#

sub55539-20020

main55539-20020-W3iAE101..5F..SEG;AE100,104,CE100,104,EE101..LX,SEL,XE199106-199305

DARK BLUE,TRIM8#

sub55539-20020

55539KCOVER, SPARE SWITCH HOLE

main55539-12120-B0iAE109,CE10#,EE10#199106-199505

SHADOW GRAY,TRIM1#

sub55539-12120

sub55539-32010

main55539-12120-J0iAE10#,CE100,104,EE101..LX,SEG,SEL,XE199106-199305

DARK BLUE,TRIM8#

sub55539-12120

sub55539-32010

main55539-12120-K0iAE10#,CE100,104,EE101..LX,SEG,SEL,XE199106-199505

TAUPE,TRIM9#

sub55539-12120

sub55539-32010

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-12110-K0iAE10#,CE100,104,EE101..MTM..(LX,SEG,SEL,XE)199106-199205

TAUPE,TRIM9#

sub58808-12111

main58808-12110-P0iAE10#,CE10#,EE10#..MTM199106-199205

SHADOW GRAY,TRIM1#

sub58808-12111

main58808-12110-W3iAE10#,CE100,104,EE101..MTM..(LX,SEG,SEL,XE)199106-199205

DARK BLUE,TRIM8#

sub58808-12111

main58808-12111-K0iAE10#,CE100,104,EE101..MTM..(LX,SEG,SEL,XE)199205-199312

TAUPE,TRIM9#

sub58808-12112

main58808-12111-P0iAE10#,CE10#,EE10#..MTM199205-199312

SHADOW GRAY,TRIM1#

sub58808-12112

main58808-12111-W3iAE10#,CE100,104,EE101..MTM..(LX,SEG,SEL,XE)199205-199305

DARK BLUE,TRIM8#

sub58808-12112

main58808-12112-K0iAE10#,CE100,104,EE101..MTM..(LX,SEG,SEL,XE)199312-199505

TAUPE,TRIM9#

sub58808-12112

main58808-12112-P0iAE10#,CE10#,EE10#..MTM199312

SHADOW GRAY,TRIM1#

sub58808-12112

58843BEZEL, SHIFTING HOLE

main58843-12060-K0iAE10#,CE100,EE101..ATM..(LX,SEG,SEL,XE)199106-199312

TAUPE,TRIM9#

sub58843-12080

main58843-12060-P0iAE10#,CE100,106,108,EE10#..ATM199106-199312

SHADOW GRAY,TRIM1#

sub58843-12080

main58843-12060-W3iAE10#,CE100,EE101..ATM..(LX,SEG,SEL,XE)199106-199305

DARK BLUE,TRIM8#

sub58843-12080

main58843-12080-B0iAE10#,CE100,106,108,EE10#..ATM199312-199704

SHADOW GRAY,TRIM1#

sub58843-12080

main58843-12080-K0iAE10#,CE100,EE101..ATM..(LX,SEG,SEL,XE)199312-199505

TAUPE,TRIM9#

sub58843-12080

main58843-12090-B0iAE109,CE102,106,107,108,EE10#..ATM199704

SHADOW GRAY,TRIM1#

sub58843-12090

sub58843-12100

58901ABOX SUB-ASSY, CONSOLE, REAR

main58901-12220-B0iAE100,101,CE100,EE101..GT,LX,SEG,SEL,XE199106-199505

SHADOW GRAY,TRIM1#

sub58901-12220

main58901-12220-J0iAE100,101,CE100,EE101..LX,SEG,SEL,XE199106-199305

DARK BLUE,TRIM8#

sub58901-12220

main58901-12220-K0iAE100,101,CE100,EE101..LX,SEG,SEL,XE199106-199505

TAUPE,TRIM9#

sub58901-12220

main58901-12230-P0iAE100,CE100,106,108,EE10#..CTD,DX,DXJ,L,XL199106-199704

SHADOW GRAY,TRIM1#

main58901-12250-B0iAE104,CE104199109-199505

SHADOW GRAY,TRIM1#

sub58901-12250

main58901-12250-J0iAE104,CE104199109-199305

DARK BLUE,TRIM8#

sub58901-12250

main58901-12250-K0iAE104,CE104199109-199505

TAUPE,TRIM9#

sub58901-12250

main58901-12260-P0iAE109,CE105,109199109

SHADOW GRAY,TRIM1#

main58901-12400-B0iCE102199804

main58901-12400-B0iEE103..XL;CE106,108,EE104;EE102,103..(3FC,4F)..(DX,DXJ)199704

main58901-12400-B0iCE102199804

SHADOW GRAY,TRIM1#

main58901-12400-B0iEE102,103..5F..(DX,DXJ)200008

main58901-12410-B0iCE105199804

sub58901-12410

main58901-12410-B0iAE109,CE109199704

sub58901-12410

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-12110-B0iAE100,104,CE100,104..SEL199106-199505

SHADOW GRAY,TRIM1#

sub58905-12110

main58905-12110-J0iAE100,104,CE100,104..SEL199106-199305

DARK BLUE,TRIM8#

sub58905-12110

main58905-12110-K0iAE100,104,CE100,104..SEL199106-199505

TAUPE,TRIM9#

sub58905-12110

main58905-12120-B0iAE109,CE10#,EE10#199106-199505

SHADOW GRAY,TRIM1#

sub58905-12120

main58905-12120-J0iAE100,104,CE100,104,EE101..LX,XE199106-199305

DARK BLUE,TRIM8#

sub58905-12120

main58905-12120-K0iAE100,104,CE100,104,EE101..LX,XE199106-199505

TAUPE,TRIM9#

sub58905-12120

main58905-12130-B0iAE101..SEG199106-199505

SHADOW GRAY,TRIM1#

main58905-12130-B0iAE100,104,CE100,104..SEL199312-199407

main58905-12130-J0iAE101..SEG199106-199305

DARK BLUE,TRIM8#

main58905-12130-K0iAE100,104,CE100,104..SEL199312-199407

main58905-12130-K0iAE101..SEG199106-199505

TAUPE,TRIM9#

main58905-12131-B2iAE100,104,CE100,104..SEL199407-199504

main58905-12131-K1iAE100,104,CE100,104..SEL199407-199504

main58905-12132-B1iAE100,104,CE100,104,EE101..LX199408-199504

58907HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58907-12030iAE100,104,CE100,104..SEL199106-199505

58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58908-12020-B0iAE100,104,CE100,104..SEL199106-199505

sub58908-12020

main58908-12020-J0iAE100,104,CE100,104..SEL199106-199305

sub58908-12020

main58908-12020-K0iAE100,104,CE100,104..SEL199106-199505

sub58908-12020

main58908-32020iAE109,CE10#,EE102,103199704-199804

sub58908-12080

main58908-32020iAE10#,CE100,104,EE101..GT,LX,SEG,XE199106-199505

sub58908-12080

58916MAT, BOX BOTTOM

main58916-12040iAE10#,CE100,104,EE101..GT,LX,SEG,SEL,XE199106-199405

58953ADOOR, CONSOLE COMPARTMENT, UPPER

main58953-12040-B0iAE100,104,CE100,104..SEL199106-199505

SHADOW GRAY,TRIM1#

sub58953-12040

main58953-12040-J0iAE100,104,CE100,104..SEL199106-199305

DARK BLUE,TRIM8#

sub58953-12040

main58953-12040-K0iAE100,104,CE100,104..SEL199106-199505

TAUPE,TRIM9#

sub58953-12040

58961AHINGE, CONSOLE COMPARTMENT DOOR MALE

main58961-12080iAE100,104,CE100,104..SEL199106-199505

main58961-12090iAE10#,CE100,104,EE101..GT,LX,XE199106-199804

58964STOPPER, CONSOLE COMPARTMENT DOOR, NO.1

main58964-12040iAE109,CE10#,EE10#199106-199804

58965ASTOPPER, CONSOLE COMPARTMENT DOOR, NO.2

main58965-12040iAE10#,CE100,104,EE101..GT,LX,SEG,XE199106-199804

58995ABRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-12080iAE10#,CE10#,EE10#..MTM199106

58996ABRACKET, CONSOLE BOX MOUNTING, NO.2

main58996-12090iAE100,109,CE100,106,108,109,EE10#..CTD,DX,DXJ,L,XL199106-199705

58997BRACKET, CONSOLE BOX MOUNTING, NO.3

main58997-12080iAE109,CE10#,EE102,103199704-199804

7404

9011906692

main90119-06692

9011908413

main90119-08413

9011908848

main90119-08848

9014980023

main90149-80023

9016445013

main90164-45013

9016450040

main90164-50040

9046710130

main90467-10130

9054103006

main90541-03006

9163140612

main91631-40612

9166140612

main91661-40612

9352053012

main93520-53012

9354054010

main93540-54010

9356754512

main93567-54512

9356755012

main93567-55012

9356855016

main93568-55016

33 parts on this diagram · 1 diagram in section
