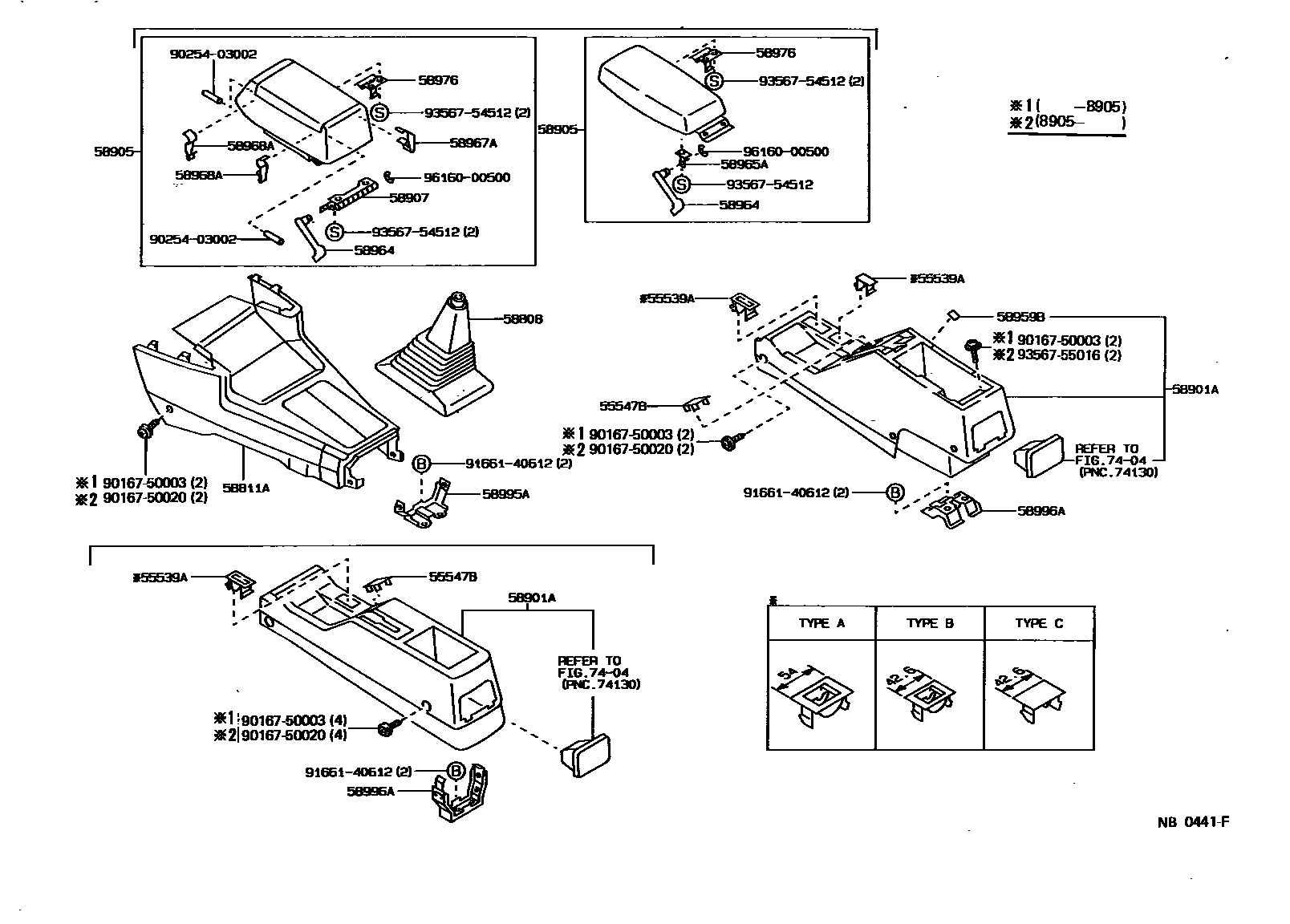

Toyota SPRINTER — CONSOLE BOX & BRACKET

55539ACOVER, SPARE SWITCH HOLE

main55539-12070-02iAE91,CE90,EE90..MX,SE198705-199106

sub55539-12070

main55539-12070-03iAE91,92,CE90,EE90..G,GT,L,LX,MX,SE,XS198705-199106

sub55539-12070

main55539-12070-04iAE91,CE90,EE90..G,L,LX,MX,SE,XS198905-199106

sub55539-12070

main55539-12070-05iAE91,CE90,EE90..G,L,MX,SE,XI198705-198905

sub55539-12070

main55539-20020-03iAE95,CE96,EE96,98..V,WG198705-198908

sub55539-20020

main55539-20020-03iAE95,CE96,EE96,98..V,WG198905-199108

SHADOW GRAY,TRIM1#

sub55539-20020

main55539-20020-05iAE95,CE96,EE96,98..AV1,DX,RVS,XL198705-198908

sub55539-20020

main55539-20020-22iAE95..MX,SE198710-198807

sub55539-20020

main55539-20020-D0iAE95,CE95..5F..(MX,SE)198807-199108

MAROON,TRIM3#

sub55539-20020

main55539-20020-D0iAE95..(MX,SE)..CBR198807-199108

sub55539-20020

main55539-20020-J0iCE95;AE95..5F..(MX,SE);AE95..AV1,AV2,LX,RVS;AE91,CE90,96,EE9#..CTD,DX,XL198905-199108

DARK BLUE,TRIM8#

sub55539-20020

main55539-20030-03iAE91,92,CE90,EE90..G,GT,L,LX,MX,SE,XS198705-199106

sub55539-32010

sub55539-20030

main55539-20030-05iAE91,CE90,EE90..G,L,MX,SE,XI198705-198905

sub55539-32010

sub55539-20030

main55539-20030-12iAE91,CE90,EE90..MX,SE198705-199106

sub55539-32010

sub55539-20030

main55539-20030-14iAE91,CE90,EE90..G,L,LX,MX,SE,XS198905-199106

sub55539-32010

sub55539-20030

55547BCOVER, REMOTE CONTROL MIRROR HOLE

main55547-20020-03iCE9#,EE9#..CTD,DX,LX,XL198705-199108

SHADOW GRAY,TRIM1#

sub55547-20020

main55547-20020-05iAE95,CE96,EE96,98..AV1,DX,RVS,XL198705-198908

DARK BEIGE,TRIM4#

sub55547-20020

main55547-20020-12iAE91,95,CE90,EE90..MX198705-198905

MAROON,TRIM3#

sub55547-20020

main55547-20020-14iAE91,95..AV1,DX,L,LX,RVS198905-199108

DARK BLUE,TRIM8#

sub55547-20020

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-12090-01iAE92..5F198705-199108

BLACK,TRIM1#

sub58808-12090

main58808-12090-02iAE91,CE90,EE90..MTM..(MX,SE)198705-199108

MAROON,TRIM3#

sub58808-12090

main58808-12090-03iAE91,CE90,96,EE9#..MTM198705-199108

SHADOW GRAY,TRIM1#

sub58808-12090

main58808-12090-04iAE91,CE90,EE90..MTM198905-199108

DARK BLUE,TRIM8#

sub58808-12090

main58808-12090-05iCE96,EE96,98..MTM..(DX,XL);AE91,CE90,EE90..MTM..(G,L,LX,MX,SE,XI)198705-198908

DARK BEIGE,TRIM4#

sub58808-12090

main58808-12100-01iAE95..5F..AV2198802-199009

BLACK,TRIM1#

sub58808-12101

main58808-12100-02iAE95,CE95..5F..(MX,SE)198710-199106

MAROON,TRIM3#

sub58808-12101

main58808-12100-03iAE95,CE95..5F198710-199106

SHADOW GRAY,TRIM1#

sub58808-12101

main58808-12100-04iAE95,CE95..5F198905-199106

DARK BLUE,TRIM8#

sub58808-12101

main58808-12100-05iAE95..5F..CBR;AE95..5F..(AV1,RVS)198710-198908

DARK BEIGE,TRIM4#

sub58808-12101

58811ABOX, CONSOLE, FRONT

main58811-12400-02iAE91,CE90,EE90..MX,SE198705-199108

MAROON,TRIM3#

sub58811-12400

main58811-12400-03iAE91,CE90,96,EE9#198705-199108

SHADOW GRAY,TRIM1#

sub58811-12400

main58811-12400-04iAE91,CE90,EE90198905-199108

DARK BLUE,TRIM8#

sub58811-12400

main58811-12400-05iCE96,EE96,98..DX,XL198705-198908

DARK BEIGE,TRIM4#

sub58811-12400

main58811-12400-13iAE92198705-199108

SHADOW GRAY,TRIM1#

sub58811-12400

main58811-12430-02iAE95,CE95..MX,SE198710-199106

MAROON,TRIM3#

sub58811-12430

main58811-12430-03iAE95,CE95198710-199106

SHADOW GRAY,TRIM1#

sub58811-12430

main58811-12430-04iAE95,CE95198905-199106

DARK BLUE,TRIM8#

sub58811-12430

main58811-12430-05iAE95..CBR;AE95..AV1,RVS198710-198908

DARK BEIGE,TRIM4#

sub58811-12430

main58811-12430-13iAE95..AV2198802-199009

sub58811-12430

main58811-12470-02iAE91..SE198905-199106

sub58811-12470

main58811-12470-03iAE91..SE198905-199106

sub58811-12470

main58811-12470-04iAE91..SE198905-199106

sub58811-12470

main58811-12470-13iAE92..4D198905-199106

sub58811-12470

main58811-13010-02iAE95..MX,SE199008-199106

sub58811-13010

main58811-13010-03iAE95..4D199008-199106

sub58811-13010

main58811-13010-04iAE95..4D199008-199106

sub58811-13010

58901ABOX SUB-ASSY, CONSOLE, REAR

main58901-12140-03iAE91,CE9#,EE9#..DX,LX,STD,XL198705-199009

SHADOW GRAY,TRIM1#

sub58901-12140

main58901-12140-05iCE96,EE96,98..DX,XL198705-198908

DARK BEIGE,TRIM4#

sub58901-12140

main58901-12140-B1iAE91,CE90,96,EE9#..CTD,DX,XL199009-199108

SHADOW GRAY,TRIM1#

sub58901-12140

main58901-12140-J0iAE91,CE90,96,EE9#..CTD,DX,XL198905-199108

DARK BLUE,TRIM8#

sub58901-12140

main58901-12150-02iAE91,CE90,EE90..MX,SE198705-198910

MAROON,TRIM3#

sub58901-12150

main58901-12150-03iAE91,92,CE90,EE90..G,GT,L,LX,MX,SE,XS198705-199009

SHADOW GRAY,TRIM1#

sub58901-12150

main58901-12150-04iAE91,CE90,EE90..G,L,LX,MX,SE,XS198905-198910

DARK BLUE,TRIM8#

sub58901-12150

main58901-12150-05iAE91,CE90,EE90..G,L,MX,SE,XI198705-198905

DARK BEIGE,TRIM4#

sub58901-12150

main58901-12150-B1iAE91,92,CE90,EE90..G,GT,L,LX,MX,SE,XS199009-199106

SHADOW GRAY,TRIM1#

sub58901-12150

main58901-12150-D0iAE91,CE90,EE90..MX,SE198910-199106

MAROON,TRIM3#

sub58901-12150

main58901-12150-J0iAE91,CE90,EE90..G,L,LX,MX,SE,XS198910-199106

DARK BLUE,TRIM8#

sub58901-12150

main58901-12170-03iAE95..LX..CBR;AE95..AV1,RVS198710-199009

SHADOW GRAY,TRIM1#

main58901-12170-04iAE95..AV1,RVS198908-199009

DARK BLUE,TRIM8#

main58901-12170-05iAE95..LX..CBR;AE95..AV1,RVS198710-198908

DARK BEIGE,TRIM4#

main58901-12180-02iAE95,CE95..MX,SE198710-199106

MAROON,TRIM3#

main58901-12180-03iCE95;AE95..LX..EFI;AE95..AV2,MX,SE198710-199106

SHADOW GRAY,TRIM1#

main58901-12180-04iAE95,CE95..AV2,LX,MX,SE198905-199106

DARK BLUE,TRIM8#

main58901-12180-05iAE95..MX,SE198710-198905

DARK BEIGE,TRIM4#

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-12070-02iAE91,95,CE90,95,EE90..(MX,SE)..(CBR,DSL,EFI)198705-199106

MAROON,TRIM3#

main58905-12070-03iAE91..XI;AE91..(G,L,MX,SE)..CBR;AE92,95,CE90,EE90..AV2,GT,MX,SE198705-199106

SHADOW GRAY,TRIM1#

main58905-12070-04iAE91..XS;AE91,95,CE90,EE90..(G,L,LX,MX,SE)..(CBR,DSL,EFI)198905-199106

DARK BLUE,TRIM8#

main58905-12070-05iAE91..XI;AE91,95,CE90,EE90..(G,L,MX,SE)..(CBR,DSL)198705-198905

DARK BEIGE,TRIM4#

main58905-12080-02iAE91..SE..EFI198805-199106

MAROON,TRIM3#

sub58905-12080

main58905-12080-02iAE91,95,CE90..SE..(CBR,DSL)198705-199106

sub58905-12080

main58905-12080-02iAE91..SE..EFI199005-199106

sub58905-12080

main58905-12080-03iAE91..SE..EFI198705-199106

sub58905-12080

main58905-12080-03iAE95,CE90,95..SE199005-199106

sub58905-12080

main58905-12080-03iAE91..SE..EFI198805-199106

SHADOW GRAY,TRIM1#

sub58905-12080

main58905-12080-03iAE95..AV2198802-199009

sub58905-12080

main58905-12080-04iAE95,CE90,95..SE198908-199106

sub58905-12080

main58905-12080-04iAE95..AV2198908-199009

sub58905-12080

main58905-12080-04iAE91..SE..EFIS198905-199106

DARK BLUE,TRIM8#

sub58905-12080

main58905-12080-04iAE95,CE90,95..SE199005-199106

sub58905-12080

main58905-12080-05iAE91,95,CE90..SE..(CBR,DSL)198705-198905

sub58905-12080

main58905-12080-05iAE91..SE..EFI198805-198905

DARK BEIGE,TRIM4#

sub58905-12080

58907HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58907-12020iAE91..SE..EFI198705-199106

main58907-12020iAE95,CE90,95..SE199005-199106

58959BCUSHION, CONSOLE COMPARTMENT DOOR

main58959-16010iAE9#,CE90,EE90..AV2,G,GT,L,MX,SE,XI198705-199106

58964STOPPER, CONSOLE COMPARTMENT DOOR, NO.1

main58964-20020iAE9#,CE90,EE90..AV2,G,GT,L,MX,SE,XI198806-199106

main58964-30030iAE9#,CE90,EE90..AV2,G,GT,L,MX,SE,XI198705-198805

main58964-30060iAE9#,CE90,EE90..AV2,G,GT,L,MX,SE,XI198805-198806

58965ASTOPPER, CONSOLE COMPARTMENT DOOR, NO.2

main58965-12010iAE91..XS;AE9#,CE90,95,EE90..(AV2,G,GT,L,LX,MX,SE)..(CBR,DSL,EFI)198705-199106

58967ASPRING, CONSOLE DOOR STOPPER

main58967-12010iAE95,CE90,95..SE199005-199106

main58967-12010iAE95..SE..CBR198710-199106

58968ABRACKET, CONSOLE DOOR STOPPER

main58968-12010iAE91,95,CE90,95..SE..(DSL,EFI)198710-199106

main58968-12010iAE95,CE90,95..SE199005-199106

58976STRIKER, CONSOLE COMPARTMENT DOOR LOCK

main58976-22020iAE9#,CE90,95,EE90..AV2,G,GT,L,LX,MX,SE,XS198705-199106

58995ABRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-12060iAE91,92,CE90,96,EE9#198705-199108

main58995-12070iAE95198710-198905

main58995-12071iAE95,CE95198905-199106

58996ABRACKET, CONSOLE BOX MOUNTING, NO.2

main58996-12030iAE91,CE9#,EE9#..DX,LX,STD,XL198705-199108

main58996-12050iAE91,92,CE90,EE90..G,GT,L,MX,SE,XI198705-199106

main58996-12060iAE95..LX..CBR;AE95..AV1,RVS198710-199009

main58996-12070iCE95;AE95..LX..EFI;AE95..AV2,MX,SE198710-199106

7404

9016750003

main90167-50003

9016750020

main90167-50020

9025403002

main90254-03002

9166140612

main91661-40612

9356754512

main93567-54512

9356755016

main93567-55016

9616000500

main96160-00500

23 parts on this diagram · 1 diagram in section
