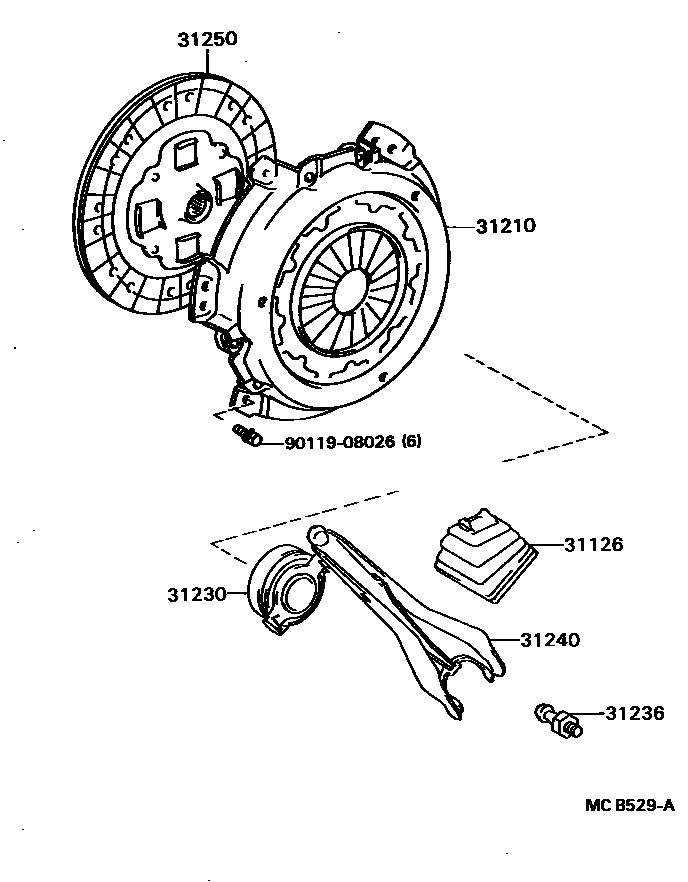

Toyota SPRINTER — CLUTCH & RELEASE FORK

0001 1 0002 1 0003 1

31126BOOT, CLUTCH RELEASE FORK

main31126-12050iAE8#,EE80..MTM198305-198701

main31126-12051iAE8#,EE80..MTM198701-198704

main31126-32010iCE80..5F198305-198704

31210COVER ASSY, CLUTCH

main31210-10070iEE80..4F198505-198512

sub31210-10071

main31210-12071iAE82..5F..(SE,SR,SX,ZX)198305-198704

sub31210-16090

main31210-12080iAE82..5F..GT198410-198704

main31210-12090iAE80..4F198305-198505

sub31210-16062

main31210-12100iAE81..MTM198305-198704

sub31210-12180

main31210-12110iEE80..4F198512-198606

main31210-12120iAE82..5F..GT198704-198704

sub31210-12121

main31210-16060iEE80..4F198606-198704

sub31210-16061

main31210-20190iCE80..5F198305-198704

main31210-27010iAE81..MTM198704-198704

sub31210-27011

main31210-32030iCE80..5F198704-198704

sub31210-32120

31230BEARING ASSY, CLUTCH RELEASE

main31230-12100iAE8#,EE80..MTM198305-198608

sub31230-12140

main31230-16060iEE80..4F198608-198704

sub31230-16061

main31230-32020iCE80..5F198305-198704

sub31230-32100

31236BALL, RELEASE FORK

main31236-12011iAE8#,EE80..MTM198305-198704

main31236-30030iCE80..5F198305-198704

31240FORK ASSY, CLUTCH RELEASE

main31204-12050iAE8#,EE80..MTM198305-198704

main31204-32010iCE80..5F198305-198704

31250DISC ASSY, CLUTCH

main31250-12131iAE80..4F198305-198402

main31250-12132iAE80..4F198402-198405

main31250-12133iAE80,EE80..4F198405-198704

sub31250-12170

main31250-12142iAE81..MTM198305-198402

main31250-12143iAE81..MTM198402-198601

main31250-12144iAE81..MTM198601-198704

sub31250-12200

main31250-12151iAE82..5F198305-198402

main31250-12152iAE82..5F198402-198409

main31250-12153iAE82..5F..(SE,SR,SX,ZX)198409-198609

main31250-12154iAE82..5F..(SE,ZX)198609-198704

sub31250-12155

main31250-12160iCE80..5F198305-198312

main31250-12162iCE80..5F198312-198407

main31250-12163iCE80..5F198407-198704

sub31250-12220

main31250-17010iAE82..5F..GT198410-198704

sub31250-12290

9011908026

main90119-08026

7 parts on this diagram · 3 diagrams in section
