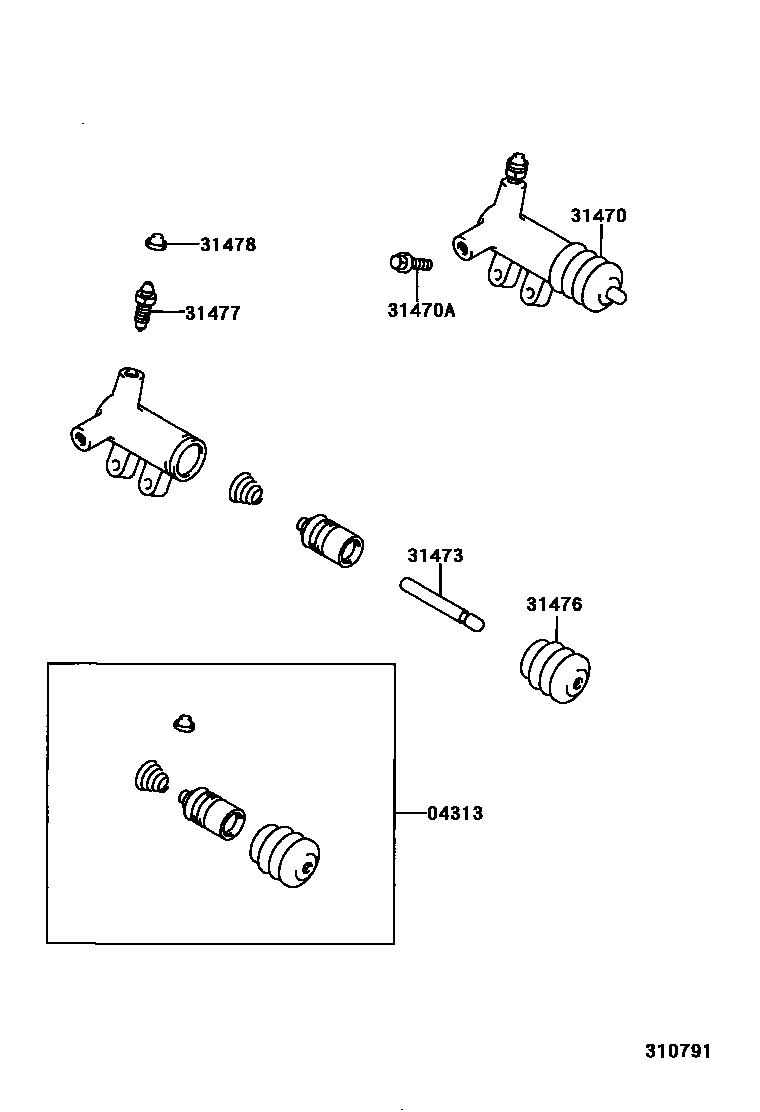

Toyota SPRINTER — CLUTCH RELEASE CYLINDER

0001 1C40,C50,C52,E55F,E55F5 0002 1E59F,S50,S51

04313CYLINDER KIT, CLUTCH RELEASE

main04313-12030iAE10#,CE10#,EE10#..MTM199106-199401

main04313-17010iCE10#,EE10#..MTM199401-199509

main04313-17020iEE10#..MTM199509

main04313-22030iAE10#..5F199301

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-10012iEE10#..MTM199106-199509

main31470-10040iEE10#..MTM199509

main31470-12092iAE10#..5F199106-199301

sub31470-12093

main31470-12093iAE10#..5F199301

main31470-32022iCE10#..5F199106

sub31470-32023

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-60822iAE10#,CE104,105,109,EE10#..MTM199106

main91611-60825iCE100,102,106,107,108..5F199106

sub91611-B0825

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-22010iCE10#,EE10#..MTM199401

main31473-32010iAE10#..5F199106-199401

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iAE10#,CE10#,EE10#..MTM199106

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-20010iAE10#,CE10#,EE10#..MTM199106

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-01030iAE109..5F199704

main31478-30010iCE10#,EE10#..MTM199704

main31478-30010iAE10#,CE10#,EE10#..MTM199106-199704

7 parts on this diagram · 2 diagrams in section
