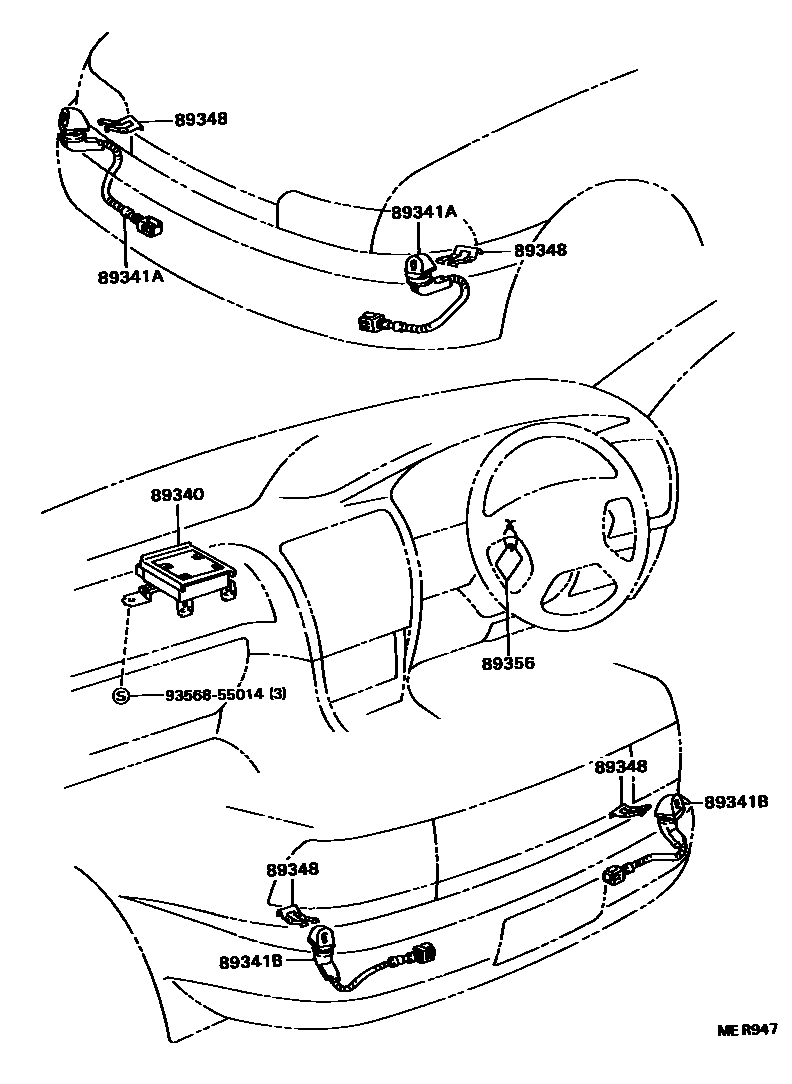

Toyota SPRINTER — CLEARANCE & BACK SONAR

89340COMPUTER ASSY, REAR CLEARANCE WARNING

main89340-12010iAE101..SEG199106-199305

89341ASENSOR, ULTRASONIC, NO.1

main89341-12010-04iAE101..SEG199106-199305

SUPER WHITE,040

main89341-12010-12iAE101..SEG199205-199305

SILVER MICA METALLIC,192

main89341-12010-13iAE10#,CE100,104..SEG,SEL199106-199305

DARK BLUEISH GRAY M,183

main89341-12010-34iAE101..SEG199106-199305

RED MICA METALLIC,3K4

main89341-12010-35iAE10#,CE100,104..SEG,SEL199106-199205

ROSE GRAHIGHT MICA M,3K5

main89341-12010-39iAE10#,CE100,104..SEG,SEL199106-199305

LIGHT BEIGE METALLIC,3K9

main89341-12010-G0iAE10#,CE100,104..SEG,SEL199106-199305

GRAISH GREEN M,6M3

main89341-12010-J0iAE10#,CE100,104..SEG,SEL199106-199305

DARK BLUE MICA M,8J7

89341BSENSOR, ULTRASONIC, NO.2

main89341-12030-04iAE10#,CE100,104..SEG,SEL199106-199305

SUPER WHITE,040

main89341-12030-13iAE10#,CE100,104..SEG,SEL199106-199305

DARK BLUEISH GRAY M,183

main89341-12030-34iAE10#,CE100,104..SEG,SEL199106-199305

RED MICA METALLIC,3K4

main89341-12030-35iAE10#,CE100,104..SEG,SEL199106-199205

ROSE GRAHIGHT MICA M,3K5

main89341-12030-39iAE10#,CE100,104..SEG,SEL199106-199305

LIGHT BEIGE METALLIC,3K9

main89341-12030-B0iAE101..SEG199205-199305

SILVER MICA METALLIC,192

main89341-12030-G0iAE101..SEG199106-199305

GRAISH GREEN M,6M3

main89341-12030-J0iAE10#,CE100,104..SEG,SEL199106-199305

DARK BLUE MICA M,8J7

89348RETAINER, ULTRASONIC SENSOR, NO.1

main89348-22020iAE10#,CE100,104..SEG,SEL199106-199305

89356LABEL, CLEARANCE WARNING INFORMATION

main89356-22010iAE10#,CE100,104..SEG,SEL199106-199305

9356855014

main93568-55014

6 parts on this diagram · 1 diagram in section
