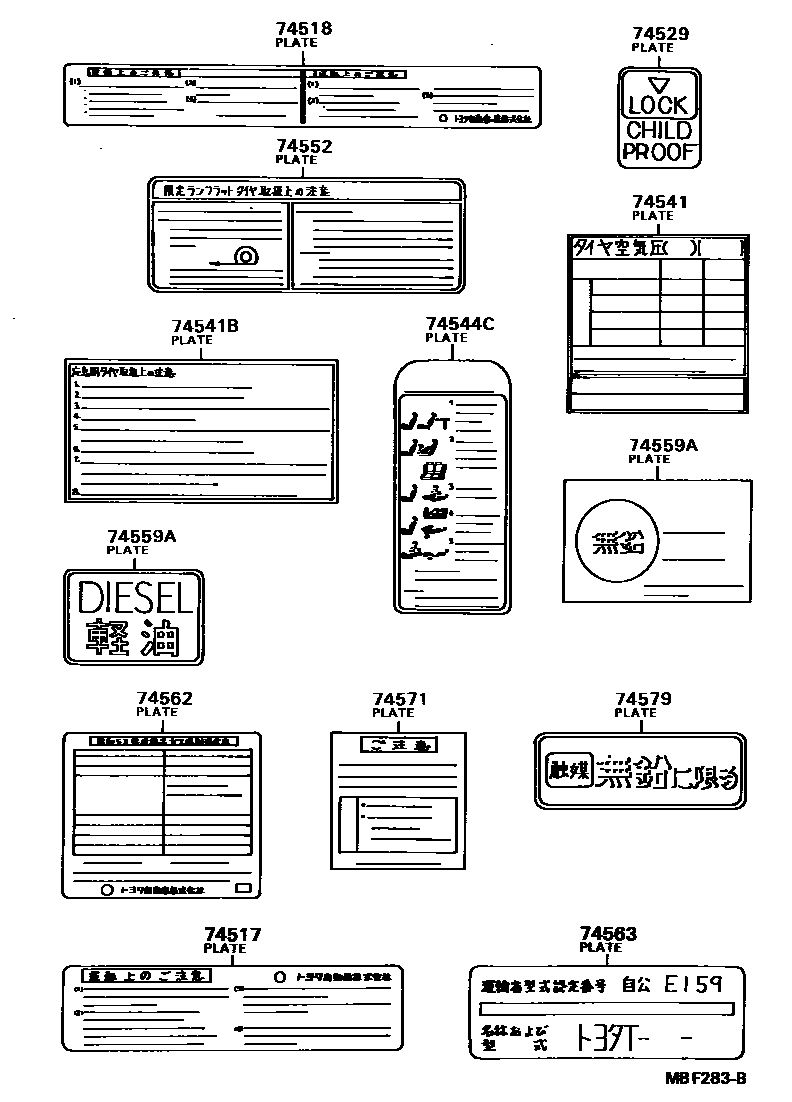

Toyota SPRINTER — CAUTION PLATE (EXTERIOR & INTERIOR)

74517PLATE, EXHAUST TEMPERATURE CAUTION

main74517-20010iAE80,81,EE80..DX,SPD198306-198704

sub74517-60010

main74517-20020iCE80..DX198306-198704

main74517-32010iAE8#,EE80..GT,SE,SR,SX,XL,ZX198410-198704

sub74517-32050

main74517-32020iCE80..SE,SX,XL198410-198704

sub74517-32050

74518PLATE, MAINTENANCE CAUTION

main74518-14011iAE80,81..DX,SPD198305-198306

main74518-22021iCE80..DX198305-198306

74529PLATE, CHILD PROOF OR CHILD PROTECTOR LOCK CAUTION

main69339-12010×2iAE8#,CE80,EE80198305-198704

74541PLATE, TIRE PRESSURE CAUTION

main42661-12590iAE8#,CE80,EE80..DX,SE,SPD,SR,SX,XL,ZX198305-198704

main42661-12650iCE80198305-198505

main42661-12651iCE80198505-198704

main42661-12670iAE81..4D..3FC..XL198305-198704

*TECS1

main42661-12690iAE82..GT198410-198704

main42661-12740iEE80..SPD198505-198704

*52

74541BPLATE, COMPACT SPARE TIRE CAUTION

main42668-32010iAE80,82,CE80198305-198401

74544CPLATE, REAR SEAT CAUTION

main74544-12070iAE81,82..ZX198305-198401

main74544-12071iAE81,82,CE80..5D198403-198405

74552PLATE, SAFETY CAUTION

main42661-12640iAE81..4D..3FC..XL198305-198704

*TECS1

74559APLATE, FUEL CAUTION

main74559-14010iAE8#,EE80198305-198704

main74559-14030iCE80198305-198704

74562PLATE, EMISSION CONTROL SYSTEM INFORMATION

main74562-10080iEE80..SPD198505-198605

*52

main74562-12310iAE80198305-198308

main74562-12311iAE80198308-198505

main74562-12320iAE81..DX198305-198308

main74562-12321iAE81..DX198401-198505

W/KNOCK CONTROL

main74562-12330iAE81..SE,SX,XL,ZX198305-198308

main74562-12331iAE81..SE,SX,XL,ZX198308-198401

main74562-12332iAE81198505-198605

main74562-12340iAE82198305-198308

main74562-12370iAE82..SE,SR,SX,ZX198308-198605

main74562-12380iAE82..GT198410-198605

main74562-12390iEE80198505-198605

main74562-13061iCE80198505-198704

main74562-16110iEE80..SPD198605-198704

*52

main74562-16120iEE80198605-198704

main74562-20370iAE81198605-198704

main74562-20390iAE82..SE,ZX198605-198704

main74562-20400iAE82..GT198605-198704

main74562-32031iCE80198305-198505

74563PLATE, EMISSION CONTROL DEVICE IDENTIFICATION

main74563-12120iAE81198305-198704

74571PLATE, BRAKE FLUID CAUTION

main74571-27021iAE8#,CE80198305-198410

main74571-27022iAE8#,CE80,EE80198410-198704

sub47288-32010

74579PLATE, UNLEADED FUEL CAUTION

main74579-30011iAE8#,EE80198305-198704

12 parts on this diagram · 1 diagram in section
