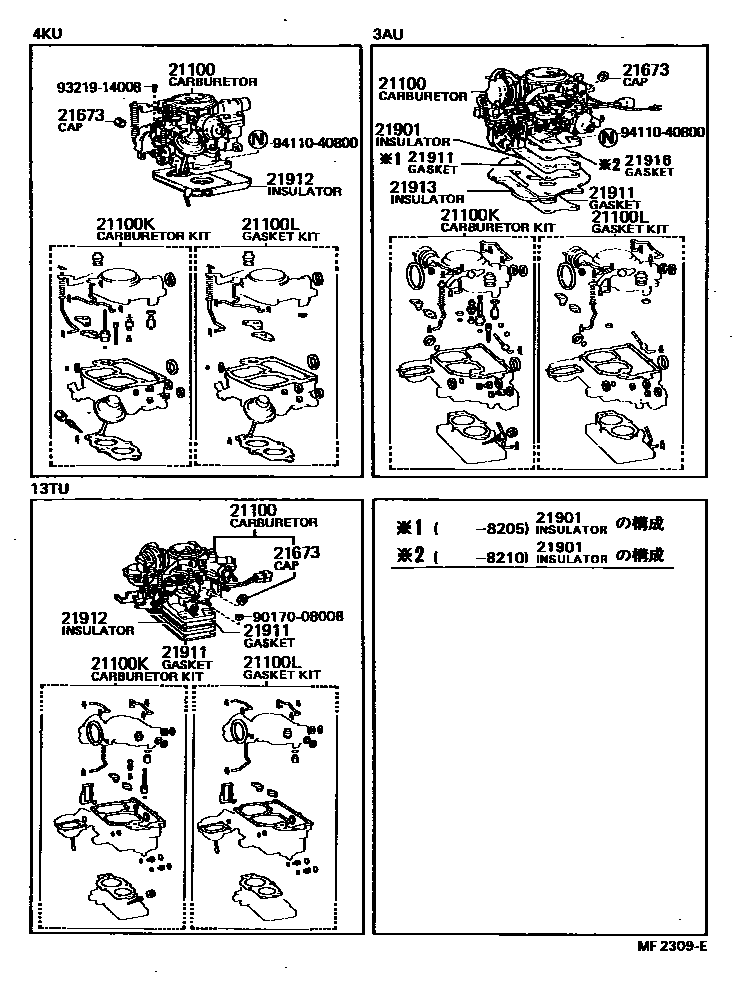

Toyota SPRINTER — CARBURETOR ASSEMBLY
21100CARBURETOR ASSY
main21100-13280i4KU..KE70..MTM..2D;4KU..KE70..4F..DX..4D;4KU..KE70..MTM..(SE,SPD,XL)..4D198108-198301
main21100-13281i4KU..KE70..MTM..2D;4KU..KE70..4F..DX..4D;4KU..KE70..MTM..(SE,SPD,XL)..4D198301-198304
21100KCARBURETOR KIT
main04211-13190i4KU..KE70..MTM..2D;4KU..KE70..4F..DX..4D;4KU..KE70..MTM..(SE,SPD,XL)..4D198108-198206
main04211-13191i4KU..KE70..MTM..2D;4KU..KE70..4F..DX..4D;4KU..KE70..MTM..(SE,SPD,XL)..4D198206-198301
21100LGASKET KIT, CARBURETOR
21901INSULATOR SUB-ASSY, CARBURETOR HEAT, NO.1
21911GASKET, CARBURETOR
21912INSULATOR, CARBURETOR HEAT
21913INSULATOR, CARBURETOR HEAT, NO.2
21916GASKET, CARBURETOR, NO.2
9017008008
main90170-08008
9321914008
main93219-14008
9411040800
main94110-40800
12 parts on this diagram · 1 diagram in section
CARBURETOR ASSEMBLY for Toyota SPRINTER
This section contains 12 genuine Toyota parts for the CARBURETOR ASSEMBLY system of the Toyota SPRINTER. Key components include: CARBURETOR ASSY, CARBURETOR KIT, GASKET KIT, CARBURETOR, CAP, IDLE LIMIT, INSULATOR SUB-ASSY, CARBURETOR HEAT, NO.1.
