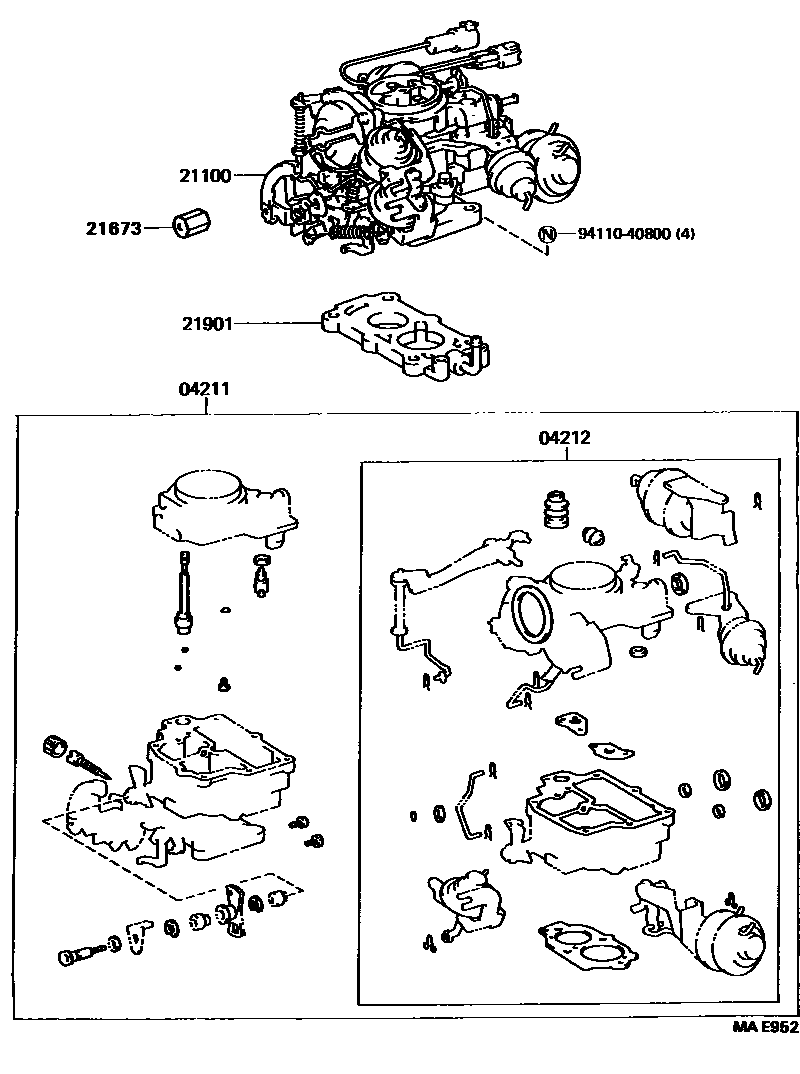

Toyota SPRINTER — CARBURETOR ASSEMBLY

04211CARBURETOR KIT

main04211-11190i2E,3E..EE106,107,108199109-199401

04212GASKET KIT, CARBURETOR

main04212-11071i2E,3E..EE106,107,108199109-199401

21100CARBURETOR ASSY

main21100-11700i2E..EE106..4F199109-199401

main21100-11810i2E..EE106..3FC199109-199401

main21100-11820i3E..EE107,108..MTM199109-199401

main21100-11830i3E..EE107,108..3FC199109-199401

21673CAP, IDLE LIMIT

main21673-13280i2E,3E..EE106,107,108199109-199401

21901INSULATOR SUB-ASSY, CARBURETOR HEAT, NO.1

main21901-11060i2E,3E..EE106,107,108199109-199401

9411040800

main94110-40800

6 parts on this diagram · 1 diagram in section
