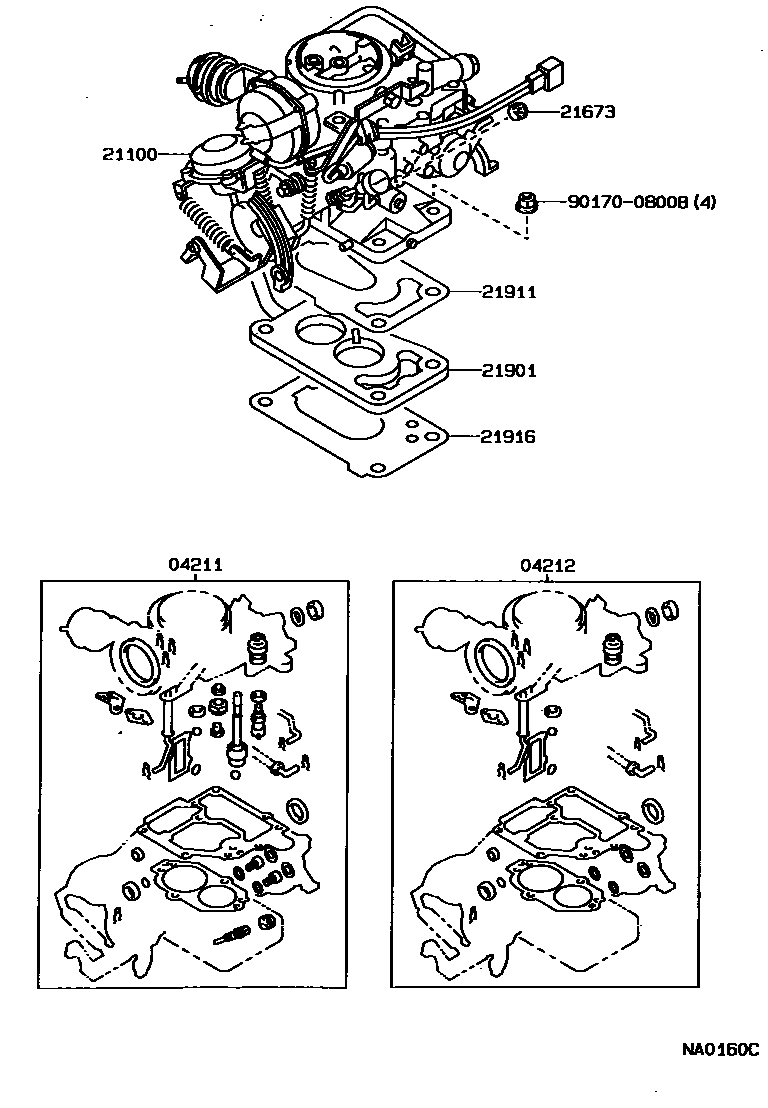

Toyota SPRINTER — CARBURETOR ASSEMBLY

0001 1 0002 1 0004 1

04211CARBURETOR KIT

main04211-11090i2E..EE90198905-198912

sub04211-11091

main04211-11091i2E,3E..EE9#198912-199108

main04211-15180i5AF..AE91..MTM198705-198710

sub04211-15181

main04211-15181i5AF..AE91198710-198905

sub04211-15182

main04211-16200i4AF..AE95..4FC198710-199002

sub04211-16201

main04211-16250i4AF..AE95..5F198811-199002

sub04211-16251

04212GASKET KIT, CARBURETOR

main04212-11040i2E,3E..EE96,98198705-198908

main04212-11070i2E,3E..EE9#198905-198912

sub04212-11071

main04212-11071i2E,3E..EE9#198912-199108

main04212-16070i4AF,5AF..AE91,95198705-199002

sub04212-16071

21100CARBURETOR ASSY

main21100-11231i2E..EE90..4F198705-198706

sub21100-11232

main21100-11232i2E..EE90..4F198706-198710

main21100-11233i2E..EE90..4F198710-198905

main21100-11241i2E..EE90..3FC198705-198706

sub21100-11242

main21100-11242i2E..EE90..3FC198706-198711

main21100-11243i2E..EE90..3FC198711-198905

main21100-11503i2E..EE96198808-198908

sub21100-11504

main21100-11572i3E..EE98..MTM198808-198908

main21100-11582i3E..EE98..3FC198808-198908

main21100-11610i2E..EE90..4F198905-199106

main21100-11620i2E..EE90..3FC198905-199106

main21100-11650i2E..EE96..4F198908-199108

main21100-11660i3E..EE98..MTM198908-199108

main21100-11670i3E..EE98..3FC198908-199108

main21100-11800i2E..EE96..3FC199006-199108

main21100-15500i5AF..AE91..MTM198705-198805

main21100-15501i5AF..AE91..MTM198805-198905

main21100-15510i5AF..AE91..ATM198705-198805

main21100-15511i5AF..AE91..ATM198805-198905

main21100-16280i4AF..AE95..5F198710-198712

main21100-16281i4AF..AE95..5F198712-198905

main21100-16290i4AF..AE95..4FC198710-198712

main21100-16291i4AF..AE95..4FC198712-198905

21673CAP, IDLE LIMIT

main21673-13280i4AF,5AF..AE91,95198705-199108

21901INSULATOR SUB-ASSY, CARBURETOR HEAT, NO.1

main21901-11010i2E..EE90,96198705-198908

main21901-11030i3E..EE98198808-198908

main21901-11050i2E..EE90198905-199106

main21901-11060i2E,3E..EE96,98198908-199108

main21901-15091i4AF,5AF..AE91,95198705-198905

21911GASKET, CARBURETOR

main21911-11020i2E..EE90,96198705-198908

sub21911-11021

main21911-11020i3E..EE98198808-198908

sub21911-11021

main21911-11030i3E..EE98198808-198908

sub21911-11031

main21911-15071i4AF,5AF..AE91,95198705-198905

sub21911-15072

21916GASKET, CARBURETOR, NO.2

main21916-15040i4AF,5AF..AE91,95198705-198905

sub21916-15041

9017008008

main90170-08008

8 parts on this diagram · 3 diagrams in section
