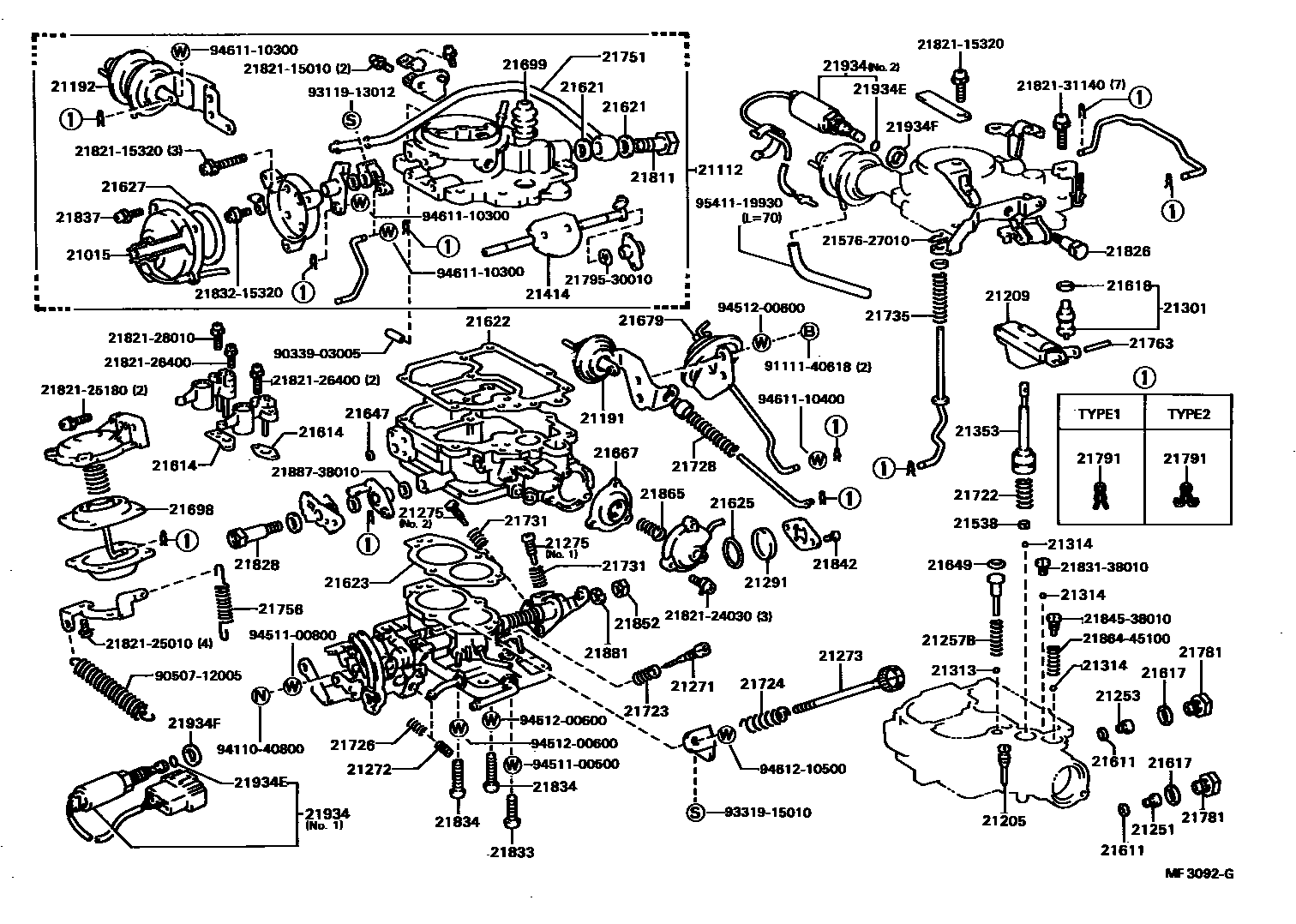

Toyota SPRINTER — CARBURETOR
21015HOUSING SUB-ASSY, COIL
21112HORN, AIR
21191OPENER
21192BREAKER
21205JET SUB-ASSY, SLOW
21209FLOAT SUB-ASSY
21251JET, 1ST MAIN
ID=1.06
21253JET, 2ND MAIN
ID=1.50
ID=1.65
21257BSPRING(FOR PUMP JET)
21271SCREW, IDLE ADJUSTING
21272SCREW, 1ST IDLE ADJUSTING
21273SCREW, THROTTLE ADJUSTING
21275SCREW, ADJUSTING
NO.2
NO.1
21291GLASS, LEVEL GAGE
21301VALVE SUB-ASSY, NEEDLE
21313BALL, STEEL, NO.1(FOR DISCHARGE WEIGHT)
21314BALL, STEEL, NO.2(FOR PUMP PLUNGER)
21353PLUNGER, PUMP
21414SHAFT, CHOKE
21538RETAINER, BALL CHECK
21611GASKET, MAIN JET
21614GASKET, VENTURI
1ST
2ND
21617GASKET, MAIN PASSAGE PLUG
21618GASKET, NEEDLE VALVE SEAT
21621GASKET, UNION NIPPLE
21622GASKET, AIR HORN
21623GASKET, BODY FLANGE
21625GASKET, LEVEL GAGE
21627GASKET, COIL HOUSING
21647GASKET, DIAPHRAGM HOUSING CAP
21649GASKET(FOR PUMP DISCHARGE WEIGHT STOPPER)
21667DIAPHRAGM
21679POSITIONER
*52
21698DIAPHRAGM
21699BOOT(FOR PUMP PLUNGER)
21722SPRING, PUMP DAMPING
21723SPRING, IDLE ADJUSTING
21724SPRING, THROTTLE ADJUSTING
21726SPRING, 1ST IDLE ADJUSTING
21728SPRING, THROTTLE VALVE RETURN
21731SPRING, DASH POT OR POSITIONER ADJUSTING
21735SPRING, PUMP ARM
*52
*52
21751UNION, NIPPLE
21756SPRING, BACK(FOR THROTTLE SHAFT)
21763PIN, FLOAT LEVER
21781PLUG, MAIN PASSAGE(FOR CARBURETOR JET)
21791RING, SNAP, NO.1(FOR CARBURETOR LINK)
TYPE 2
TYPE 1
21811BOLT, UNION NIPPLE
21826SCREW, PUMP ARM SET
21828SCREW, 1ST IDLE SET
21833SCREW, SET, NO.1(FOR CARBURETOR BODY SET)
21834SCREW, SET, NO.2(FOR CARBURETOR BODY SET)
21837SCREW, COIL HOUSING SET
21842SCREW, SET(FOR CARBURETOR LEVEL GAGE CLAMP SET)
21852NUT, THROTTLE LEVER SET
21865SPRING
21881WASHER, LOCK(FOR THROTTLE SHAFT)
21934SOLENOID, THROTTLE VALVE
*52
NO.1
NO.1
NO.1
NO.1
NO.2
21934ERING, O(FOR SOLENOID VALVE)
2157627010CLIP, PUMP STRAINER
main21576-27010
2179530010RING, RETAINER, NO.2(FOR HIGH SPEED SHAFT)
main21795-30010
2182115010SCREW, 2ND THROTTLE VALVE SET
main21821-15010
2182115320SCREW, 2ND THROTTLE VALVE SET
main21821-15320
2182124030SCREW, 2ND THROTTLE VALVE SET
main21821-24030
2182125010SCREW, 2ND THROTTLE VALVE SET
main21821-25010
2182125180SCREW, 2ND THROTTLE VALVE SET
main21821-25180
2182126400SCREW, 2ND THROTTLE VALVE SET
main21821-26400
2182128010SCREW, 2ND THROTTLE VALVE SET
main21821-28010
2182131140SCREW, 2ND THROTTLE VALVE SET
main21821-31140
2183138010SCREW, POWER PISTON STOP
main21831-38010
2183215320SCREW(FOR CHOKE LEVER ADAPTER SET)
main21832-15320
2184538010SCREW(FOR LEVER SET)
main21845-38010
2186445100SPRING(FOR 1ST THROTTLE ARM)
main21864-45100
2188738010WASHER(FOR CONNECTING LINK SETTING)
main21887-38010
9033903005
main90339-03005
9050712005
main90507-12005
9111140618
main91111-40618
9311913012
main93119-13012
9331915010
main93319-15010
9411040800
main94110-40800
9451100500
main94511-00500
9451100800
main94511-00800
9451200600
main94512-00600
9461110300
main94611-10300
9461110400
main94611-10400
9461210500
main94612-10500
9541119930
main95411-19930
