Toyota SPRINTER — BATTERY CARRIER

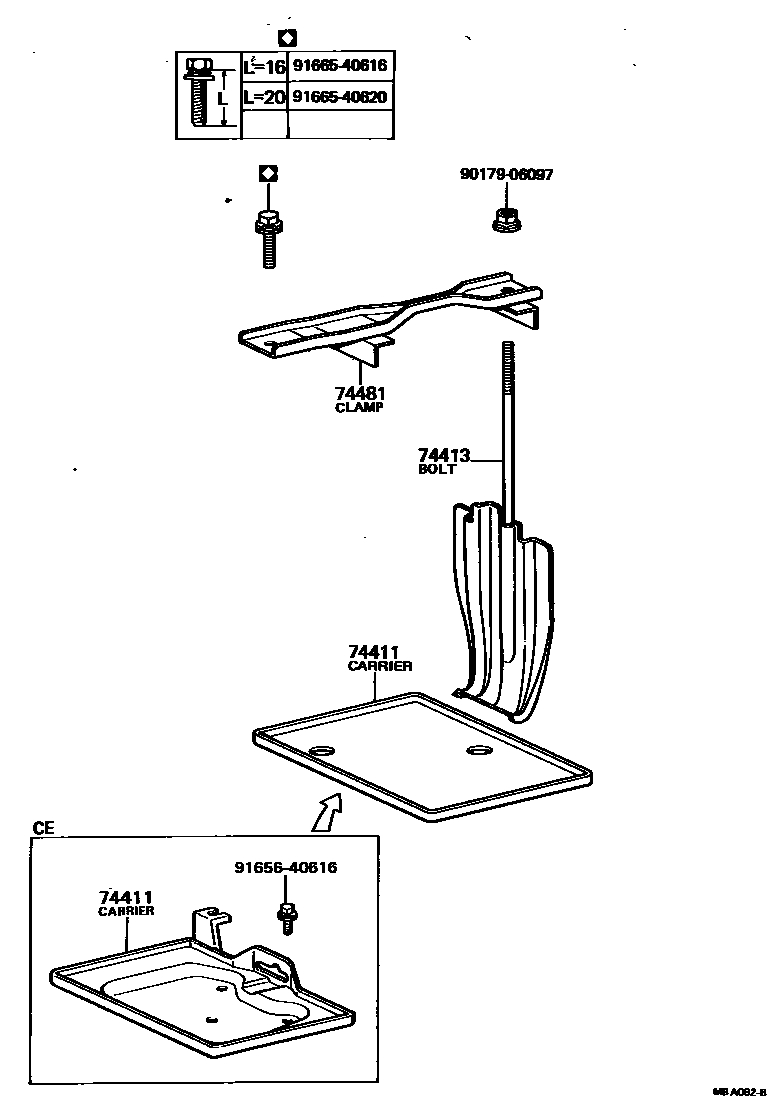

Parts diagram
74411CARRIER, BATTERY
main74403-12010i198202-198304
LH,W/50D20L
main74411-12120i198301-198304
LH,W/55D23L
main74411-12130i198202-198304
RH,W/50D20R
main74431-14010i197903-198304
W/NS40ZAL,NS40SL
main74431-14020i197903-198304
W/NS60L,N40L,COLD SPEC
74413BOLT, BATTERY CLAMP
main74402-12010i198202-198304
RH
main74407-12060i197903-198304
main74407-12070i198202-198304
LH
74481CLAMP, BATTERY HOLD DOWN
main74404-12110i197903-198304
main74404-12150i198301-198304
LH,W/55D23L
main74404-12180i198202-198304
LH,W/50D20L
main74406-12010i198202-198304
RH,W/50D20R
9017906097
main90179-06097
9165640616
main91656-40616
9166540616
main91665-40616
9166540620
main91665-40620

7 parts on this diagram · 1 diagram in section

BATTERY CARRIER for Toyota SPRINTER

This section contains 7 genuine Toyota parts for the BATTERY CARRIER system of the Toyota SPRINTER. Key components include: CARRIER, BATTERY, BOLT, BATTERY CLAMP, CLAMP, BATTERY HOLD DOWN.
