Toyota SPRINTER — BATTERY & BATTERY CABLE

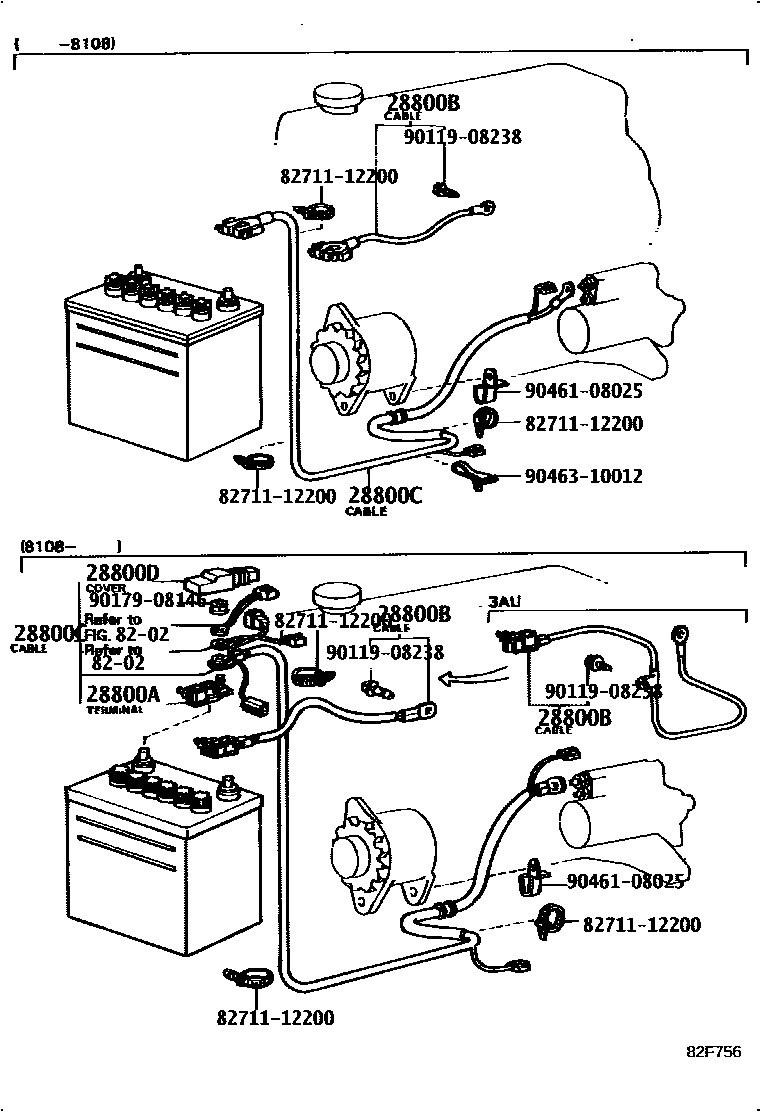

Parts diagram

28800ATERMINAL, BATTERY POSITIVE

main90982-05005i198202-198304

main90982-05019i198108-198304

28800BCABLE, BATTERY TO GROUND

main82046-12120i197903-198108

main82046-12150i197906-198108

main82113-12010i198108-198304

main82113-12020i198108-198304

main82113-12050i198202-198304

LH BATTERY,COLD SPEC

main82113-12060i198108-198304

main82113-12070i198202-198304

RH BATTERY,COLD SPEC

28800CCABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)

main82021-12170i197903-198108

main82021-12190i197903-198108

COLD SPEC

main82021-12200i197903-198108

main82021-12210i197903-198108

COLD SPEC

main82021-12220i197903-198108

main82021-12240i197903-198108

COLD SPEC

main82021-12240i197908-198008

main82112-12010i198108-198304

main82112-12020i198108-198304

COLD SPEC

main82112-12030i198108-198304

main82112-12040i198108-198304

COLD SPEC

main82112-12070i198202-198304

LH BATTERY

main82112-12080i198202-198304

RH BATTERY,COLD SPEC

main82112-12130i198108-198304

main82112-12140i198108-198304

COLD SPEC

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-12150i198108-198304

main82821-12150i198202-198304

LH BATTERY

main82821-22100i198202-198210

RH BATTERY,COLD SPEC

main82821-22110i198210-198304

RH BATTERY,COLD SPEC

8202WIRING & CLAMP

→ Go to FIG 82-02

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

9011908238

main90119-08238

9017908146

main90179-08146

9046108025

main90461-08025

9046310012

main90463-10012

10 parts on this diagram · 2 diagrams in section

BATTERY & BATTERY CABLE for Toyota SPRINTER

This section contains 15 genuine Toyota parts for the BATTERY & BATTERY CABLE system of the Toyota SPRINTER. Key components include: TERMINAL, BATTERY POSITIVE, CABLE, BATTERY TO GROUND, CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH), COVER, CONNECTOR(FOR BATTERY TERMINAL), PLATE, BATTERY CAUTION.
