Toyota SPRINTER — BATTERY & BATTERY CABLE

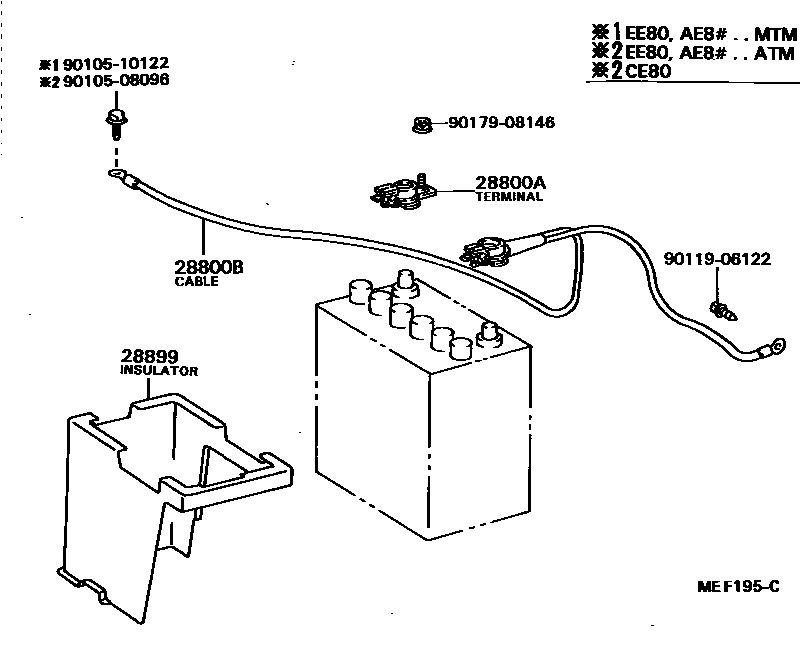

Parts diagram

28800ATERMINAL, BATTERY POSITIVE

main90982-05018i198305-198411

main90982-05022i198305-198411

main90982-05027i198505-198610

main90982-05028i198610-198704

main90982-05030i198411-198704

28800BCABLE, BATTERY TO GROUND

main82123-12050i198305-198704

main82123-12070i198305-198505

main82123-12100i198505-198704

28899INSULATOR, BATTERY

main28899-64010i198504-198704

BATTERY=80D26L(NX110-5L)

main28899-64020i198504-198704

BATTERY=95D31L(NX120-7L)

9010508096

main90105-08096

9010510122

main90105-10122

9011906122

main90119-06122

9017908146

main90179-08146

7 parts on this diagram · 1 diagram in section

BATTERY & BATTERY CABLE for Toyota SPRINTER

This section contains 7 genuine Toyota parts for the BATTERY & BATTERY CABLE system of the Toyota SPRINTER. Key components include: TERMINAL, BATTERY POSITIVE, CABLE, BATTERY TO GROUND, INSULATOR, BATTERY.
