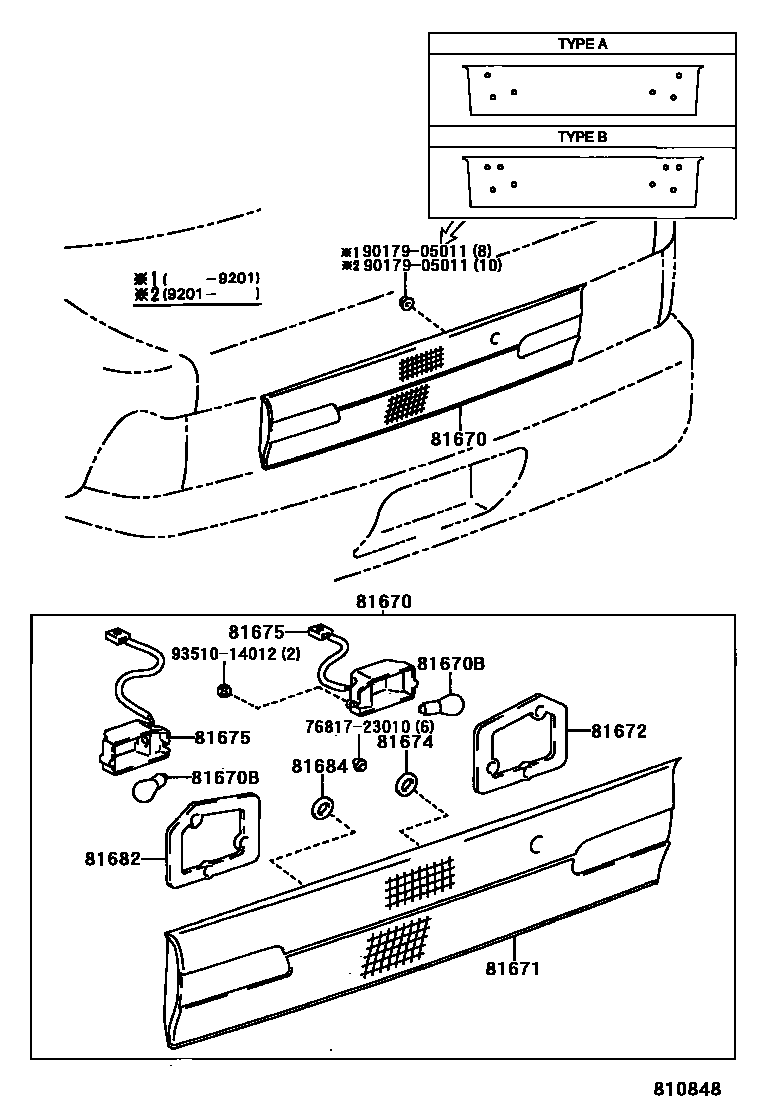

Toyota SPRINTER — BACK UP LAMP
81670LAMP ASSY, BACK-UP, RH
81670BBULB(FOR BACK-UP LAMP)
81671LENS, BACK-UP LAMP, RH
81672GASKET, BACK-UP LAMP LENS, RH
81674GASKET, BACK-UP LAMP BODY, RH
81675SOCKET & WIRE, BACK-UP LAMP
81682GASKET, BACK UP LAMP LENS, LH
81684GASKET, BACK UP LAMP BODY, LH
7681723010CLIP, BACK DOOR OUTSIDE GARNISH
main76817-23010
9017905011
main90179-05011
9351014012
main93510-14012
11 parts on this diagram · 2 diagrams in section
