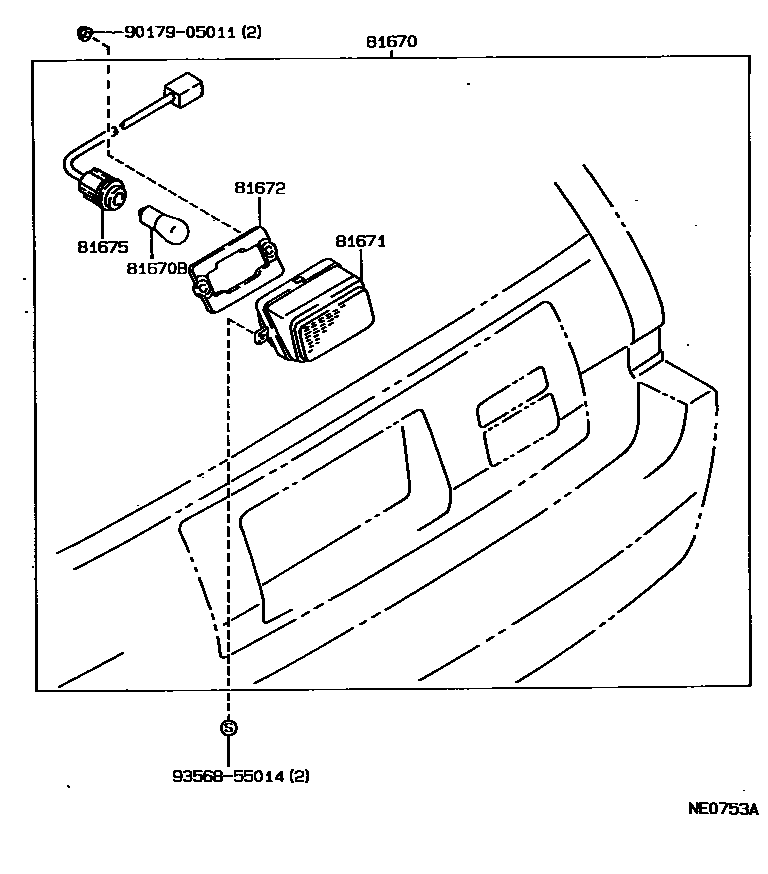

Toyota SPRINTER — BACK UP LAMP

81670LAMP ASSY, BACK-UP, RH

main81670-12010iAE95..WG;CE95..SE198802-199106

81670BBULB(FOR BACK-UP LAMP)

main99132-11210iAE95..WG;CE95..SE198802-199106

81671LENS, BACK-UP LAMP, RH

main81671-12010iAE95..WG;CE95..SE198802-199106

81672GASKET, BACK-UP LAMP LENS, RH

main81672-12010iAE95..WG;CE95..SE198802-199106

81675SOCKET & WIRE, BACK-UP LAMP

main81675-12010iAE95..WG;CE95..SE198802-199106

9017905011

main90179-05011

9356855014

main93568-55014

7 parts on this diagram · 1 diagram in section
