Toyota SPRINTER — BACK UP LAMP

81670LAMP ASSY, BACK-UP, RH

main81670-12020i198505-198704

81670BBULB(FOR BACK-UP LAMP)

main99132-11230×2i198505-198704

81671LENS, BACK-UP LAMP, RH

main81671-12020i198505-198704

81674GASKET, BACK-UP LAMP BODY, RH

main81674-12020i198505-198704

81675SOCKET & WIRE, BACK-UP LAMP

main81675-12020×2i198505-198704

81680LAMP ASSY, BACK UP, LH

main81680-12010i198505-198704

81681LENS, BACK-UP LAMP, LH

main81681-12010i198505-198704

81684GASKET, BACK UP LAMP BODY, LH

main81674-12020i198505-198704

9017905095

main90179-05095

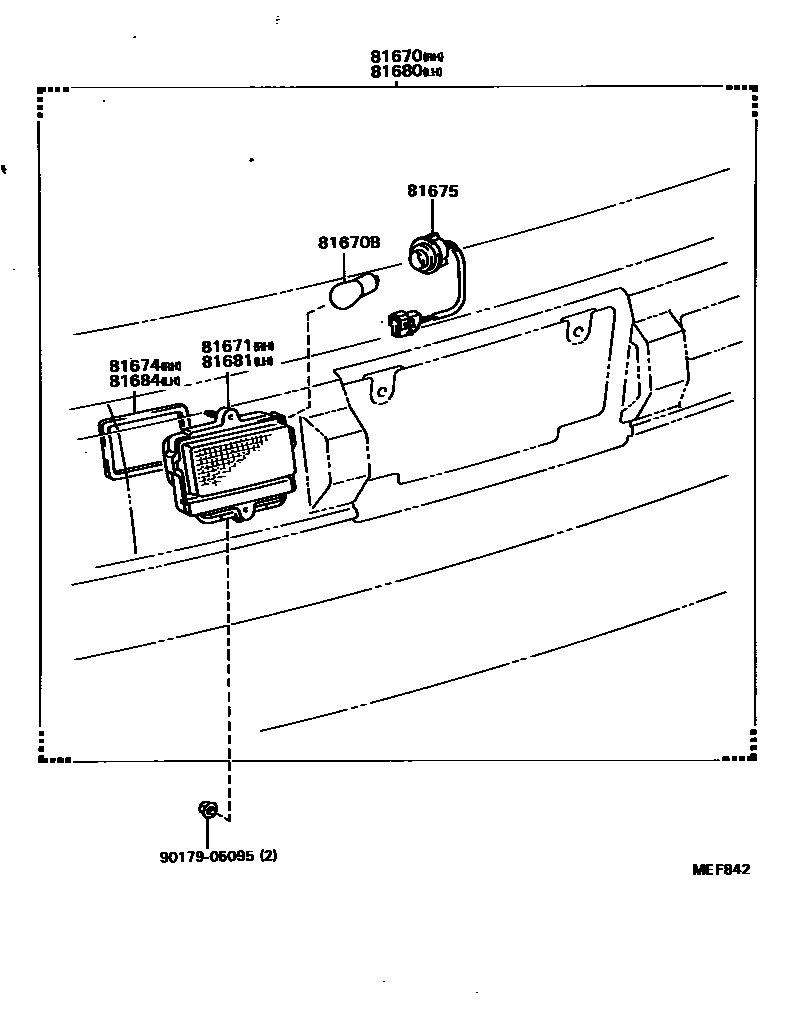

9 parts on this diagram · 1 diagram in section

BACK UP LAMP for Toyota SPRINTER

This section contains 9 genuine Toyota parts for the BACK UP LAMP system of the Toyota SPRINTER. Key components include: LAMP ASSY, BACK-UP, RH, BULB(FOR BACK-UP LAMP), LENS, BACK-UP LAMP, RH, GASKET, BACK-UP LAMP BODY, RH, SOCKET & WIRE, BACK-UP LAMP.
