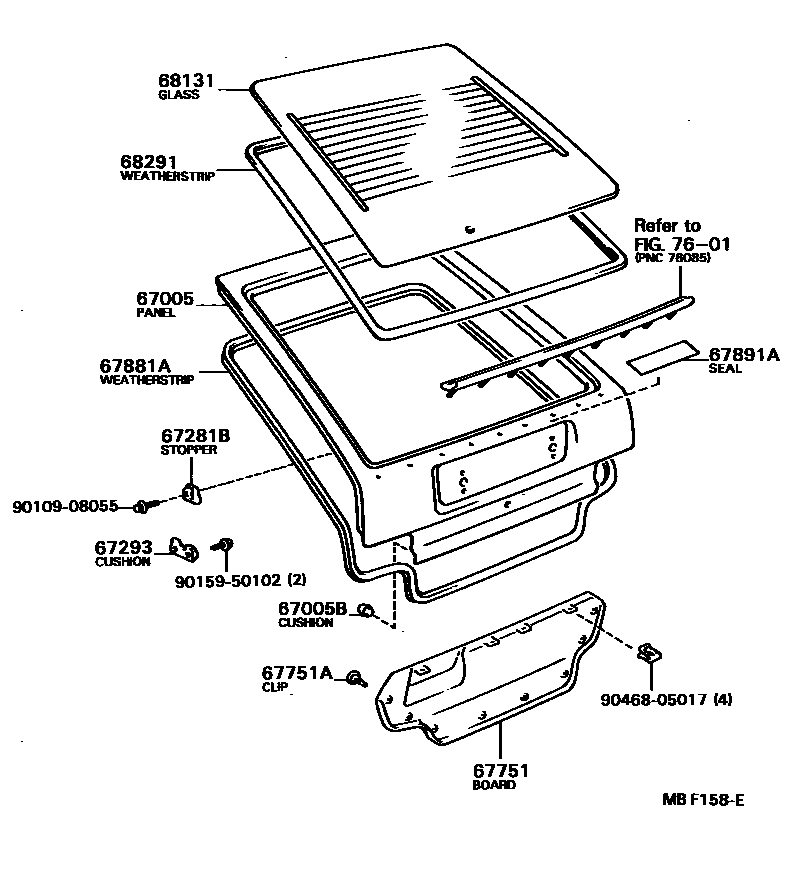

Toyota SPRINTER — BACK DOOR PANEL & GLASS
67005PANEL SUB-ASSY, BACK DOOR
W/O RR WIPER
W/RR WIPER
W/O RR WIPER
W/O RR WIPER
W/RR WIPER
W/RR WIPER
67005BCUSHION(FOR BACK DOOR PANEL)
67281BSTOPPER, BACK DOOR, LOWER
67293CUSHION, BACK DOOR LOWER STOPPER
67751BOARD, BACK DOOR TRIM
W/O RR WIPER,MAROON,RED/MAROON,TRIM3#
W/O RR WIPER,GRAY,GRAY,TRIM1#
W/O RR WIPER,BLUE,BLUE,TRIM8#
W/O RR WIPER,BROWN,BROWN,TRIM4#
W/RR WIPER,MAROON,RED/MAROON,TRIM3#
W/RR WIPER,GRAY,GRAY,TRIM1#
W/RR WIPER,BLUE,BLUE,TRIM8#
W/RR WIPER,BROWN,BROWN,TRIM4#
67751ACLIP(FOR BACK DOOR TRIM BOARD)
MAROON,RED/MAROON,TRIM3#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
MAROON,SEPIA BROWN,TRIM3#
67881AWEATHERSTRIP, BACK DOOR
COLD SPEC
67891ASEAL, BACK DOOR
68131GLASS, BACK DOOR
W/RR WIPER,*EHTT,T=4.0
W/O RR WIPER,*EHTT,T=4.0
W/RR WIPER,*EHT,T=4.0,BRONZE
W/O RR WIPER,*EHT,T=4.0,BRONZE
68291WEATHERSTRIP, BACK DOOR GLASS
7601MUDGUARD & SPOILER
9010908055
main90109-08055
9015950102
main90159-50102
9046805017
main90468-05017
14 parts on this diagram · 1 diagram in section
BACK DOOR PANEL & GLASS for Toyota SPRINTER
This section contains 14 genuine Toyota parts for the BACK DOOR PANEL & GLASS system of the Toyota SPRINTER. Key components include: PANEL SUB-ASSY, BACK DOOR, CUSHION(FOR BACK DOOR PANEL), STOPPER, BACK DOOR, LOWER, CUSHION, BACK DOOR LOWER STOPPER, BOARD, BACK DOOR TRIM.
