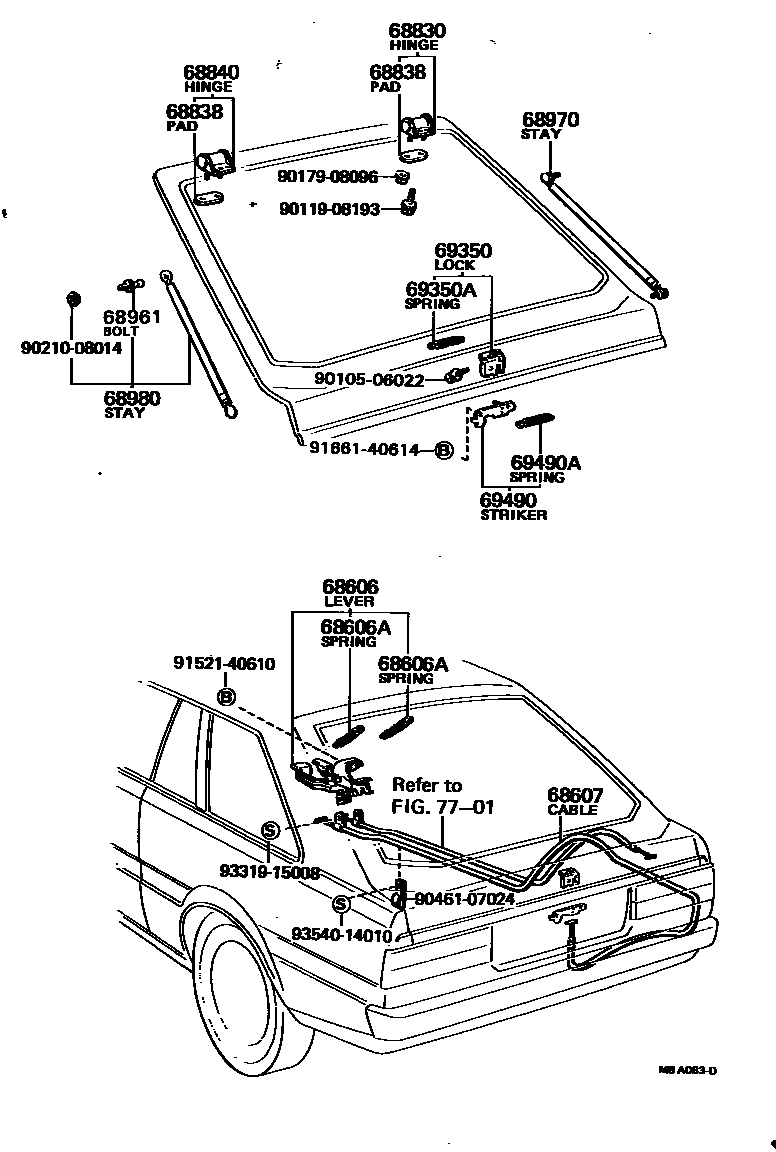

Toyota SPRINTER — BACK DOOR LOCK & HANDLE

68606LEVER SUB-ASSY, BACK DOOR LOCK OPEN

main64606-12030iAE70,KE70,TE71..(CP,LB)..(DX,GT,SE,SR,SX,TRR,XL)198108-198304

68606ASPRING, TENSION(FOR BACK DOOR LOCK OPEN LEVER)

main90506-09004×2iAE70,KE70,TE7#..(CP,LB)..(GT,SE,SR,ST,TRR,XL)197903-198108

68607CABLE SUB-ASSY, BACK DOOR LOCK CONTROL

main64607-12070iAE70,KE70,TE71..(CP,LB)..(DX,GT,SE,SR,SX,TRR,XL)198108-198304

sub64607-20070

68830HINGE ASSY, BACK DOOR, RH

main68801-14020iAE70,KE70,TE7#..CP,LB197903-198304

sub68801-14021

68838PAD, BACK DOOR HINGE, NO.1

main68838-14020×2iAE70,KE70,TE7#..CP,LB197903-198304

68840HINGE ASSY, BACK DOOR, LH

main68801-14020iAE70,KE70,TE7#..CP,LB197903-198304

sub68801-14021

68961BOLT, BACK DOOR STAY

main68961-12010×4iAE70,KE70,TE71..CP,LB198303-198304

main68961-14010×4iAE70,KE70,TE7#..CP,LB197903-198303

68970STAY ASSY, BACK DOOR, RH

main68950-19105iAE70,KE70,TE7#..CP197903-198304

main68950-19115iAE70,KE70,TE70..LB..(DX,SX,XL)197903-198304

W/O RR WIPER

main68950-19125iAE70,KE70,TE7#..LB197903-198304

W/RR WIPER

68980STAY ASSY, BACK DOOR

main68950-19105iAE70,KE70,TE7#..CP197903-198304

main68950-19115iAE70,KE70,TE70..LB..(DX,SX,XL)197903-198304

W/O RR WIPER

main68950-19125iAE70,KE70,TE7#..LB197903-198304

W/RR WIPER

69350LOCK ASSY, BACK DOOR

main69350-20010iAE70,KE70,TE7#..CP,LB197903-198304

sub69350-12080

69350ASPRING(FOR BACK DOOR LOCK)

main90506-07006iAE70,KE70,TE7#..CP,LB197903-198304

69490STRIKER ASSY, BACK DOOR LOCK

main69430-12040iAE70,KE70,TE7#..CP,LB198007-198304

sub69430-20030

main69430-20020iAE70,KE70,TE7#..CP,LB197903-198007

sub69430-20030

69490ASPRING(FOR BACK DOOR LOCK STRIKER)

main90506-08001iAE70,KE70,TE7#..CP,LB197903-198007

main90506-08107iAE70,KE70,TE7#..CP,LB198007-198304

7701

9010506022

main90105-06022

9011908193

main90119-08193

9017908096

main90179-08096

9021008014

main90210-08014

9046107024

main90461-07024

9152140610

main91521-40610

9166140614

main91661-40614

9331915008

main93319-15008

9354014010

main93540-14010

23 parts on this diagram · 1 diagram in section
