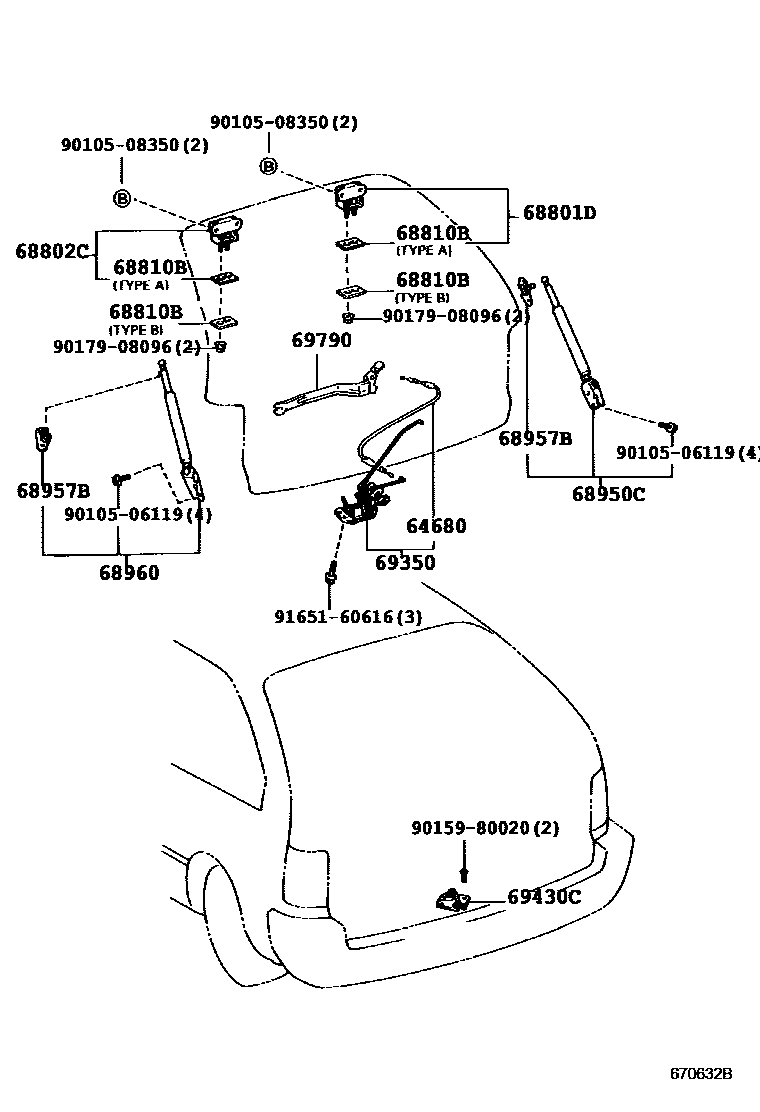

Toyota SPRINTER — BACK DOOR LOCK & HANDLE

64680CABLE ASSY, BACK DOOR LOCK CONTROL

main64680-13010iCE106,108,109,EE102,103,104,106,107,108199109-199510

main64680-13011iCE10#,EE10#199510-199603

sub64680-13030

main64680-13031iAE109,CE10#,EE10#199603-199804

main64680-13032iAE109,CE10#,EE10#199804

68801DHINGE SUB-ASSY, BACK DOOR, RH

main68801-13090iAE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108199109

68802CHINGE SUB-ASSY, BACK DOOR, LH

main68801-13090iAE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108199109

68810BPAD, BACK DOOR HINGE

main68838-13010×2iEE103..XL;EE102,103..(3FC,4F)..(DX,DXJ);AE109,CE106,108,109,EE104,106,107,108199205

TYPE A,T=1.1

main68863-13010iEE103..5F..DX;CE10#,EE102..4FC,5F199804

68950CSTAY ASSY, BACK DOOR, RH

main68950-19775iAE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108..CTD,DX,DXJ,L199109

main68950-19785iCE106,EE102,106..MTM..DX199201-199704

68957BBRACKET, BACK DOOR STAY, LOWER

main68957-13020×2iAE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108199109

68960STAY ASSY, BACK DOOR, LH

main68960-19465iAE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108..CTD,DX,DXJ,L199109

main68960-19475iCE106,EE102,106..MTM..DX199201-199704

69350LOCK ASSY, BACK DOOR

main69350-13110iCE106,EE106..CTD199109-199401

main69350-13130iCE106,EE106..CTD199109-199401

main69350-13170iCE106,EE102..CTD,DXJ199401-199603

main69350-13172iCE106,EE102..CTD,DXJ199603-199709

main69350-13173iCE106,EE102..CTD,DXJ199709-199804

main69350-13174iCE107,EE102..DXJ199804

main69350-13180iCE106,108,109,EE102,103,104..DX,L,XL199401-199603

main69350-13182iAE109,CE10#,EE10#..DX,L,XL199603-199709

main69350-13183iAE109,CE10#,EE10#199709-199804

main69350-13184iEE103..XL;AE109,CE10#,EE104;EE102,103..(3FC,4F)..(DX,DXJ)199804

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-13010iAE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108199109

69790CONTROL ASSY, BACK DOOR LOCK

main69790-13010iAE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108199109

9010506119

main90105-06119

9010508350

main90105-08350

9015980020

main90159-80020

9017908096

main90179-08096

9165160616

main91651-60616

15 parts on this diagram · 1 diagram in section
