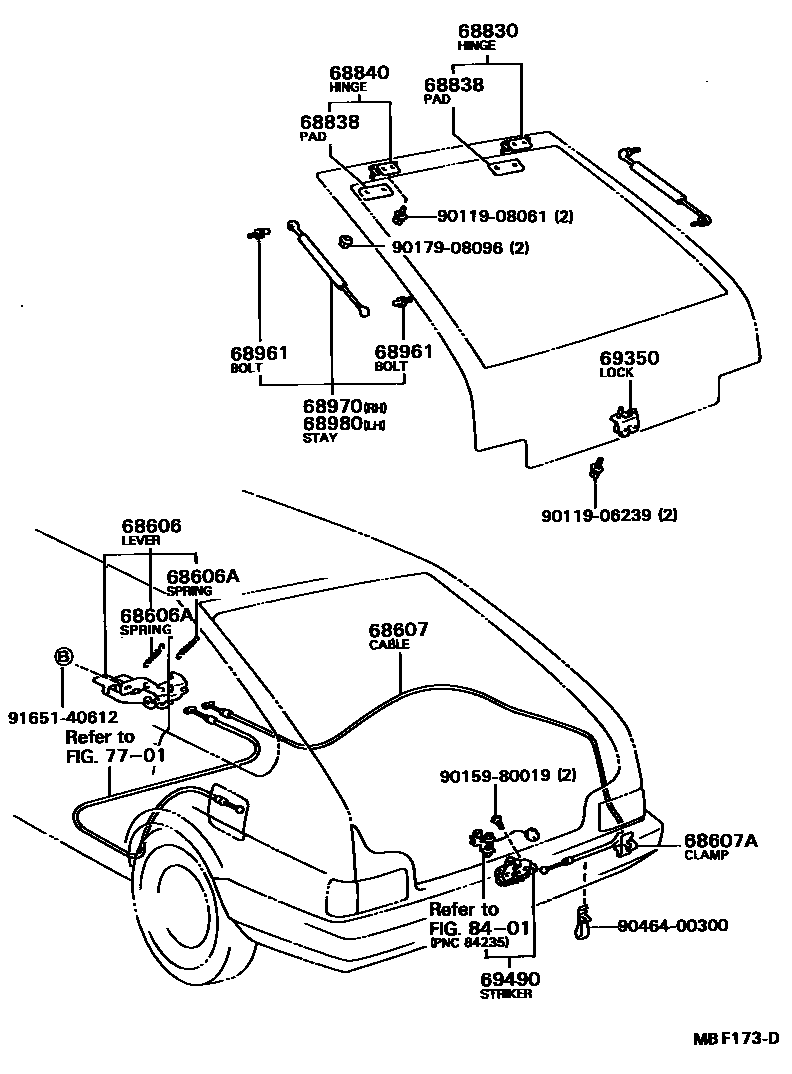

Toyota SPRINTER — BACK DOOR LOCK & HANDLE

68606LEVER SUB-ASSY, BACK DOOR LOCK OPEN

main64606-12060iAE81,82,CE80,EE80..5D198305-198704

68606ASPRING, TENSION(FOR BACK DOOR LOCK OPEN LEVER)

main90506-09034×2iAE81,82,CE80,EE80..5D198305-198704

68607CABLE SUB-ASSY, BACK DOOR LOCK CONTROL

main64607-12170iAE81,82,CE80,EE80..5D198305-198704

sub77035-24021

68607ACLAMP, NO.1(FOR BACK DOOR LOCK CONTROL CABLE)

main69749-12010iAE81,82,CE80,EE80..5D198305-198704

68830HINGE ASSY, BACK DOOR, RH

main68801-20020iAE81,82,CE80,EE80..5D198305-198704

sub68801-20021

68838PAD, BACK DOOR HINGE, NO.1

main68838-14021×2iAE81,82,CE80,EE80..5D198305-198704

sub68838-14022

68840HINGE ASSY, BACK DOOR, LH

main68801-20020iAE81,82,CE80,EE80..5D198305-198704

sub68801-20021

68961BOLT, BACK DOOR STAY

main68961-32010×4iAE81,82,CE80,EE80..5D198305-198704

sub68961-20140

68970STAY ASSY, BACK DOOR, RH

main68950-19415iAE81,CE80,EE80..5D..(SX,XL)198305-198704

W/O RR WIPER

main68950-19425iAE81,82,CE80,EE80..5D198305-198704

W/RR WIPER

68980STAY ASSY, BACK DOOR

main68950-19415iAE81,CE80,EE80..5D..(SX,XL)198305-198704

W/O RR WIPER

main68950-19425iAE81,82,CE80,EE80..5D198305-198704

W/RR WIPER

69350LOCK ASSY, BACK DOOR

main69350-12040iAE81,82,CE80,EE80..5D198305-198704

69490STRIKER ASSY, BACK DOOR LOCK

main69430-12140iAE81,82,CE80,EE80..5D..(SX,XL)198305-198704

main69430-12180iAE81,82..ZX198305-198704

7701

8401

9011906239

main90119-06239

9011908061

main90119-08061

9015980019

main90159-80019

9017908096

main90179-08096

9046400300

main90464-00300

9165140612

main91651-40612

20 parts on this diagram · 1 diagram in section
