Toyota SPRINTER — ASH RECEPTACLE

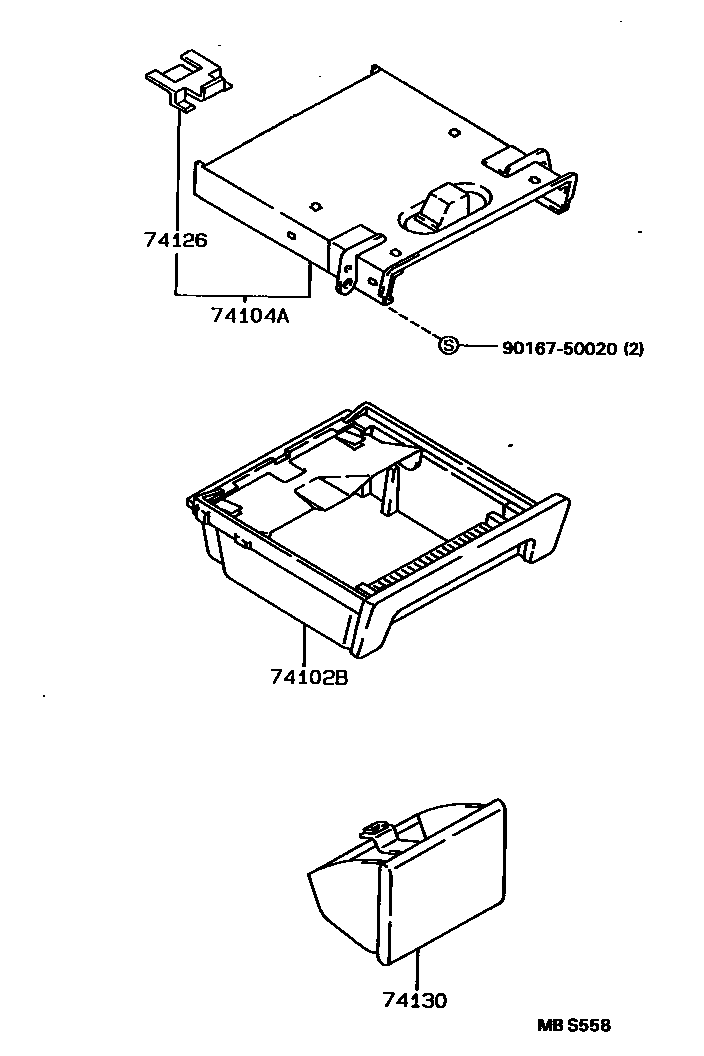

74102BBOX SUB-ASSY, FRONT ASH RECEPTACLE

main74102-12200-01iAE92,95..AV2,GT198705-199108

BLACK,TRIM1#

main74102-12200-02iAE91,95,CE90,95,EE90..MX,SE198705-199108

MAROON,TRIM3#

main74102-12200-03iAE91,95,CE9#,EE9#198705-199108

SHADOW GRAY,TRIM1#

main74102-12200-04iAE91,95,CE90,EE90..4D,5D198905-198908

DARK BLUE,TRIM8#

main74102-12200-05iCE96,EE96,98..DX,XL;AE91,95,CE90,EE90..AV1,G,L,LX,MX,RVS,SE,XI198705-198905

DARK BEIGE,TRIM4#

74104ARETAINER SUB-ASSY, FRONT ASH RECEPTACLE

main74104-12170iCE96,EE96..CTD,STD198808-199108

main74104-12180iCE96,EE96..CTD,STD198808-199108

74126SUPPORT, FRONT ASH RECEPTACLE RET, NO.3

main74126-32010iAE9#,CE9#,EE9#198806-199108

74130RECEPTACLE ASSY, REAR ASH

main74109-32010-02iAE91,95,CE90,EE90..MX,SE198705-198807

MAROON,TRIM3#

sub74109-20080

main74109-32010-05iCE96,EE96,98..DX,XL;AE91,95,CE90,EE90..AV1,G,L,LX,MX,RVS,SE,XI198705-198905

DARK BEIGE,TRIM4#

sub74109-20080

main74109-32010-13iAE9#,CE9#,EE9#198705-199009

SHADOW GRAY,TRIM1#

sub74109-20080

main74109-32010-B2iAE9#,CE9#,EE9#199009-199108

SHADOW GRAY,TRIM1#

sub74109-20080

main74109-32010-D0iAE91,95,CE90,95,EE90..MX,SE198807-199106

MAROON,TRIM3#

sub74109-20080

main74109-32010-J0iAE91,95,CE9#,EE9#198908-199108

DARK BLUE,TRIM8#

sub74109-20080

9016750020

main90167-50020

5 parts on this diagram · 1 diagram in section
