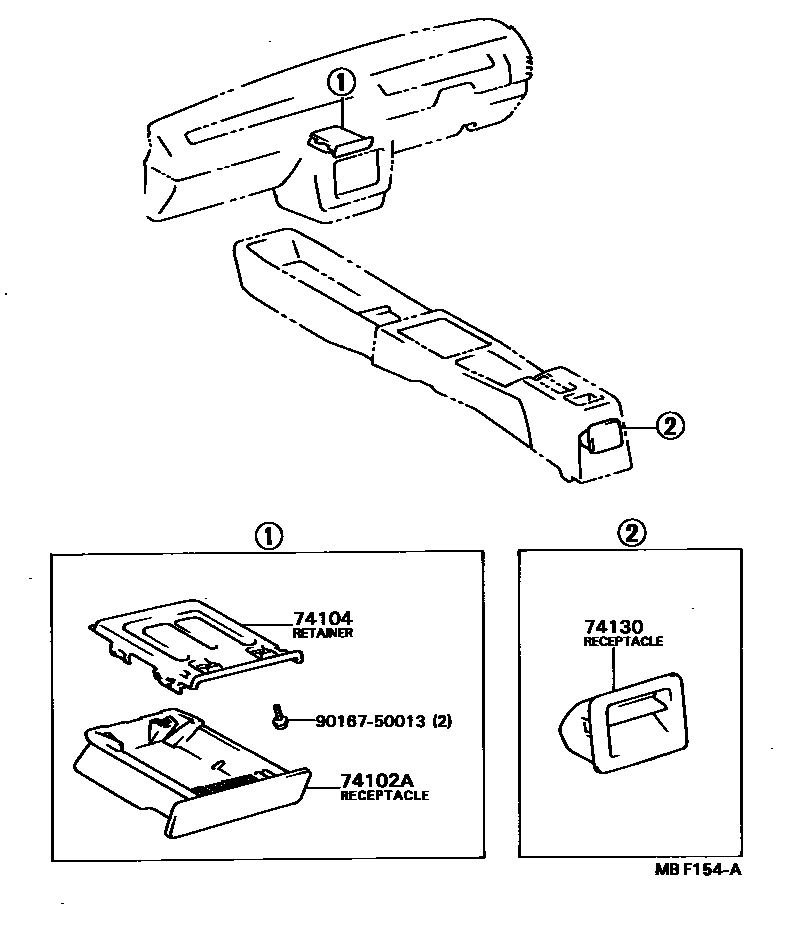

Toyota SPRINTER — ASH RECEPTACLE

74102ARECEPTACLE ASSY, FRONT ASH

main74102-12170-02iAE8#,CE80198305-198408

MAROON,RED/MAROON,TRIM3#

sub74102-12190

main74102-12170-03iAE8#,CE80,EE80198305-198704

GRAY,GRAY,TRIM1#

sub74102-12190

main74102-12170-04iAE8#,CE80..DX,SE,SPD,SR,SX,XL,ZX198305-198505

BLUE,BLUE,TRIM8#

sub74102-12190

main74102-12170-06iAE8#,CE80,EE80..DX,SE,SPD,SR,SX,XL,ZX198408-198704

BROWN,BROWN,TRIM4#

sub74102-12190

74104RETAINER SUB-ASSY, ASH RECEPTACLE, NO.1

main74104-12150iAE8#,CE80,EE80198305-198704

74130RECEPTACLE ASSY, REAR ASH

main74130-12040-14iAE8#,CE80..DX,SE,SPD,SR,SX,XL,ZX198305-198505

BLUE,BLUE,TRIM8#

sub74109-20080

main74130-12040-22iAE8#,CE80198305-198408

MAROON,RED/MAROON,TRIM3#

sub74109-20080

main74130-12040-23iAE8#,CE80,EE80198305-198704

GRAY,GRAY,TRIM1#

sub74109-20080

main74130-12040-36iAE8#,CE80,EE80..DX,SE,SPD,SR,SX,XL,ZX198408-198704

BROWN,BROWN,TRIM4#

sub74109-20080

9016750013

main90167-50013

4 parts on this diagram · 1 diagram in section
