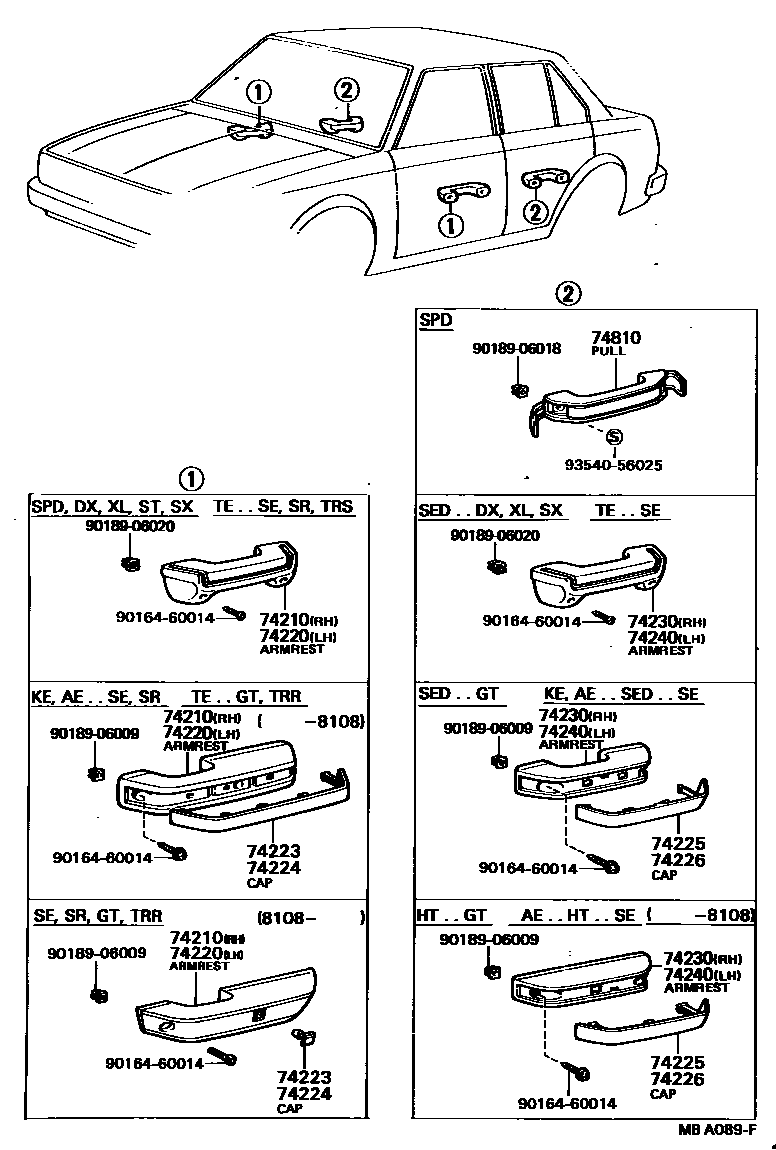

Toyota SPRINTER — ARMREST & VISOR

0001 1 0002 1

74210ARMREST ASSY, FRONT, RH

main74210-12030-01iAE70,KE70,TE70..DX,SPD,ST,XL197903-198108

BLACK,BLACK,TRIM2#

main74210-12030-04iTE70..SE,SR197908-198108

BLUE,BLUE,TRIM8#

main74210-12030-26iAE70,KE70,TE70..(DX,SPD,XL)..4D197903-198008

LIGHT BROWN,BROWN,TRIM4#

main74210-12030-36iAE70,KE70,TE70..(DX,ST,XL)..2D197903-198108

DARK BROWN,BROWN,TRIM4#

main74210-12030-46iAE70,KE70,TE70..(DX,SPD,XL)..4D198008-198108

LIGHT BROWN,BROWN,TRIM4#

main74210-12050-01iAE70,TE71..GT,SE,SR,TRR197903-198108

BLACK,BLACK,TRIM2#

main74210-12050-04iAE70,TE71..GT,SE,SR,TRR197903-198108

BLUE,BLUE,TRIM8#

main74210-12050-06iAE70,TE71..(GT,SE)..4D197903-198008

LIGHT BROWN,BROWN,TRIM4#

main74210-12050-16iAE70,TE71..(GT,SE,SR,TRR)..2D197903-198108

DARK BROWN,BROWN,TRIM4#

main74210-12050-26iAE70,TE71..(GT,SE)..4D198008-198108

LIGHT BROWN,BROWN,TRIM4#

main74210-12060-01iAE70,CE70,KE70,TE71..GT,SE,SR,TRR198108-198304

BLACK,BLACK,TRIM2#

main74210-12060-04iAE70,CE70,KE70,TE71..GT,SE,SR,TRR198108-198304

BLUE,BLUE,TRIM8#

main74210-12060-06iAE70,CE70,KE70,TE71..GT,SE,SR,TRR198108-198304

DARK BROWN,BROWN,TRIM4#

74220ARMREST ASSY, FRONT, LH

main74210-12030-01iTE70..SE,SR197908-198108

BLACK,BLACK,TRIM2#

main74210-12030-04iAE70,CE70,KE70,TE71..DX,SPD,SX,TRS,XL198108-198304

BLUE,BLUE,TRIM8#

main74210-12030-26iAE70,KE70,TE70..(DX,SPD,XL)..4D197903-198008

LIGHT BROWN,BROWN,TRIM4#

main74210-12030-36iAE70..HT..5F..SE198010-198010

LIMITED EDITION,DARK BROWN,BROWN,TRIM4#

main74210-12030-46iAE70,KE70,TE70..(DX,SPD,XL)..4D198008-198108

LIGHT BROWN,BROWN,TRIM4#

main74210-12050-01iAE70,TE71..GT,SE,SR,TRR197903-198108

BLACK,BLACK,TRIM2#

main74210-12050-04iAE70,TE71..GT,SE,SR,TRR197903-198108

BLUE,BLUE,TRIM8#

main74210-12050-06iAE70,TE71..GT,SE,SR,TRR197903-198008

LIGHT BROWN,BROWN,TRIM4#

main74210-12050-16iAE70,TE71..(GT,SE,SR,TRR)..2D197903-198108

DARK BROWN,BROWN,TRIM4#

main74210-12050-26iAE70,TE71..(GT,SE)..4D198008-198108

LIGHT BROWN,BROWN,TRIM4#

main74220-12020-01iAE70,CE70,KE70,TE71..GT,SE,SR,TRR198108-198304

BLACK,BLACK,TRIM2#

main74220-12020-04iAE70,CE70,KE70,TE71..GT,SE,SR,TRR198108-198304

BLUE,BLUE,TRIM8#

main74220-12020-06iAE70,CE70,KE70,TE71..GT,SE,SR,TRR198108-198304

DARK BROWN,BROWN,TRIM4#

74223CAP, DOOR ARMREST, RH

main74223-12020-01iAE70,TE71..GT,SE,SR,TRR197903-198108

BACK,BLACK,TRIM2#

main74223-12020-04iAE70,TE71..GT,SE,SR,TRR197903-198108

BLUE,BLUE,TRIM8#

main74223-12020-06iAE70,TE71..(GT,SE)..4D197903-198008

LIGHT BROWN,BROWN,TRIM4#

main74223-12020-16iAE70,TE71..(GT,SE,SR,TRR)..2D197903-198108

DARK BROWN,BROWN,TRIM4#

main74223-12020-26iAE70,TE71..(GT,SE)..4D198008-198108

LIGHT BROWN,BROWN,TRIM4#

main74223-12030-01iAE70,CE70,KE70,TE71..GT,SE,SR,TRR198108-198304

FR DOOR,BLACK,BLACK,TRIM2#

main74223-12030-04iAE70,CE70,KE70,TE71..GT,SE,SR,TRR198108-198304

FR DOOR,BLUE,BLUE,TRIM8#

main74223-12030-06iAE70,CE70,KE70,TE71..GT,SE,SR,TRR198108-198304

FR DOOR,DARK BROWN,BROWN,TRIM4#

74224CAP, DOOR ARMREST, LH

main74223-12020-01iAE70,TE71..GT,SE,SR,TRR197903-198108

BLACK,BLACK,TRIM2#

main74223-12020-04iAE70,TE71..GT,SE,SR,TRR197903-198108

BLUE,BLUE,TRIM8#

main74223-12020-06iAE70,TE71..(GT,SE)..4D197903-198008

LIGHT BROWN,BROWN,TRIM4#

main74223-12020-16iAE70,TE71..(GT,SE,SR,TRR)..2D197903-198108

DARK BROWN,BROWN,TRIM4#

main74223-12020-26iAE70,TE71..(GT,SE)..4D198008-198108

LIGHT BROWN,BROWN,TRIM4#

main74223-12030-01iAE70,CE70,KE70,TE71..GT,SE,SR,TRR198108-198304

BLACK,BLACK,TRIM2#

main74223-12030-04iAE70,CE70,KE70,TE71..GT,SE,SR,TRR198108-198304

BLUE,BLUE,TRIM8#

main74223-12030-06iAE70,CE70,KE70,TE71..GT,SE,SR,TRR198108-198304

DARK BROWN,BROWN,TRIM4#

74225CAP, DOOR ARMREST, REAR RH

main74225-12030-01iAE70,CE70,KE70,TE71..(GT,SE)..4D198108-198304

RR DOOR,RH,BLACK,BLACK,TRIM2#

main74225-12030-04iAE70,CE70,KE70,TE71..(GT,SE)..4D198108-198304

RR DOOR,RH,BLUE,BLUE,TRIM8#

main74225-12030-06iAE70,TE71..(GT,SE)..4D197903-198008

LIGHT BROWN,BROWN,TRIM4#

main74225-12030-16iAE70,TE71..(GT,SE)..4D198008-198108

LIGHT BROWN,BROWN,TRIM4#

main74225-12030-26iAE70,CE70,KE70,TE71..(GT,SE)..4D198108-198304

RR DOOR,RH,DARK BROWN,BROWN,TRIM4#

main74263-12010-01iAE70,TE71..HT..(GT,SE)197903-198108

BLACK,BLACK,TRIM2#

main74263-12010-04iAE70,TE71..HT..(GT,SE)197903-198108

BLUE,BLUE,TRIM8#

main74263-12010-06iAE70,TE71..HT..(GT,SE)197903-198108

DARK BROWN,BROWN,TRIM4#

74226CAP, DOOR ARMREST, REAR LH

main74226-12030-01iAE70,CE70,KE70,TE71..(GT,SE)..4D198108-198304

RR DOOR,LH,BLACK,BLACK,TRIM2#

main74226-12030-04iAE70,TE71..(GT,SE)..4D197903-198108

BLUE,BLUE,TRIM8#

main74226-12030-06iAE70,TE71..(GT,SE)..4D197903-198008

LIGHT BROWN,BROWN,TRIM4#

main74226-12030-16iAE70,TE71..(GT,SE)..4D198008-198108

LIGHT BROWN,BROWN,TRIM4#

main74226-12030-26iAE70,CE70,KE70,TE71..(GT,SE)..4D198108-198304

RR DOOR,LH,DARK BROWN,BROWN,TRIM4#

main74264-12010-01iAE70,TE71..HT..(GT,SE)197903-198108

BLACK,BLACK,TRIM2#

main74264-12010-04iAE70,TE71..HT..(GT,SE)197903-198108

BLUE,BLUE,TRIM8#

main74264-12010-06iAE70,TE71..HT..(GT,SE)197903-198108

DARK BROWN,BROWN,TRIM4#

74230ARMREST ASSY, REAR, RH

main74210-12030-01iAE70,KE70,TE70..(DX,XL)..4D197903-198108

BLACK,BLACK,TRIM2#

main74210-12030-04iTE70..SE..4D197908-198108

BLUE,BLUE,TRIM8#

main74210-12030-26iAE70,KE70,TE70..(DX,XL)..4D197903-198008

LIGHT BROWN,BROWN,TRIM4#

main74210-12030-36iAE70,CE70,KE70..(DX,SX,XL)..4D198108-198304

DARK BROWN,BROWN,TRIM4#

main74210-12030-46iTE70..SE..4D198008-198108

LIGHT BROWN,BROWN,TRIM4#

main74250-12010-01iAE70,CE70,KE70,TE71..(GT,SE)..4D198108-198304

BLACK,BLACK,TRIM2#

main74250-12010-04iAE70,CE70,KE70,TE71..(GT,SE)..4D198108-198304

BLUE,BLUE,TRIM8#

main74250-12010-06iAE70,TE71..(GT,SE)..4D197903-198008

LIGHT BROWN,BROWN,TRIM4#

main74250-12010-16iAE70,TE71..(GT,SE)..4D198008-198108

LIGHT BROWN,BROWN,TRIM4#

main74250-12010-26iAE70,CE70,KE70,TE71..(GT,SE)..4D198108-198304

DARK BROWN,BROWN,TRIM4#

main74250-12020-01iAE70,TE71..HT..(GT,SE)197903-198108

BLACK,BLACK,TRIM2#

main74250-12020-04iAE70,TE71..HT..(GT,SE)197903-198108

BLUE,BLUE,TRIM8#

main74250-12020-06iAE70,TE71..HT..(GT,SE)197903-198108

DARK BROWN,BROWN,TRIM4#

74240ARMREST ASSY, REAR, LH

main74210-12030-01iAE70,CE70,KE70..(DX,SX,XL)..4D198108-198304

BLACK,BLACK,TRIM2#

main74210-12030-04iAE70,KE70,TE70..(DX,XL)..4D197903-198108

BLUE,BLUE,TRIM8#

main74210-12030-26iAE70,KE70,TE70..(DX,XL)..4D197903-198008

LIGHT BROWN,BROWN,TRIM4#

main74210-12030-36iAE70,CE70,KE70..(DX,SX,XL)..4D198108-198304

DARK BROWN,BROWN,TRIM4#

main74210-12030-46iTE70..SE..4D198008-198108

LIGHT BROWN,BROWN,TRIM4#

main74260-12010-01iAE70,CE70,KE70,TE71..(GT,SE)..4D198108-198304

BLACK,BLACK,TRIM2#

main74260-12010-04iAE70,TE71..(GT,SE)..4D197903-198108

BLUE,BLUE,TRIM8#

main74260-12010-06iAE70,TE71..(GT,SE)..4D197903-198008

LIGHT BROWN,BROWN,TRIM4#

main74260-12010-16iAE70,TE71..(GT,SE)..4D198008-198108

LIGHT BROWN,BROWN,TRIM4#

main74260-12010-26iAE70,CE70,KE70,TE71..(GT,SE)..4D198108-198304

DARK BROWN,BROWN,TRIM4#

main74260-12020-01iAE70,TE71..HT..(GT,SE)197903-198108

BLACK,BLACK,TRIM2#

main74260-12020-04iAE70,TE71..HT..(GT,SE)197903-198108

BLUE,BLUE,TRIM8#

main74260-12020-06iAE70,TE71..HT..(GT,SE)197903-198108

DARK BROWN,BROWN,TRIM4#

74810PULL ASSY, DOOR, INSIDE

main74641-16010-01×2iCE70,KE70..SPD197903-198304

BLACK,BLACK,TRIM2#

main74641-16010-04×2iCE70,KE70..SPD197903-198304

BLUE,BLUE,TRIM8#

main74641-16010-06×2iKE70..SPD197903-198008

LIGHT BROWN,BROWN,TRIM4#

main74641-16010-26×2iCE70,KE70..SPD198008-198304

DARK BROWN,BROWN,TRIM4#

9016460014

main90164-60014

9018906009

main90189-06009

9018906018

main90189-06018

9018906020

main90189-06020

9354056025

main93540-56025

14 parts on this diagram · 2 diagrams in section
