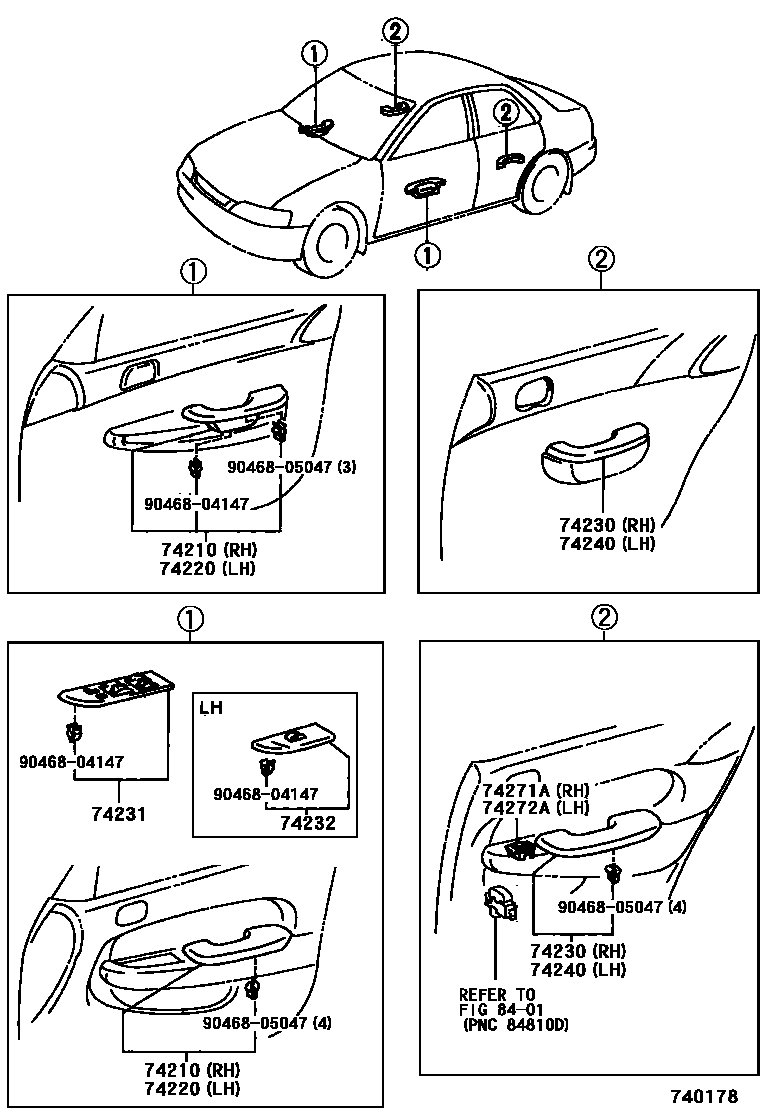

Toyota SPRINTER — ARMREST & VISOR

0001 1�-���� 0002 1����� & ����������

74210ARMREST ASSY, FRONT, RH

main74210-12160-B0iAE11#,CE11#..SCRU,SEVIN199505-199704

SHADOW GRAY,TRIM1#

main74210-12160-E0iAE110,114,CE11#..SEVIN199505-199704

OAK,TRIM4#

main74210-12180-B1iAE110,114,CE11#..SEVIN199704-199804

main74210-12180-B2iAE110,114,CE11#..SEVIN199804-200008

main74210-16120-B1iAE110,114,CE11#,EE111..LX,XEVIN199505-199704

SHADOW GRAY,TRIM1#

main74210-16120-B3iAE110,114,CE11#,EE111..XEVIN199704-199804

MD.CHARCOAL,TRIM14

main74210-16120-B4iAE110,114,CE11#,EE111..LX,XEVIN199704-199804

MD.GRAY,TRIM11

main74210-16120-E0iAE110,114,CE11#,EE111..XEVIN199505-199704

OAK,TRIM4#

74220ARMREST ASSY, FRONT, LH

main74220-12100-B0iAE11#,CE11#..SCRU,SEVIN199505-199704

SHADOW GRAY,TRIM1#

main74220-12100-E0iAE110,114,CE11#..SEVIN199505-199704

OAK,TRIM4#

main74220-12160-B0iAE111199704-200008

SHADOW GRAY,TRIM1#

main74220-12160-B1iAE110,114,CE11#..SEVIN199704-199804

MD.GRAY,TRIM11

main74220-12160-B2iAE110,114,CE11#..SEVIN199804-200008

MD.CHARCOAL,TRIM1#

main74220-16100-B1iAE110,114,CE11#,EE111..LX,XEVIN199505-199704

SHADOW GRAY,TRIM1#

main74220-16100-B3iAE110,114,CE11#,EE111..XEVIN199704-199804

MD.CHARCOAL,TRIM14

main74220-16100-B4iAE110,114,CE11#,EE111..LX,XEVIN199704-199804

MD.GRAY,TRIM11

main74220-16100-E0iAE110,114,CE11#,EE111..XEVIN199505-199704

OAK,TRIM4#

74230ARMREST ASSY, REAR, RH

main74210-12160-B0iAE11#,CE11#..SCRU,SEVIN199505-199704

SHADOW GRAY,TRIM1#

main74210-12160-E0iAE110,114,CE11#..SEVIN199505-199704

OAK,TRIM4#

main74210-12180-B0iAE111199704-200008

main74210-12180-B1iAE110,114,CE11#..SEVIN199704-199804

main74210-12180-B2iAE110,114,CE11#..SEVIN199704-199804

main74250-16060-B1iAE110,114,CE11#,EE111..LX,XEVIN199505-199704

SHADOW GRAY,TRIM1#

main74250-16060-B2iAE110,114,CE11#,EE111..LX,XEVIN199804-200008

MD.CHARCOAL,TRIM1#

main74250-16060-B3iAE110,114,CE11#,EE111..LX,XEVIN199704-199804

MD.GRAY,TRIM11

main74250-16060-E0iAE110,114,CE11#,EE111..XEVIN199505-199704

OAK,TRIM4#

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-12140-B0iAE11#,CE11#,EE111199505-199704

SHADOW GRAY,TRIM1#

main74231-12140-E0iAE110,114,CE11#,EE111..SEVIN,XEVIN199505-199704

OAK,TRIM4#

main74231-12240-B0iAE111199704-200008

SHADOW GRAY,TRIM1#

main74231-12240-B1iAE110,114,CE11#,EE111..SEVIN,XEVIN199704-199804

MD.GRAY,TRIM1#

main74231-12240-B2iAE110,114,CE11#,EE111..SEVIN,XEVIN199704-199804

MD.CHARCOAL,TRIM14

main74231-12270iAE110,114,CE11#..SEVIN199608-199704

main74231-12350-E1iAE110,114,CE11#..SEVIN199704-199804

main74231-12350-E2iAE110,114,CE11#..SEVIN200004-200008

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-12120-B0iAE11#,CE11#,EE111199505-199704

SHADOW GRAY,TRIM1#

main74232-12120-B1iAE110,114,CE11#,EE111..SEVIN,XEVIN199704-199804

MD.GRAY,TRIM1#

main74232-12120-B2iAE110,114,CE11#,EE111..SEVIN,XEVIN199704-199804

MD.CHARCOAL,TRIM14

main74232-12120-E0iAE110,114,CE11#,EE111..SEVIN,XEVIN199505-199704

OAK,TRIM4#

main74232-12210iAE110,114,CE11#..SEVIN199608-199704

main74232-12260-E1iAE110,114,CE11#..SEVIN199704-199804

main74232-12260-E2iAE110,114,CE11#..SEVIN199804-200008

74240ARMREST ASSY, REAR, LH

main74220-12100-B0iAE11#,CE11#..SCRU,SEVIN199505-199704

SHADOW GRAY,TRIM1#

main74220-12100-E0iAE110,114,CE11#..SEVIN199505-199704

OAK,TRIM4#

main74220-12160-B0iAE111199704-200008

SHADOW GRAY,TRIM1#

main74220-12160-B1iAE110,114,CE11#..SEVIN199704-199804

MD.GRAY,TRIM11

main74220-12160-B2iAE110,114,CE11#..SEVIN199704-199804

MD.CHARCOAL,TRIM14

main74250-16060-B1iAE110,114,CE11#,EE111..LX,XEVIN199505-199704

SHADOW GRAY,TRIM1#

main74250-16060-B2iAE110,114,CE11#,EE111..XEVIN199704-199804

MD.CHARCOAL,TRIM14

main74250-16060-B3iAE110,114,CE11#,EE111..LX,XEVIN199704-199804

MD.GRAY,TRIM11

main74250-16060-E0iAE110,114,CE11#,EE111..XEVIN199505-199704

OAK,TRIM4#

74271APANEL, REAR DOOR ARMREST BASE, UPPER RH

main84656-12030iAE110,114,CE11#..SEVIN199608-199704

main84656-12080-E1iAE110,114,CE11#..SEVIN199804-199808

main84656-12080-E2iAE110,114,CE11#..SEVIN199808-200008

main84656-32020-B0iAE111199704-200008

SHADOW GRAY,TRIM1#

main84656-32020-B1iAE110,114,CE11#..SEVIN199704-199804

MD.GRAY,TRIM11

main84656-32020-B2iAE110,114,CE11#..SEVIN199704-199804

MD.CHARCOAL,TRIM14

main84656-32020-E0iAE110,114,CE11#..SEVIN199505-199704

OAK,TRIM4#

74272APANEL, REAR DOOR ARMREST BASE, UPPER LH

main84656-12030iAE110,114,CE11#..SEVIN199608-199704

main84656-12080-E1iAE110,114,CE11#..SEVIN199804-199808

main84656-12080-E2iAE110,114,CE11#..SEVIN199808-200008

main84656-32020-B0iAE111199704-200008

SHADOW GRAY,TRIM1#

main84656-32020-B1iAE110,114,CE11#..SEVIN199704-199804

MD.GRAY,TRIM11

main84656-32020-B2iAE110,114,CE11#..SEVIN199804-200008

MD.CHARCOAL,TRIM1#

main84656-32020-E0iAE110,114,CE11#..SEVIN199505-199704

OAK,TRIM4#

8401

9046804147

main90468-04147

9046805047

main90468-05047

11 parts on this diagram · 2 diagrams in section
