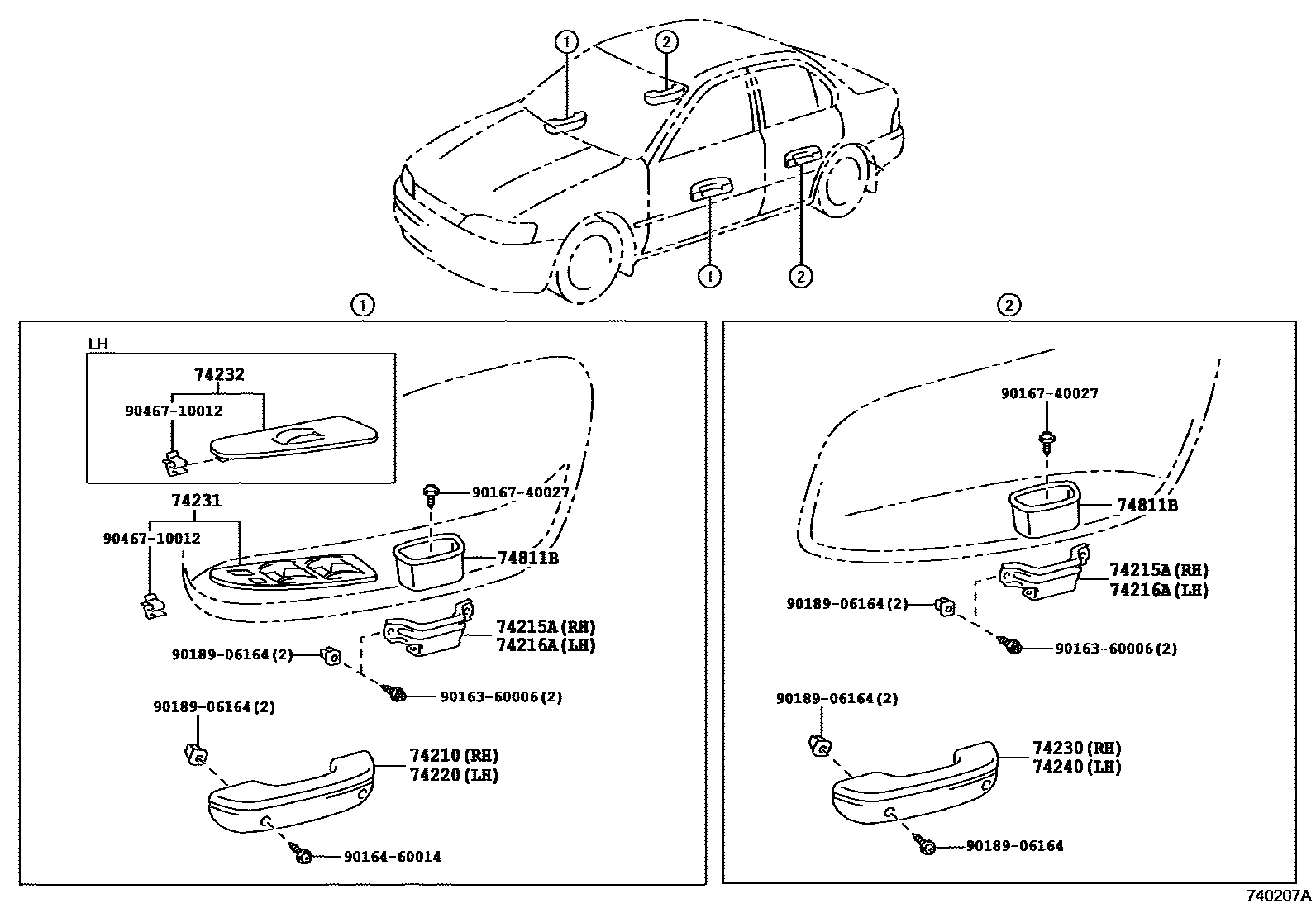

Toyota SPRINTER — ARMREST & VISOR

0001 1�-���� 0002 1�-���� 0003 1�-���� 0004 1�-���� 0005 1�-���� 0006 1�����

74210ARMREST ASSY, FRONT, RH

main74210-12220-B0iCE10#..DX,L,XL199804-200008

main74210-12220-K0iAE100,104,CE100,104,EE101..LX199305-199505

main74210-16060-K0iAE100,104,CE100,104,EE101..LX199106-199505

TAUPE,TRIM9#

sub74210-16061

main74210-16060-P0iAE100,104,109,CE10#,EE10#..DX,L,LX,XL199106-200008

SHADOW GRAY,TRIM1#

sub74210-16061

main74210-16060-W3iAE100,104,CE100,104,EE101..LX199106-199305

DARK BLUE,TRIM8#

sub74210-16061

main74210-16120-B1iAE109,CE10#,EE10#200008

SHADOW GRAY,TRIM1#

74215ABASE, DOOR ARMREST RH

main74215-12050×2iAE10#,CE100,104,EE101..GT,SEG,SEL,XE199106-199205

74216ABASE, DOOR ARMREST, LH

main74215-12050×2iAE10#,CE100,104,EE101..GT,SEG,SEL,XE199106-199205

74220ARMREST ASSY, FRONT, LH

main74210-16060-K0iAE100,104,CE100,104,EE101..LX199106-199505

TAUPE,TRIM9#

sub74210-16061

main74210-16060-P0iAE100,104,109,CE10#,EE10#..DX,L,LX,XL199106-200008

SHADOW GRAY,TRIM1#

sub74210-16061

main74210-16060-W3iAE100,104,CE100,104,EE101..LX199106-199305

DARK BLUE,TRIM8#

sub74210-16061

main74220-12150-B0iAE100,104,CE100,104,EE101..LX199305-199505

main74220-12150-K0iAE100,104,CE100,104,EE101..LX199305-199505

main74220-16100-B1iAE109,CE10#,EE10#200008

SHADOW GRAY,TRIM1#

74230ARMREST ASSY, REAR, RH

main74210-16060-K0iAE100,104,CE100,104,EE101..LX199106-199505

TAUPE,TRIM9#

sub74210-16061

main74210-16060-P0iAE100,104,CE100,104,EE101..DX,LX199106-199505

SHADOW GRAY,TRIM1#

sub74210-16061

main74210-16060-W3iAE100,104,CE100,104,EE101..LX199106-199305

DARK BLUE,TRIM8#

sub74210-16061

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-10011-B0iAE100,104,CE100,104,EE101..LX199305-199505

SHADOW GRAY,TRIM1#

main74231-10011-K0iAE100,104,CE100,104,EE101..LX199305-199505

TAUPE,TRIM9#

main74231-12130-K0iAE10#,CE100,104..SEG,SEL,XE199106-199205

TAUPE,TRIM9#

sub74231-12131

main74231-12130-P0iAE10#,CE100,104,EE101..GT,SEG,SEL,XE199304-199505

SHADOW GRAY,TRIM1#

sub74231-12131

main74231-12130-W3iAE10#,CE100,104,EE101..LX,SEG,SEL,XE199205-199304

DARK BLUE,TRIM8#

sub74231-12131

main74231-12250-B1iAE109,CE10#,EE10#200008-200206

SHADOW GRAY,TRIM1#

main74231-13010-B0iCE106,108,109,EE103,104..L,XL199401-199508

SHADOW GRAY,TRIM1#

main74231-13011-B0iCE10#,EE103,104..L,XL199508-199704

SHADOW GRAY,TRIM1#

main74231-13030-B0iAE109,CE10#,EE10#..DX,L,XL199704-200008

SHADOW GRAY,TRIM1#

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-10021-B0iAE100,104,CE100,104,EE101..LX199305-199505

SHADOW GRAY,TRIM1#

main74232-10021-K0iAE100,104,CE100,104,EE101..LX199305-199505

TAUPE,TRIM9#

main74232-12110-K0iAE10#,CE100,104,EE101..SEG,SEL,XE199304-199505

TAUPE,TRIM9#

main74232-12110-P0iAE10#,CE100,104,EE101..GT,LX,SEG,SEL,XE199205-199304

SHADOW GRAY,TRIM1#

main74232-12110-W3iAE10#,CE100,104..SEG,SEL,XE199106-199205

DARK BLUE,TRIM8#

74240ARMREST ASSY, REAR, LH

main74210-16060-K0iAE100,104,CE100,104,EE101..LX199106-199505

TAUPE,TRIM9#

sub74210-16061

main74210-16060-P0iAE100,104,CE100,104,EE101..DX,LX199106-199505

SHADOW GRAY,TRIM1#

sub74210-16061

main74210-16060-W3iAE100,104,CE100,104,EE101..LX199106-199305

DARK BLUE,TRIM8#

sub74210-16061

74811BHANDLE, DOOR PULL

main74811-12060-K0×4iAE10#,CE100,104,EE101..SEG,SEL,XE199106-199205

TAUPE,TRIM9#

main74811-12060-P0×4iAE10#,CE100,104,EE101..GT,LX,SEG,SEL,XE199205-199305

SHADOW GRAY,TRIM1#

main74811-12060-W3×4iAE10#,CE100,104,EE101..LX,SEG,SEL,XE199205-199305

DARK BLUE,TRIM8#

9016360006

main90163-60006

9016460014

main90164-60014

9016740027

main90167-40027

9018906164

main90189-06164

9046710012

main90467-10012

14 parts on this diagram · 6 diagrams in section
