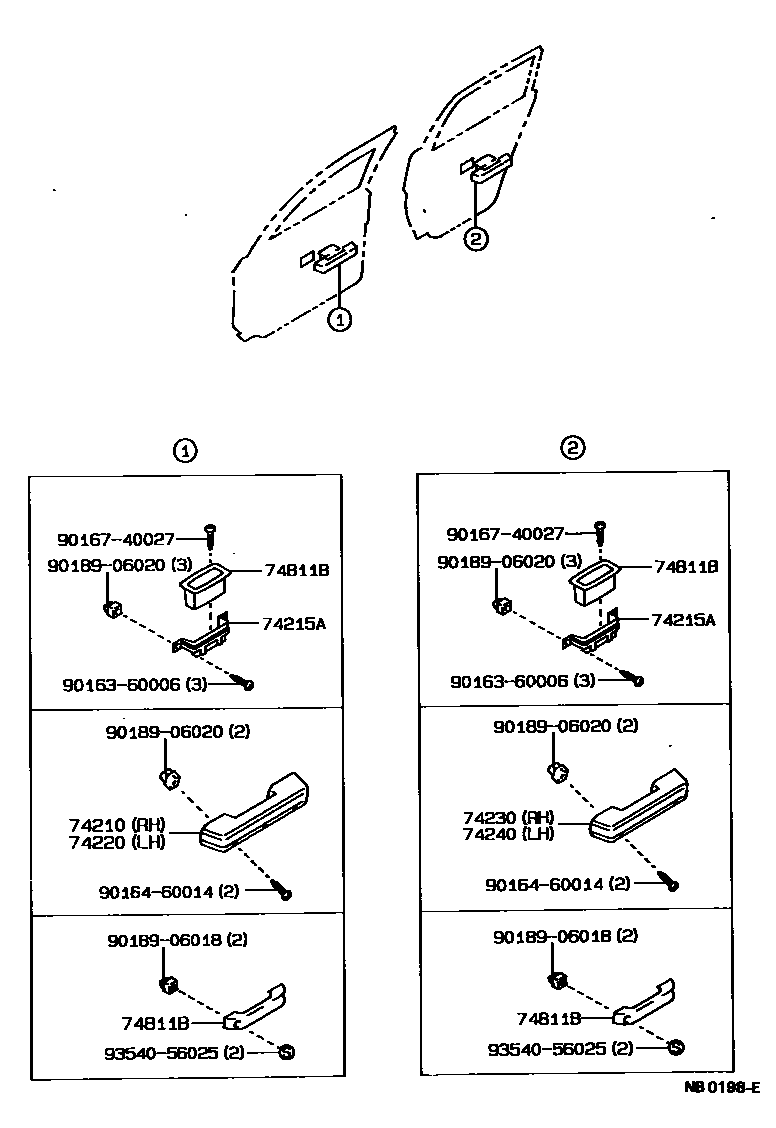

Toyota SPRINTER — ARMREST & VISOR

0001 1 0002 1 0003 1

74210ARMREST ASSY, FRONT, RH

main74210-10020-03iCE96,EE96,98..DX,XL198808-199108

GRAY,TRIM1#

main74210-10020-05iCE96,EE96,98..DX,XL198808-198908

DARK BEIGE,TRIM4#

main74210-10020-24iCE96,EE96,98..DX,XL198908-199108

DARK BLUE,TRIM8#

main74210-12110-03iCE90,EE90..DX,LX198905-199009

GRAY

main74210-12110-05iEE98..(3FC,5F)..XL198808-198908

main74210-12110-24iAE91,95,CE90,EE90..AV1,DX,L,LX198908-198909

main74210-12110-B1iAE91,95,CE90,95,EE90..DX,L,LX199009

SHADOW GRAY,TRIM1#

main74210-12110-J0iCE96,EE98..(3FC,4FC,5F)..XL198909-199108

DARK BLUE,TRIM8#

main74210-12130-03iAE91,95,CE90,95,EE90..MX198905-199009

main74210-12130-04iAE91,95,CE90,95,EE90..MX198905-199001

main74210-12130-B0iAE91,95,CE90,95,EE90..MX199009-199106

main74210-12130-D0iAE91,95,CE90,95,EE90..MX198905-199106

main74210-12130-J0iAE91,95,CE90,95,EE90..MX199001-199106

main74210-22061-22iAE91,95,CE90,EE90..MX198705-198905

MAROON,TRIM3#

main74210-22061-23iAE91,95,CE90,95,EE90..MX,RVS198705-199106

GRAY,TRIM1#

main74210-22061-24iAE91,95,CE90,EE90..MX198905-198908

DARK BLUE,TRIM8#

main74210-22061-25iCE90,EE90..MX198905-198908

DARK BEIGE

74215ABASE, DOOR ARMREST RH

main74215-12020×2iAE91..XS;AE9#,CE90,95..(GT,SE)..(DSL,EFI)198908-199106

main74215-12040×2iCE90..SE199005-199106

74220ARMREST ASSY, FRONT, LH

main74210-10020-03iCE96,EE96,98..DX,XL198808-199108

GRAY,TRIM1#

main74210-10020-05iCE96,EE96,98..DX,XL198808-198908

DARK BEIGE,TRIM4#

main74210-10020-24iCE96,EE96,98..DX,XL198908-199108

DARK BLUE,TRIM8#

main74210-12110-03iCE90,EE90..DX,LX198905-199009

GRAY

main74210-12110-05iAE95..AV1198905-198908

DARK BEIGE,TRIM4#

main74210-12110-24iCE96,EE98..(3FC,4FC,5F)..XL198908-198909

DARK BLUE,TRIM8#

main74210-12110-B1iAE95..LX199009-199106

SHADOW GRAY,TRIM1#

main74210-12110-J0iCE96,EE98..(3FC,4FC,5F)..XL198909-199108

DARK BLUE,TRIM8#

main74210-22061-22iAE91,95,CE90,EE90..MX198705-198905

MAROON,TRIM3#

main74210-22061-23iAE91,95,CE90,95,EE90..MX,RVS198705-199106

GRAY,TRIM1#

main74210-22061-24iAE91,95,CE90,EE90..MX198905-198908

DARK BLUE,TRIM8#

main74210-22061-25iCE90,EE90..MX198905-198908

DARK BEIGE

main74220-12070-02iAE91,95,CE90,95,EE90..MX198905-199001

main74220-12070-03iAE91,95,CE90,95,EE90..MX198905-199009

main74220-12070-04iAE91,95,CE90,95,EE90..MX198905-199001

main74220-12070-B0iAE91,95,CE90,95,EE90..MX199009-199106

main74220-12070-D0iAE91,95,CE90,95,EE90..MX199001-199106

main74220-12070-J0iAE91,95,CE90,95,EE90..MX199001-199106

74230ARMREST ASSY, REAR, RH

main74210-12110-02iCE90,EE90..MX198905-198909

MAROON,TRIM3#

main74210-12110-03iCE90,EE90..DX,LX,MX198905-199009

GRAY

main74210-12110-05iAE95..AV1,RVS198905-198908

DARK BEIGE,TRIM4#

main74210-12110-24iAE91,95,CE90,EE90..DX,L,LX,MX198905-198908

DARK BLUE,TRIM8#

main74210-12110-B1iCE90,95,EE90..DX,LX,MX199009-199106

SHADOW GRAY,TRIM1#

main74210-12110-D0iAE91,95,CE90,95,EE90..MX198909-199106

MAROON,TRIM3#

main74210-12110-J0iCE90,95,EE90..DX,LX,MX198909-199106

DARK BLUE,TRIM8#

74240ARMREST ASSY, REAR, LH

main74210-12110-02iCE90,EE90..MX198905-198909

MAROON,TRIM3#

main74210-12110-03iCE90,EE90..DX,LX,MX198905-199009

GRAY

main74210-12110-05iAE95..AV1,RVS198905-198908

DARK BEIGE,TRIM4#

main74210-12110-24iAE91,95,CE90,EE90..DX,L,LX,MX198905-198908

DARK BLUE,TRIM8#

main74210-12110-B1iCE90,95,EE90..DX,LX,MX199009-199106

SHADOW GRAY,TRIM1#

main74210-12110-D0iAE91,95,CE90,95,EE90..MX198909-199106

MAROON,TRIM3#

main74210-12110-J0iAE91,95..AV1,DX,L,LX,MX,RVS198909-199108

DARK BLUE,TRIM8#

74811BHANDLE, DOOR PULL

main69285-95403-03×2iCE96,EE96,98..DX,XL198808-199108

SHADOW GRAY,TRIM1#

sub69285-95404

main69285-95403-04×2iCE96,EE96,98..DX,XL198908-199108

DARK BLUE,TRIM8#

sub69285-95404

main69285-95403-25×2iCE96,EE96,98..DX,XL198808-198905

DARK BEIGE,TRIM4#

sub69285-95404

main74811-12040-02×4iAE91,95,CE90,95..SE198705-199106

MAROON,TRIM3#

main74811-12040-03×4iAE95..AV2198905-198908

SHADOW GRAY,TRIM1#

main74811-12040-04×4iAE91,95,CE90,95..AV2,G,SE,XS198908-199106

DARK BLUE,TRIM8#

main74811-12040-05×4iAE91,95,CE90..G,SE,XI198705-198905

DARK BEIGE,TRIM4#

9016360006

main90163-60006

9016460014

main90164-60014

9016740027

main90167-40027

9018906018

main90189-06018

9018906020

main90189-06020

9354056025

main93540-56025

12 parts on this diagram · 3 diagrams in section
