Toyota SPRINTER — ANTENNA

86300ANTENNA ASSY, W/HOLDER

main86300-12150iAE70,KE70,TE7#..4D197903-198108

main86300-12151iAE70,KE70,TE71..4D198108-198111

main86300-12152iAE70,CE70,KE70,TE71..4D198111-198304

main86300-12170iAE70,KE70,TE7#..2D197903-198108

main86300-12171iAE70,KE70,TE71..2D198108-198202

main86300-12172iAE70,KE70,TE71..2D198202-198304

86301POLE SUB-ASSY, ANTENNA

main86301-12020iAE70,KE70,TE7#..2D197903-198108

main86301-12021iAE70,KE70,TE71..2D198108-198202

main86301-12022iAE70,KE70,TE71..2D198202-198304

main86301-12150iAE70,KE70,TE71..4D197903-198111

main86301-12151iAE70,CE70,KE70,TE71..4D198111-198304

86393ORNAMENT, ANTENNA

main86392-12010iAE70,KE70,TE7#..4D197903-198108

main86392-12011iAE70,CE70,KE70,TE71..4D198108-198304

main86392-12020iAE70,KE70,TE7#..2D197903-198108

main86392-12021iAE70,KE70,TE71..2D198108-198304

86396NUT, ANTENNA

main86396-12010iAE70,KE70,TE71..2D198108-198304

main90179-12026iAE70,CE70,KE70,TE71..4D198108-198304

main90179-14001iAE70,KE70,TE7#..4D197903-198108

main90179-14002iAE70,KE70,TE7#..2D197903-198108

86397PLATE, ANTENNA EARTH

main86397-12010iAE70,CE70,KE70,TE71..4D198111-198304

main86397-12020iAE70,KE70,TE71..2D198202-198304

9011906005

main90119-06005

9046304340

main90463-04340

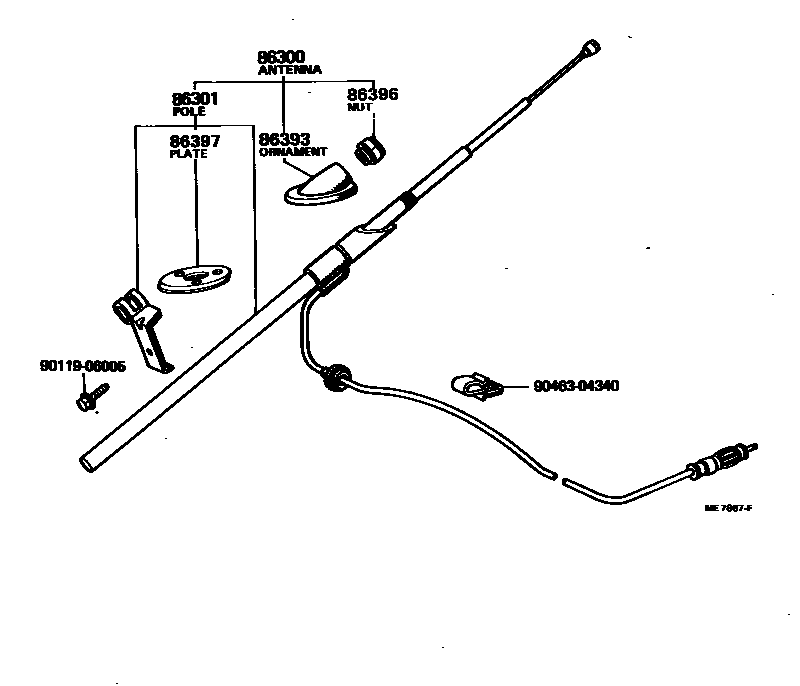

7 parts on this diagram · 1 diagram in section
