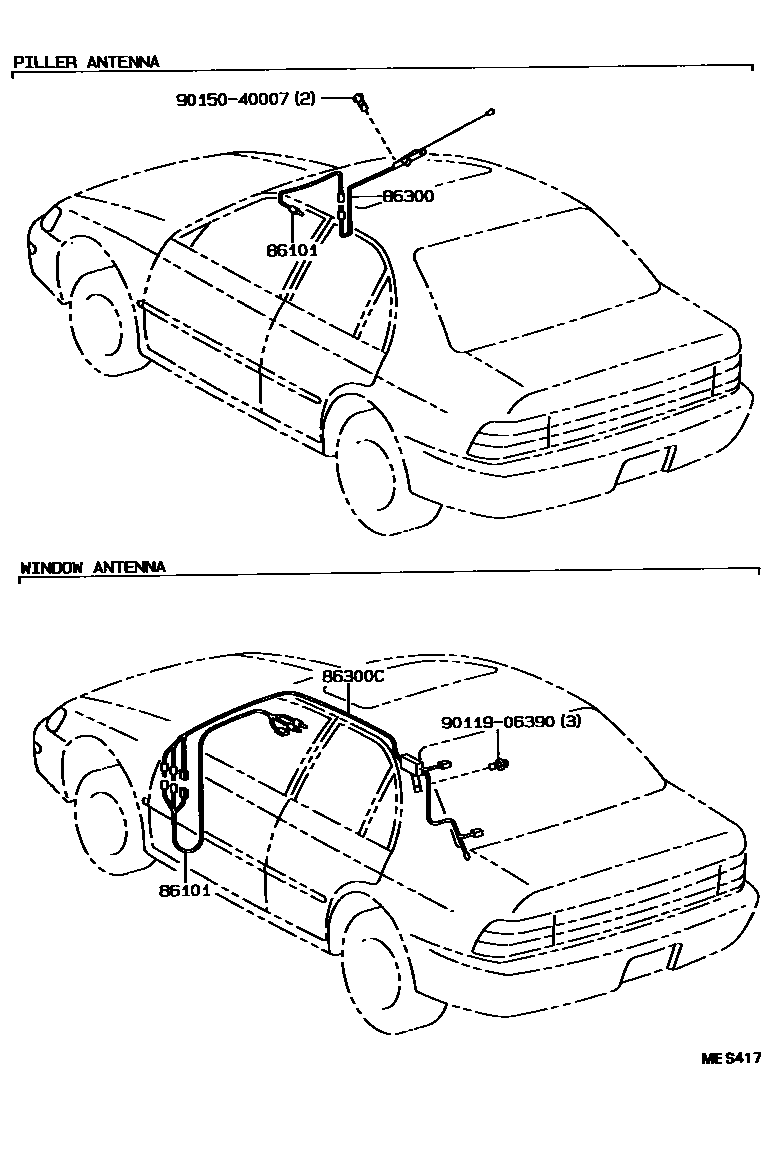

Toyota SPRINTER — ANTENNA

0001 1 0002 1

86101CORD SUB-ASSY, ANTENNA

main86101-12120iAE10#,CE100,104..GT,SEG,SEL199305-199505

main86101-12130iAE100,104,109,CE10#,EE10#..CTD,DX,DXJ,L,LX,XE,XL199305

main86101-12140iAE10#,CE100,104,EE101..GT,SEG,SEL,XE199106-199305

86300ANTENNA ASSY, W/HOLDER

main86300-12390iCE106,108,109,EE102,103,104,106,107,108199109-199501

main86300-12391iEE103..XL;CE106,108,109,EE104;EE102,103..(3FC,4F)..(DX,DXJ)199704

W/WHITE TAPE

main86300-12400iAE100,104,CE100,104,EE101..DX,LX199106-199305

main86300-12401iAE100,104,CE100,104,EE101..DX,LX,XE199409-199505

86300CANTENNA ASSY, AMPLIFIER, NO.2

main86300-12440iAE101..SEG199106-199505

main86300-12450iAE10#,CE100,104,EE101..GT,SEL,XE199106-199305

main86300-12500iAE10#,CE100,104,EE101..GT,SEL,XE199106-199305

main86300-12520iAE101..SEG199106-199505

9011906390

main90119-06390

9015040007

main90150-40007

5 parts on this diagram · 2 diagrams in section
