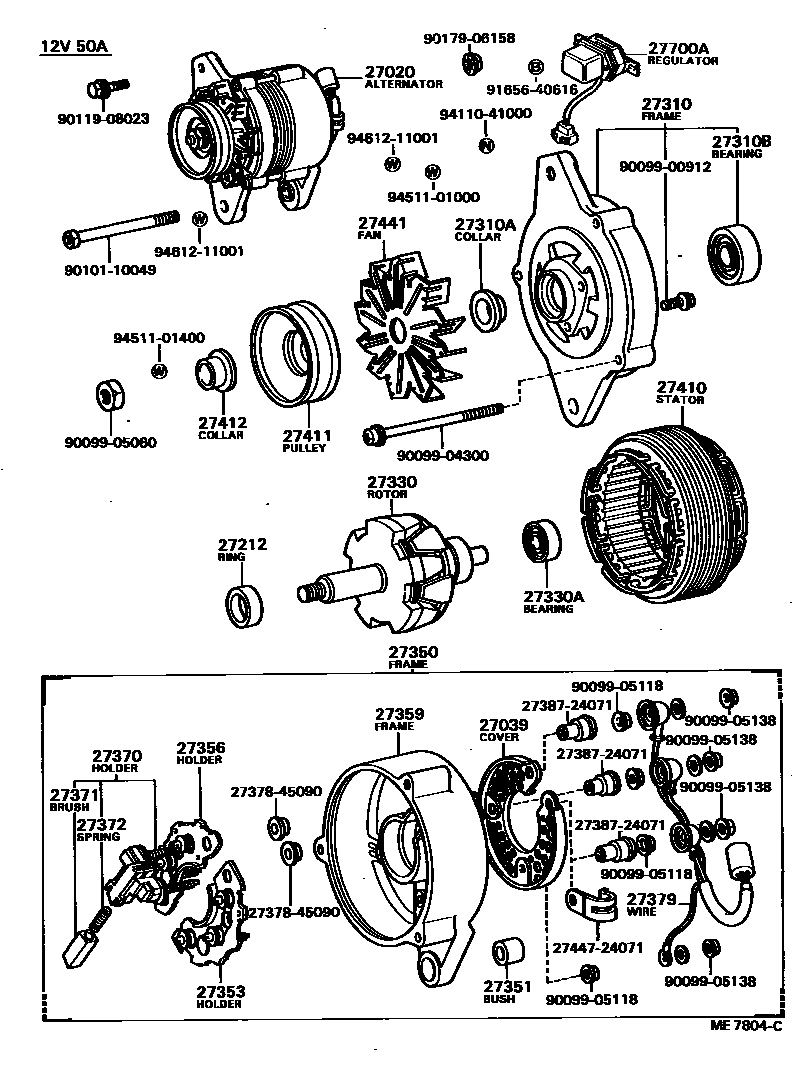

Toyota SPRINTER — ALTERNATOR

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1

27020ALTERNATOR ASSY

main27020-13110i4KU..KE70198108-198304

main27020-15020i3AU..AE70197903-197910

12V 50A

main27020-15021i3AU..AE70197910-198008

12V 50A

main27020-15022i3AU..AE70198008-198108

main27020-15140i3AU..AE70198108-198304

main27020-24100i4KU..KE70197903-197910

12V 50A

main27020-24101i4KU..KE70197910-197912

12V 50A

main27020-24102i4KU..KE70197912-198108

12V 50A

main27020-26141i2TGEU..TE71197903-198108

12V 55A,W/O REGULATOR

main27020-34051i13TU..TE70197908-198108

sub27020-34021

main27020-64010i1C..CE70198202-198304

main27060-34030i2TGEU..TE71198108-198304

12V 55A

27039COVER, ALTERNATOR REAR END

main27039-15010i3AU,4KU..AE70,KE70197903-198008

sub27039-61034

main27039-45110i13TU,2TGEU..TE7#197903-198108

27212RING, SPACE(FOR ALTERNATOR ROTOR)

main27412-44030i13TU..TE70197908-198108

main27412-45070i3AU,4KU,2TGEU..AE70,KE70,TE71197903-198304

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-24071i4KU..KE70197903-198304

main27310-34050i13TU..TE70197908-198108

main27310-38061i2TGEU..TE71197903-198304

main27310-61013i3AU..AE70197903-198204

main27310-61023i3AU..AE70198204-198304

main27310-64030i1C..CE70198202-198304

27310ACOLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)

main27333-57060i1C..CE70198202-198304

main27412-31040i13TU,3AU,4KU,2TGEU..AE70,KE70,TE7#197903-198304

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10114i3AU,4KU..AE70,KE70197903-198007

main90099-10115i13TU,2TGEU..TE7#197903-198007

main90099-10125i13TU,2TGEU..TE7#198007-198304

main90099-10126i3AU,4KU..AE70,KE70198007-198304

main90099-10137i1C..CE70198202-198304

27330ROTOR ASSY, ALTERNATOR

main27330-15070i2TGEU..TE71198108-198304

main27330-45070i4KU..KE70198108-198304

sub27330-16030

main27330-45090i2TGEU..TE71197903-198108

sub27330-43040

main27330-63010i3AU..AE70198108-198304

main27330-64010i1C..CE70198202-198304

27330ABEARING(FOR ALTERNATOR ROTOR)

main90099-10111i3AU,4KU..AE70,KE70197903-198304

main90099-10116i13TU,2TGEU..TE7#197903-198304

27350FRAME ASSY, RECTIFIER END

main27350-15020i3AU..AE70197903-197910

main27350-24100i4KU..KE70197903-197910

main27350-64030i1C..CE70198202-198304

27351BUSH(FOR ALTERNATOR RECTIFIER END FRAME)

main27351-38051i13TU,3AU,4KU,2TGEU..AE70,KE70,TE7#197903-198304

main27351-64010i1C..CE70198202-198304

27353HOLDER, W/RECTIFIER POSITIVE, ALTERNATOR

main27353-15020i3AU..AE70197903-197910

main27353-24101i4KU..KE70197903-197910

main27353-24102i4KU..KE70197910-198108

main27353-34021i3AU..AE70198108-198304

main27353-34051i13TU..TE70197908-197910

sub27353-34121

main27353-54010i1C..CE70198202-198304

27356HOLDER, W/RECTIFIER NEGATIVE, ALTERNATOR

main27356-24071i4KU..KE70197903-197910

main27356-24101i4KU..KE70197910-198108

main27356-26101i3AU..AE70197903-197910

main27356-34021i3AU..AE70198108-198304

main27356-34051i13TU..TE70197908-197910

main27356-54010i1C..CE70198202-198304

27359FRAME, ALTERNATOR RECTIFIER END

main27359-13110i4KU..KE70198108-198304

main27359-15020i3AU..AE70197903-198008

main27359-15021i3AU..AE70198008-198304

main27359-24060i4KU..KE70197910-198108

main27359-24071i4KU..KE70197903-197910

main27359-24100i13TU..TE70197908-198108

main27359-34080i2TGEU..TE71198108-198304

sub27359-28030

main27359-45122i2TGEU..TE71197903-198108

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-24101i4KU..KE70197903-197910

sub27370-24071

main27370-24102i4KU..KE70197910-198304

main27370-54010i1C..CE70198202-198304

sub27370-54250

27371BRUSH, ALTERNATOR

main27371-31011×2i13TU,3AU,4KU,2TGEU..AE70,KE70,TE7#198007-198304

main27371-44070×2i13TU,3AU,4KU,2TGEU..AE70,KE70,TE7#197910-198007

main27371-56070×2i1C..CE70198202-198304

sub27371-54412

27372SPRING, ALTERNATOR BRUSH

main27372-31011×2i3AU..AE70197903-197910

main27372-56070×2i1C..CE70198202-198304

main90099-17114×2i13TU,4KU,2TGEU..KE70,TE7#197903-197910

27379WIRE, ALTERNATOR LEAD

main27037-24100i4KU..KE70197903-197912

main27037-24101i4KU..KE70197912-198108

27410STATOR ASSY, ALTERNATOR

main27410-34050i3AU,4KU..AE70,KE70197903-197910

sub27410-45080

main27410-41080i13TU,3AU,4KU,2TGEU..AE70,KE70,TE7#197910-198304

main27410-43040i3AU..AE70198108-198304

main27410-64010i1C..CE70198202-198304

27411PULLEY, ALTERNATOR

main27411-26111i3AU,4KU,2TGEU..AE70,KE70,TE71197903-198108

main27411-31042i4KU..KE70198108-198304

main27411-64010i1C..CE70198202-198304

27412COLLAR, SPACER(FOR ALTERNATOR PULLEY)

main27412-44030i3AU,4KU,2TGEU..AE70,KE70,TE71197903-198108

main27412-44031i2TGEU..TE71198108-198304

main27412-45070i13TU..TE70197908-198108

main27412-57060i1C..CE70198202-198304

27441FAN, ALTERNATOR

main27441-34030i13TU,3AU,4KU..AE70,KE70,TE70197903-198304

main27441-45110i2TGEU..TE71197903-198304

main27441-56090i1C..CE70198202-198304

27700AREGULATOR ASSY, GENERATOR

main27700-15010i13TU,3AU,4KU..AE70,KE70,TE70197903-198108

main27700-15011i3AU,1C,4KU..AE70,CE70,KE70198108-198304

sub27700-15040

main27700-26050i2TGEU..TE71197903-198108

sub27700-38100

main27700-43010i2TGEU..TE71198108-198304

2737845090INSULATOR, ALTERNATOR, NO.1

main27378-45090

2738724071INSULATOR, TERMINAL

main27387-24071

2744724071CLIP, ALTERNATOR CORD

main27447-24071

9009900912

main90099-00912

9009904300

main90099-04300

9009905060

main90099-05060

9009905118

main90099-05118

9009905138

main90099-05138

9010110049

main90101-10049

9011908023

main90119-08023

9017906158

main90179-06158

9165640616

main91656-40616

9411041000

main94110-41000

9451101000

main94511-01000

9451101400

main94511-01400

9461211001

main94612-11001

38 parts on this diagram · 9 diagrams in section
