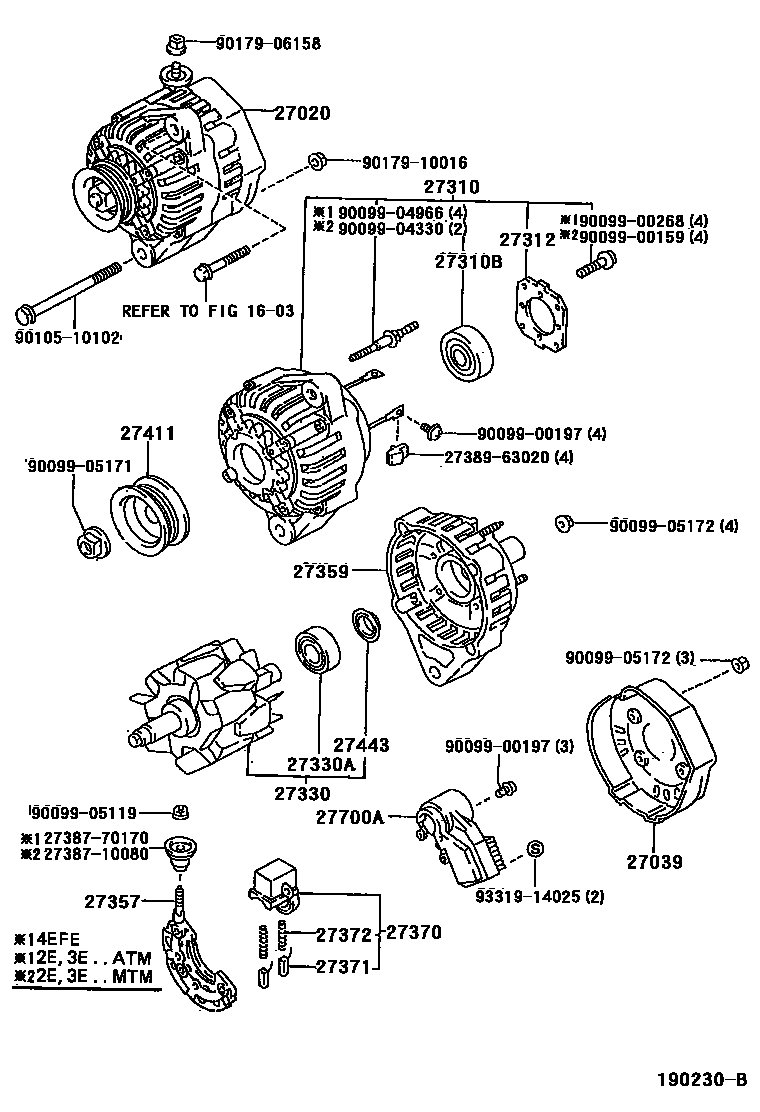

Toyota SPRINTER — ALTERNATOR

0001 112V 50A,70A 0003 112V 60A 0004 112V 70A 0005 112V 70A 0006 112V 70A,80A 0008 112V 70A 0009 112V 80A 0010 112V 60A 0012 112V 70A 0013 112V 80A

1603

27020ALTERNATOR ASSY

main27020-64310i2C..CE106,108,109199305-199401

main27060-10100i2E,3E..EE106,107,108..MTM199109-199205

main27060-11120i4EFE..EE101..4F;2E,3E..EE106,107,108..3FC199106-199205

main27060-11200i4EFE..EE101..3FC199106-199205

main27060-11250i4EFE,5EFE..EE102,103,104..MTM199401-199705

main27060-11260i2E,3E..EE106,107,108..MTM199205-199401

main27060-11270i4EFE,5EFE..EE10#..MTM199704

main27060-11280i4EFE..EE101..3FC199205-199305

main27060-11281i4EFE,5EFE..EE101,102,103,104..3FC199305

main27060-15050i4AFE,5AFE..AE10#..5F199106-199205

main27060-15060i4AFE,5AFE..AE100,101..ATM199106-199205

main27060-15070i4AFE..AE104..4FC199109-199205

main27060-15080i4AFE,5AFE..AE10#..5F199205-199505

main27060-15090i4AFE,5AFE..AE100,101..ATM199205-199505

sub27060-16430

main27060-15130i4AFE..AE109..5F199605

main27060-15140i4AFE..AE109..4FC199605-199704

main27060-15150i4AFE..AE104..4FC199205-199505

main27060-16280i4AGE..AE101..5F199106-199205

main27060-16290i4AGE..AE101..4FC199106-199205

main27060-16320i4AGE..AE101..5F199205-199505

main27060-16330i4AGE..AE101..4FC199205-199505

main27060-16370i4AFE..AE109199605-199704

main27060-16460i4AFE..AE109..4FC199704

sub27060-16430

main27060-64130i2C..CE100,104,109;2C..CE106,108..4FC199401-199804

main27060-64240i2C..CE106,108..5F199401-199508

main27060-64250i2C..CE106,108..5F199508-199804

main27060-64370i3CE..CE105199804

main27060-64380i3CE..CE102,107..4FC199804

main27060-64390i3CE..CE102,107..5F199804

27039COVER, ALTERNATOR REAR END

main27039-11180i4EFE,5EFE..EE102,103,104..MTM199401-199704

main27039-11190i2E,3E..EE106,107,108..MTM199205-199401

main27039-15170i2E,3E..EE106,107,108..3FC;4A#,5AFE,4EFE..AE10#,EE101..MTM199106-199205

sub27039-15171

main27039-16310i4A#,5AFE..AE10#..ATM199203-199205

main27039-16380i4AFE,2C,3CE,4EFE,5EFE..AE109,CE102,106,107,108,EE10#..MTM199704

main27039-42010i4EFE..EE101..3FC199203-199205

main27039-55080i2C,3CE..CE100,104,105,109;4A#,5AFE,2C,3CE,4EFE,5EFE..AE10#,CE102,106,107,108,EE10#..ATM199401-200104

main27039-70470i3CE..CE105;4AFE,3CE,4EFE,5EFE..AE109,CE102,107,EE10#..ATM200104

main27039-72150i2E,3E..EE106,107,108..MTM199109-199205

main27039-73020i4A#,5AFE,2C,4EFE..AE10#,CE106,108,EE101..MTM199401-199701

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-10090i2E,3E..EE106,107,108..MTM199109-199401

main27310-11160i4EFE,5EFE..EE102,103,104..MTM199401-199704

main27310-15170i4AFE,5AFE..AE10#..5F199106

main27310-15180i4AFE,5AFE..AE10#..ATM199106-199704

main27310-16103i4EFE,5EFE..EE10#..MTM199704

main27310-16270i4EFE,5EFE..EE101,102,103,104..3FC199106

main27310-16300i4AGE..AE101..5F199106-199505

main27310-16310i4AGE..AE101..4FC199106-199505

main27310-16430i4AFE..AE109..4FC199704

main27310-64060i2C..CE10#199106-199305

main27310-64450i2C..CE106,108..4FC;2C,3CE..CE100,104,105,109199401

main27310-64470i3CE..CE102,107..4FC199804

main27310-64570i2C,3CE..CE102,106,107,108..5F199401

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10137i2C..CE106,108,109199305-199401

main90099-10178i4AFE,2C,3CE,4EFE,5EFE..AE109,CE102,106,107,108,EE10#..MTM199704

main90099-10192i4A#,5AFE,4EFE..AE10#,EE101..ATM199106-199305

main90099-10198i2E,3E,4EFE,5EFE..EE102,103,104,106,107,108..MTM199109-199704

sub90099-10229

27312PLATE, RETAINER

main27312-42010i2C,3CE..CE100,104,105,109;4A#,5AFE,2C,3CE,4EFE,5EFE..AE10#,CE102,106,107,108,EE10#..ATM199401

main27312-57060i2C..CE106,108,109199305-199401

main27312-70200i2E,3E..EE106,107,108..3FC;4A#,5AFE,4EFE..AE10#,EE101..MTM199205-199401

main27312-72120i2E,3E,4EFE,5EFE..EE102,103,104,106,107,108..MTM199109-199704

27330ROTOR ASSY, ALTERNATOR

main27330-11160i4EFE,5EFE..EE102,103,104..MTM199401-199704

main27330-16300i4AGE..AE101..5F199106-199505

main27330-16390i3CE..CE105;4AFE,4EFE,5EFE..AE109,EE10#..ATM200007

main27330-46080i4AGE..AE101..4FC199205-199505

main27330-64171i2C..CE10#199106-199305

sub27330-54270

main27330-64570i4AFE,2C,3CE,4EFE,5EFE..AE109,CE102,106,107,108,EE10#..MTM199704

main27330-72101i2E,3E..EE106,107,108..3FC;4AFE,5AFE,4EFE..AE10#,EE101..MTM199106-199505

main27330-72150i2E,3E..EE106,107,108..MTM199109-199401

main27330-72280i3CE..CE102,107..4FC199804-200007

main27330-74550i3CE..CE102,107..4FC200007

main27330-76030i2C,3CE..CE100,104,105,109;4AFE,5AFE,2C,4EFE,5EFE..AE10#,CE106,108,EE10#..ATM199401-200007

27330ABEARING(FOR ALTERNATOR ROTOR)

main90099-10140i4AFE,5AFE,4EFE..AE10#,EE101;4AGE,2E,3E..AE101,EE106,107,108..ATM199106-199205

main90099-10154i2E,3E,4EFE,5EFE..EE102,103,104,106,107,108..MTM199109-199704

main90099-10194i4AGE..AE101199205-199505

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27357-11180i4EFE,5EFE..EE102,103,104..MTM199401-199704

main27357-16310i4A#..AE101,104..4FC..(GT,SEL,XE)199205-199505

main27357-16380i4AFE,2C,3CE,4EFE,5EFE..AE109,CE102,106,107,108,EE10#..MTM199704

main27357-50040i4A#..AE101,104..4FC..(GT,SEL,XE)199106-199205

main27357-55080i4AFE,5AFE,4EFE..AE100,101,EE101..ATM199205-199305

main27357-62040i4AFE,5AFE,4EFE..AE100,101,EE101..ATM199112-199205

sub27357-74160

main27357-63020i2E,3E..EE106,107,108..3FC;4A#,5AFE,4EFE..AE10#,EE101..MTM199106-199401

main27357-72150i2E,3E..EE106,107,108..MTM199109-199401

main27357-74050i4EFE..EE101..3FC199106-199112

sub27357-74160

27359FRAME, ALTERNATOR RECTIFIER END

main27359-15170i4AFE,5AFE..AE10#..5F199106-199505

main27359-15171i4AFE..AE109..5F199605-199701

main27359-15180i4AFE,5AFE..AE10#..ATM199106

main27359-16180i4EFE..EE101..4F;2E,3E..EE106,107,108..3FC199106-199505

sub27359-16181

main27359-16182i4EFE,5EFE..EE10#..MTM199704

main27359-16270i4EFE,5EFE..EE101,102,103,104..3FC199106

main27359-16300i4AGE..AE101..5F199106-199505

sub27359-16301

main27359-16310i4AGE..AE101..4FC199106-199505

main27359-16380i4AFE..AE109..5F199701

main27359-64450i2C..CE100,104199305-199401

main27359-72150i2E,3E..EE106,107,108..MTM199109-199401

main27359-72151i4EFE,5EFE..EE102,103,104..MTM199401-199704

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-35060i4AFE,5AFE..AE10#..5F199207

main27370-54450i2E,3E..EE106,107,108;4AGE,4EFE..AE101,EE101..MTM199106-199401

main27370-58320i2C,3CE,4EFE,5EFE..CE102,106,107,108,EE10#..MTM199601

main27370-70300i4AFE,5AFE..AE10#..5F199106-199207

main27370-75060i2C..CE100,104;4A#,5AFE,4EFE..AE10#,EE101..ATM199305-199401

27371BRUSH, ALTERNATOR

main27371-54412×2i2C..CE10#199106-199305

main27371-70300×2i2E,3E..EE106,107,108;4A#,5AFE,4EFE..AE10#,EE101..MTM199106-199401

27372SPRING, ALTERNATOR BRUSH

main27372-56070×2i2C..CE10#199106-199305

main27372-63020×2i4A#,5AFE,2C,3CE,4EFE,5EFE..AE10#,CE102,106,107,108,EE10#..MTM199401

sub27372-87501

27411PULLEY, ALTERNATOR

main27411-10051i2E,3E..EE106,107,108..MTM199109-199401

main27411-11060i4EFE,5EFE..EE101,102,103,104..3FC199106

main27411-11160i4EFE,5EFE..EE102,103,104..MTM199401-199704

main27411-16180i4A#,5AFE..AE10#..5F199106

main27411-42030i4AFE,5AFE..AE10#..ATM199106

main27411-64220i2C..CE10#199106-199305

main27411-64320i2C..CE100,104199305-199401

main27411-64360i3CE..CE105;3CE..CE102,107..4FC199804

main27411-64390i3CE..CE102,107..5F199804

main27411-64570i2C..CE106,108..5F199401-199804

main27411-65010i4EFE,5EFE..EE10#..MTM199704

main27411-74050i4AGE..AE101..4FC199106-199505

27443COVER, ALTERNATOR BEARING

main27443-63020i4A#,5AFE,2C,2E,3E,4EFE..AE10#,CE100,104,EE10#199305-199401

27700AREGULATOR ASSY, GENERATOR

main27700-10080i2E,3E..EE106,107,108..MTM199109-199111

sub27700-66010

main27700-11020i2E,3E..EE106,107,108..MTM199111-199205

main27700-11030i2E,3E..EE106,107..3FC;3E,4EFE..EE101,108..3FC,4F199106-199205

sub27700-72090

main27700-11060i2E,3E,4EFE,5EFE..EE102,103,104,106,107,108..MTM199205-199704

main27700-11070i4EFE,5EFE..EE10#..MTM199704

main27700-35040i2C,3CE..CE105,109;2C,3CE..CE102,106,107,108..4FC199608

main27700-46030i4A#,5AFE..AE10#199106-199205

sub27700-72090

main27700-64110i2C..CE10#199106-199305

main27700-65010i2C..CE100,104,109;2C..CE106,108..4FC199401-199608

main27700-74030i2C..CE106,108..5F;5EFE..EE103,104..3FC;4A#,5AFE,4EFE..AE10#,EE101,102..3FC,4FC,5F199401-199508

main27700-74040i4AFE..AE109;2C,3CE..CE102,106,107,108..5F199508

2738710080INSULATOR, TERMINAL

main27387-10080

2738770170INSULATOR, TERMINAL

main27387-70170

2738963020INSULATOR, TERMINAL

main27389-63020

9009900159

main90099-00159

9009900197

main90099-00197

9009900268

main90099-00268

9009904330

main90099-04330

9009904966

main90099-04966

9009905119

main90099-05119

9009905171

main90099-05171

9009905172

main90099-05172

9010510102

main90105-10102

9017906158

main90179-06158

9017910016

main90179-10016

9331914025

main93319-14025
