Toyota SPRINTER — ALTERNATOR

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

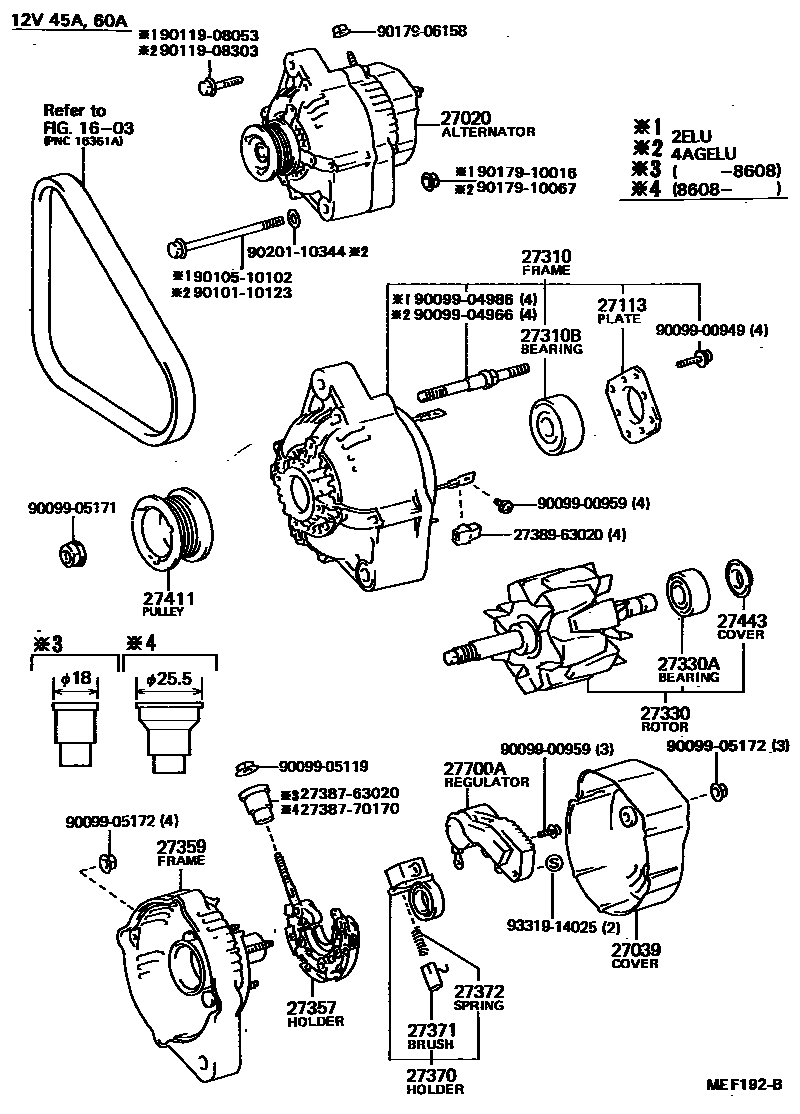

27020ALTERNATOR ASSY

main27020-16030i198305-198704

12V 50A

main27020-64060i198305-198704

12V 55A

main27020-64160i198510-198704

main27060-10030i198505-198602

main27060-10070i198602-198608

main27060-10071i198608-198704

main27060-16010i198410-198608

main27060-16011i198608-198704

12V 60A

main27060-16040i198305-198608

main27060-16041i198608-198704

main27060-63040i198305-198505

12V 55A

27039COVER, ALTERNATOR REAR END

main27039-10040i198505-198602

12V 45A

main27039-63021i198305-198410

12V 60A

main27039-63040i198305-198505

12V 55A

main27039-72010i198410-198704

12V 60A

main27039-72150i198602-198704

12V 45A

27113PLATE, BEARING RETAINER, ALTERNATOR

main27312-57060i198305-198704

12V 55A,60A

main27312-63020i198305-198501

12V 55A

main27312-63020i198305-198501

12V 60A

main27312-63020i198505-198602

12V 45A

main27312-72100i198501-198704

12V 60A

main27312-72100i198501-198505

12V 55A

main27312-72120i198602-198704

12V 45A

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-10040i198505-198602

12V 45A

main27310-10080i198602-198704

12V 45A

main27310-15150i198305-198312

12V 50A

main27310-16010i198410-198501

12V 60A

main27310-16011i198501-198704

12V 60A

main27310-16030i198312-198704

12V 50A

main27310-16060i198403-198501

12V 60A

main27310-63050i198305-198501

12V 55A

main27310-63051i198501-198505

12V 55A

main27310-64060i198305-198704

12V 55A,60A

main27310-70070i198305-198403

12V 60A

main27310-70071i198501-198704

12V 60A

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10137i198305-198704

12V 55A,60A

main90099-10141i198305-198309

12V 60A,OD=42

main90099-10141i198305-198309

12V 55A,OD=42

main90099-10142i198305-198704

12V 50A

main90099-10152i198309-198501

12V 60A,OD=43

main90099-10152i198309-198501

12V 55A,OD=43

main90099-10152i198505-198602

12V 45A

main90099-10156i198403-198501

12V 60A,OD=43

main90099-10159i198501-198505

12V 55A,OD=46

main90099-10159i198501-198704

12V 60A,OD=46

main90099-10170i198602-198704

12V 45A

27330ROTOR ASSY, ALTERNATOR

main27330-10020i198501-198505

12V 55A

main27330-10040i198505-198602

12V 45A

main27330-16030i198502-198704

12V 50A

main27330-45070i198305-198502

12V 50A

main27330-63021i198305-198501

12V 60A

main27330-63041i198305-198501

12V 55A

main27330-64010i198305-198704

12V 55A

main27330-64030i198510-198704

12V 60A

main27330-72100i198501-198704

12V 60A

main27330-72150i198602-198704

12V 45A

27330ABEARING(FOR ALTERNATOR ROTOR)

main90099-10116i198305-198704

12V 50A

main90099-10140i198305-198704

12V 60A

main90099-10140i198305-198505

12V 55A

main90099-10154i198505-198704

12V 45A

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27357-10040i198505-198602

12V 45A

main27357-15022i198305-198704

12V 50A

main27357-63020i198305-198704

12V 60A

main27357-63040i198305-198505

12V 55A

main27357-64060i198307-198704

12V 55A

main27357-72150i198602-198704

12V 45A

27359FRAME, ALTERNATOR RECTIFIER END

main27359-10040i198505-198602

12V 45A

main27359-16011i198410-198704

12V 60A

main27359-63010i198305-198704

12V 50A

main27359-63020i198305-198404

12V 60A

main27359-63021i198404-198704

12V 60A

main27359-63040i198305-198404

12V 55A

main27359-63041i198404-198505

12V 55A

main27359-72150i198602-198704

12V 45A

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-16011i198410-198704

12V 45A,60A

main27370-54010i198305-198704

12V 55A

main27370-63020i198305-198404

12V 60A

main27370-63020i198305-198404

12V 55A

main27370-63021i198404-198501

12V 55A

main27370-63021i198404-198501

12V 60A

main27370-72100i198501-198704

12V 60A

main27370-72100i198501-198505

12V 55A

27371BRUSH, ALTERNATOR

main27371-31011i198305-198704

12V 50A

main27371-56070i198305-198704

12V 55A,60A

main27371-63020i198305-198505

12V 55A

main27371-63020i198305-198704

12V 45A,60A

27372SPRING, ALTERNATOR BRUSH

main27372-31011i198305-198704

12V 50A

main27372-56070i198305-198704

12V 55A,60A

main27372-63020i198305-198501

12V 55A

main27372-63020i198305-198501

12V 60A

main27372-72100i198501-198505

12V 55A

main27372-72100i198501-198704

12V 60A

main27372-72100i198505-198603

12V 45A

27411PULLEY, ALTERNATOR

main27411-10040i198505-198602

12V 45A

main27411-10051i198602-198704

12V 45A

main27411-15150i198305-198704

12V 50A

main27411-16010i198410-198501

12V 60A

main27411-16011i198501-198704

12V 60A

main27411-63080i198408-198501

12V 55A

main27411-63081i198501-198505

12V 55A

main27411-63081i198501-198704

12V 60A

main27411-64060i198305-198704

12V 55A

main27411-64160i198510-198704

12V 60A

main27411-72010i198305-198501

12V 60A

main27411-72010i198305-198408

12V 55A

27443COVER, ALTERNATOR BEARING

main27443-63020i198305-198505

12V 55A

main27443-63020i198305-198704

12V 45A,60A

27700AREGULATOR ASSY, GENERATOR

main27700-10050i198602-198704

IC REGULATOR

main27700-15030i198305-198704

main27700-15050i198305-198704

COLD SPEC

main27700-57060i198510-198606

IC REGULATOR

main27700-63021i198305-198704

IC REGULATOR

main27700-64030i198606-198704

IC REGULATOR

2738763020INSULATOR, TERMINAL

main27387-63020

2738770170INSULATOR, TERMINAL

main27387-70170

2738963020INSULATOR, TERMINAL

main27389-63020

9009900949

main90099-00949

9009900959

main90099-00959

9009904966

main90099-04966

9009904986

main90099-04986

9009905119

main90099-05119

9009905171

main90099-05171

9009905172

main90099-05172

9010110123

main90101-10123

9010510102

main90105-10102

9011908053

main90119-08053

9011908303

main90119-08303

9017906158

main90179-06158

9017910016

main90179-10016

9017910067

main90179-10067

9020110344

main90201-10344

9331914025

main93319-14025

35 parts on this diagram · 6 diagrams in section

ALTERNATOR for Toyota SPRINTER

This section contains 98 genuine Toyota parts for the ALTERNATOR system of the Toyota SPRINTER. Key components include: RADIATOR & WATER OUTLET, V-BELT, ALTERNATOR ASSY, TERMINAL SUB-ASSY, LEAD WIRE, ALTERNATOR, COVER, ALTERNATOR REAR END.
