Toyota SPRINTER — AIR BAG

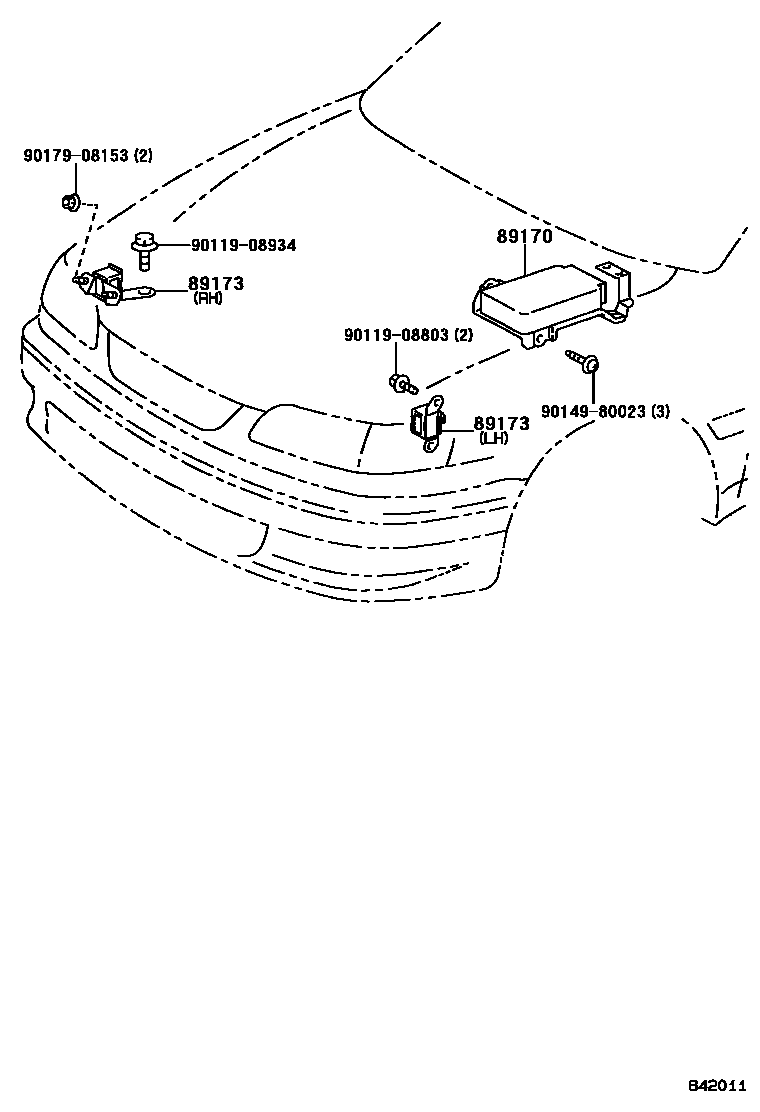

Parts diagram

89170SENSOR ASSY, AIRBAG

main89170-12060i199605-199607

main89170-12061i199607-199704

main89170-12130i199704-199804

main89170-12240i199804-199912

main89170-12250i199804-199912

main89170-12330i199912-200008

main89170-13020i199912-200008

89173SENSOR, AIRBAG, FRONT

main89173-19115i199804-200008

main89173-19125i199804-200008

9011908803

main90119-08803

9011908934

main90119-08934

9014980023

main90149-80023

9017908153

main90179-08153

6 parts on this diagram · 1 diagram in section

AIR BAG for Toyota SPRINTER

This section contains 6 genuine Toyota parts for the AIR BAG system of the Toyota SPRINTER. Key components include: SENSOR ASSY, AIRBAG, SENSOR, AIRBAG, FRONT.
