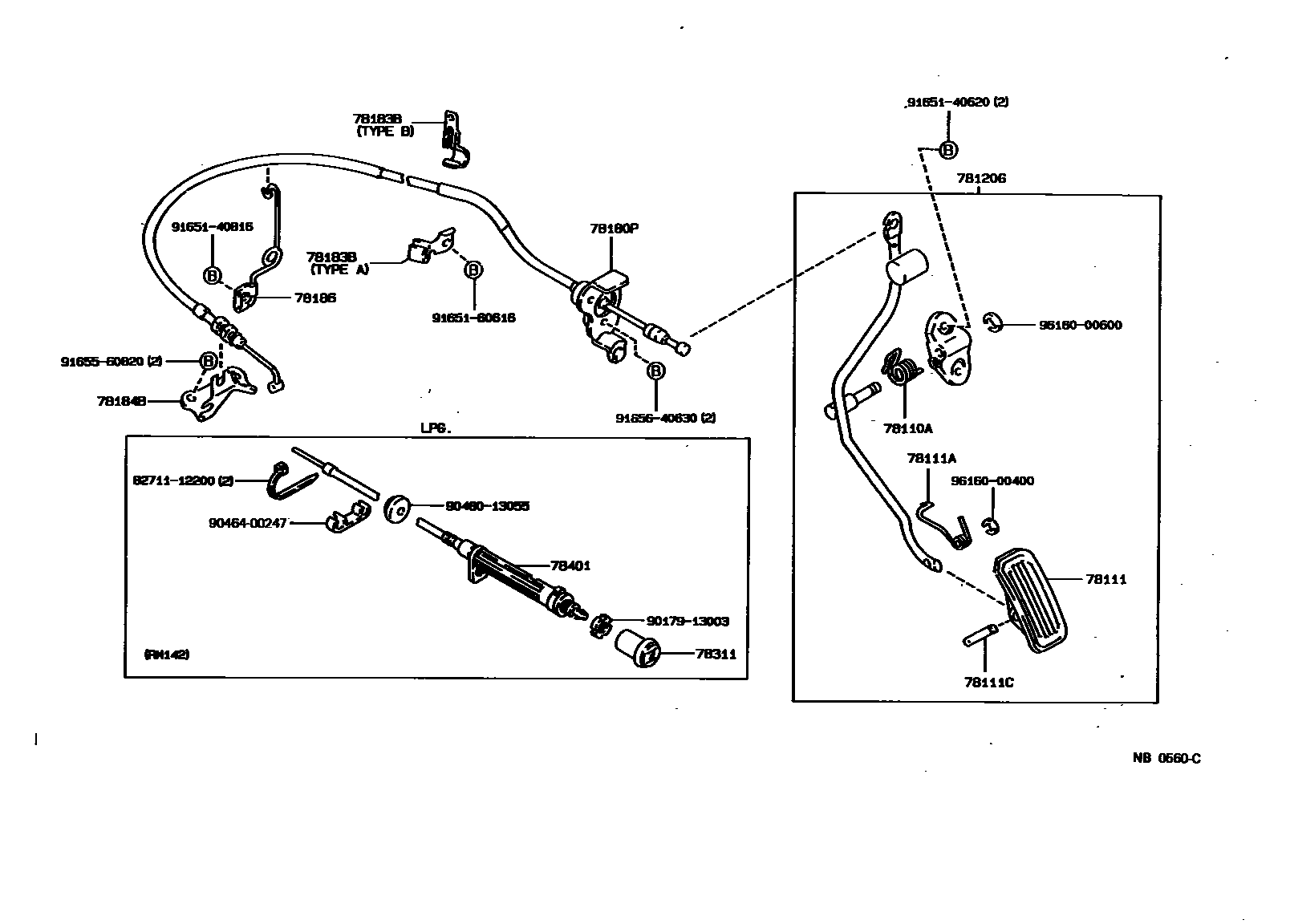

Toyota SPRINTER — ACCELERATOR LINK

0001 1 0002 1 0003 1 0004 1

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main90508-18025iAE91,95;EE98..MTM;AE92,CE90,96,EE90,96..4F,4FC198705-199108

main90508-18398iEE9#..3FC198905-199108

main90508-26036iAE92,CE9#..5F198705-199108

78111PEDAL, ACCELERATOR

main78111-32010iAE9#,CE9#,EE9#198705-199108

78111ASPRING (FOR ACCELERATOR PEDAL)

main90508-20056iAE9#,CE9#,EE9#198705-199108

78111CPIN (FOR ACCELERATOR PEDAL)

main90249-05001iAE9#,CE9#,EE9#198705-199108

78120GROD ASSY, ACCELERATOR PEDAL

main78120-12070iAE92,CE9#..5F198705-199108

main78120-12080iAE91,95,EE96,98;AE92,CE9#,EE90..4F,4FC198705-199108

main78120-12140iEE90..3FC198905-199108

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-12780iAE91,95..CBR198705-198905

sub78180-12781

main78180-12840iEE90,96198705-198908

sub78180-12841

main78180-12860iCE9#198705-198908

sub78180-12861

main78180-1A080iAE91,95..EFI,EFIS198705-199008

sub78180-1A081

main78180-1A081iAE91,95199008-199106

main78180-1A100iAE92198705-199008

sub78180-1A101

main78180-1A101iAE92199008-199106

main78180-1A110iAE92198705-199106

main78180-1A240iEE98198808-198908

sub78180-1A241

main78180-1A270iCE9#198905-199008

sub78180-1A271

main78180-1A271iCE9#199008-199108

main78180-1A320iEE90,96198908-199008

sub78180-1A321

main78180-1A340iEE98198908-199008

sub78180-1A341

main78180-1A341iEE98199008-199108

main78180-1A500iEE90,96199008-199108

78183BCLAMP, ACCELERATOR CONTROL CABLE

main78183-12100iAE95198705-199108

main78183-12150iEE98198808-199108

78184BBRACKET, ACCELERATOR CONTROL CABLE

main78024-20110iCE90198905-199108

main78184-10070iEE96,98198705-198908

main78184-12220iAE92198705-199106

main78184-12230iAE91,95..CBR198705-198908

main78184-12240iAE91..EFI;AE95..5F..EFI198705-199106

main78184-12260iAE91198905-199106

78186SUPPORT, ACCELERATOR CONTROL CABLE, NO.1

main78186-12180iEE90,96198705-198908

main78186-12200iEE9#198908-199108

main78186-12210iEE98198808-198908

main78186-12220iAE91,95..EFI198705-199106

main78186-12260iAE91198905-199106

78311KNOB, CHOKE CONTROL CABLE

main78311-10041iEE96..4F199012-199108

main78311-12021iEE96..4F198908-199012

78401CABLE SUB-ASSY, THROTTLE CONTROL

main78401-13011iEE96..4F198908-199012

sub78401-13020

sub78311-10041

main78401-13020iEE96..4F199012-199108

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

9017913003

main90179-13003

9046400247

main90464-00247

9048013055

main90480-13055

9165140620

main91651-40620

9165140816

main91651-40816

9165160616

main91651-60616

9165560820

main91655-60820

9165640630

main91656-40630

9616000400

main96160-00400

9616000600

main96160-00600

22 parts on this diagram · 4 diagrams in section
