Toyota SPRINTER — ABS & VSC

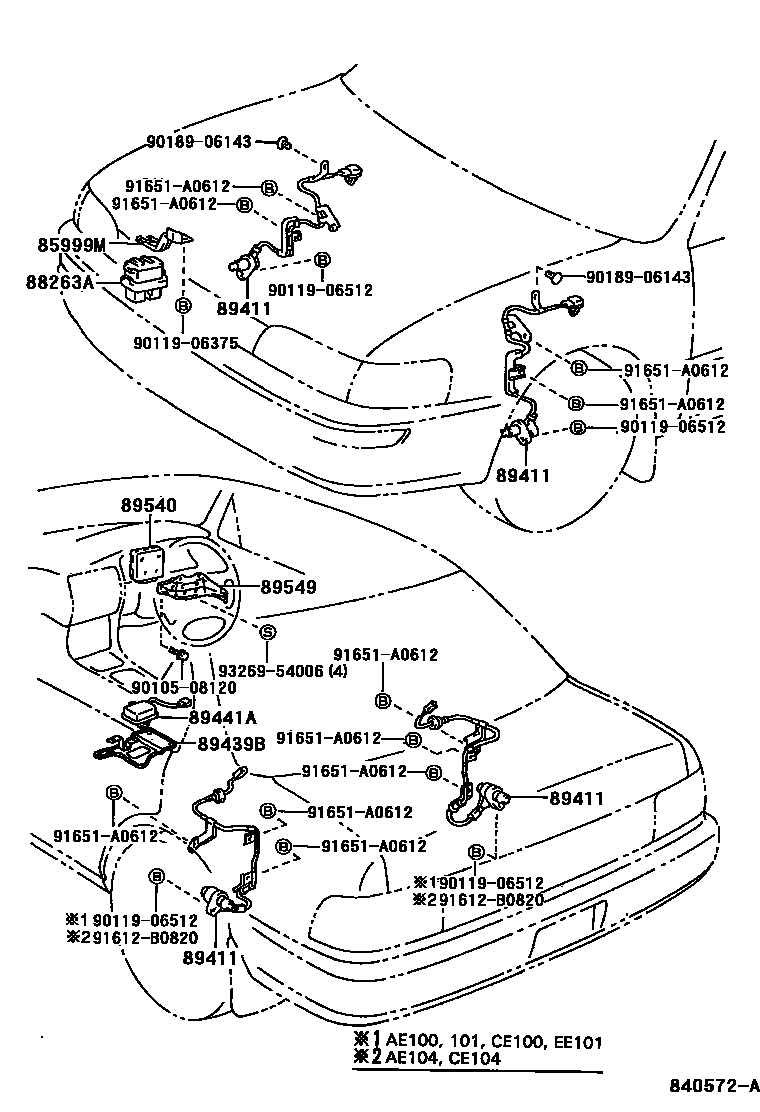

Parts diagram
85999MBRACKET, RELAY
main85999-12170i199106-199305
main85999-12320i199305-199505
88263ARELAY, SKID CONTROL
main88263-12070i199305-199505
sub88263-12080
main88263-12090i199106-199305
main88263-32060i199804
89411SENSOR, SPEED
main89542-12020i199106-199505
FRONT RH
main89542-12040i199804
FRONT RH
main89543-12020i199106-199505
FRONT LH
main89543-12040i199804
FRONT LH
main89545-12020i199106-199505
REAR RH
main89545-12030i199109-199505
REAR RH
main89545-12050i199804-199807
REAR RH
sub89545-12051
main89545-12051i199807
REAR RH
main89545-12060i199804
REAR RH
main89546-12020i199106-199505
REAR LH
main89546-12030i199109-199505
REAR LH
main89546-12050i199804-199807
REAR LH
sub89546-12051
main89546-12051i199807
REAR LH
main89546-12060i199804
REAR LH
89439BBRACKET, SENSOR
main89439-12050i199109-199305
89441ASENSOR, DECELERATION
main89440-12020i199305-199505
main89440-12060i199804
main89441-12030i199109-199305
89540COMPUTER ASSY, SKID CONTROL
main89540-12140i199305-199505
main89540-12480i199804
main89540-12540i199804
main89541-12030i199106-199305
main89541-12040i199106-199305
main89541-12060i199109-199305
main89541-12100i199305-199505
89549BRACKET, SKID CONTROL COMPUTER
main89549-12030i199109-199505
main89549-12040i199305-199505
9010508120
main90105-08120
9011906375
main90119-06375
9011906512
main90119-06512
9018906143
main90189-06143
91612B0820
main91612-B0820
91651A0612
main91651-A0612
9326954006
main93269-54006

14 parts on this diagram · 2 diagrams in section
