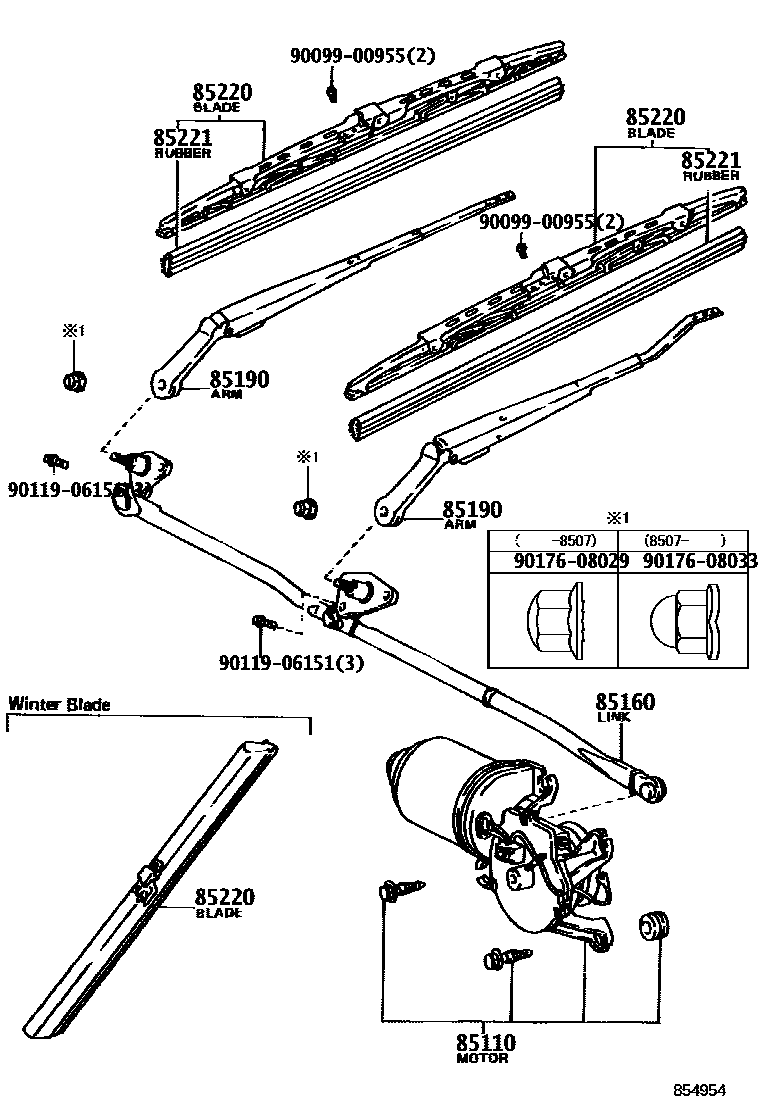

Toyota SPRINTER TRUENO — WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-12290i198305-198505

main85110-12540i198505-198704

main85110-12550i198505-198507

COLD SPEC

main85110-12610i198507-198704

COLD SPEC

85160LINK ASSY, WINDSHIELD WIPER

main85160-12340i198305-198704

85190ARM ASSY, WINDSHIELD WIPER

main85190-12570i198305-198704

main85210-12110i198305-198704

85220BLADE ASSY, WINDSHIELD WIPER

main85220-12450i198305-198704

main85220-14170i198305-198704

LH,WINTER BLADE

main85220-16580i198607-198704

RH,WINTER BLADE

main85220-32300i198305-198308

main85220-32310i198308-198704

main85220-40040i198305-198607

RH,WINTER BLADE

85221BLADE, WINDSHIELD WIPER

main85221-12230i198305-198704

main85221-30110i198305-198704

9009900955

main90099-00955

9011906151

main90119-06151

9017608029

main90176-08029

9017608033

main90176-08033

9 parts on this diagram · 1 diagram in section

WINDSHIELD WIPER for Toyota SPRINTER TRUENO

This section contains 9 genuine Toyota parts for the WINDSHIELD WIPER system of the Toyota SPRINTER TRUENO. Key components include: MOTOR ASSY, WINDSHIELD WIPER, LINK ASSY, WINDSHIELD WIPER, ARM ASSY, WINDSHIELD WIPER, BLADE ASSY, WINDSHIELD WIPER, BLADE, WINDSHIELD WIPER.
