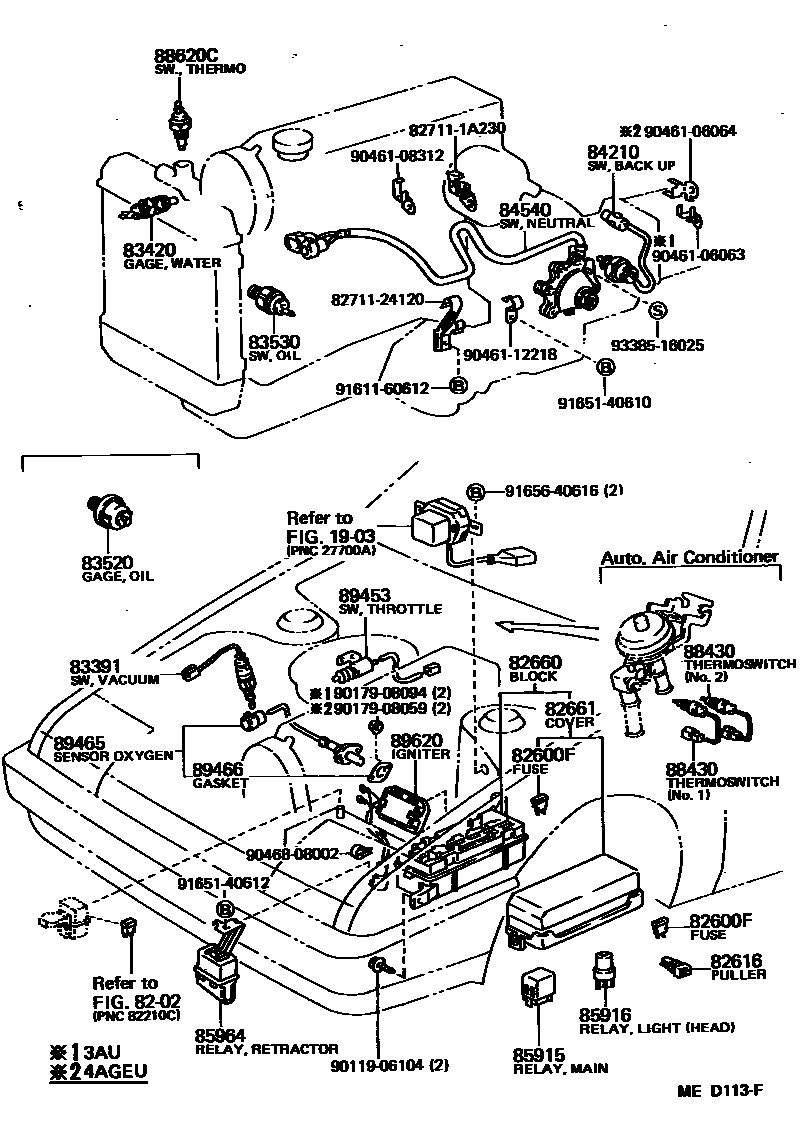

Toyota SPRINTER TRUENO — SWITCH & RELAY & COMPUTER

0001 1 0002 1 0003 1 0004 1

1903

8202

82600FFUSE, FUSE BLOCK

main90982-07011iAE8#198305-198704

main90982-09002×8iAE8#198305-198704

main90982-09003×6iAE8#198305-198704

main90982-09004iAE8#198305-198704

main90982-09005×6iAE8#198305-198704

82616PULLER, FUSE

main82616-12010iAE8#198305-198704

82660BLOCK ASSY, RELAY, ENGINE ROOM

main82660-12110iAE8#198305-198401

main82660-12111iAE8#198401-198704

82661COVER, RELAY BLOCK, NO.1

main82661-12050iAE8#198305-198401

ENGINE ROOM

main82661-12051iAE8#198401-198704

ENGINE ROOM

main82661-12100iAE8#198305-198704

NO.2

83391SWITCH, VACUUM

main83391-14061iAE85198305-198505

main83391-22070iAE85198505-198704

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16010iAE8#198305-198308

main83420-20020iAE8#198308-198704

83520GAGE ASSY,OIL PRESSURE SENDER

main83520-14022iAE86..2D;AE86..GTV198406-198411

W/ANALOGUE METER

sub83520-14023

main83520-55011iAE86..2D;AE86..GTV198305-198406

W/ANALOGUE METER

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-12040iAE85198305-198503

sub83530-14040

main83530-14020iAE86..APX198505-198704

W/*DS

main83530-30080iAE85198503-198704

sub83530-60040

84210SWITCH ASSY, BACK-UP LAMP

main84210-10051iAE86..5F198305-198704

main84210-10071iAE85..5F198305-198704

84540SWITCH ASSY, NEUTRAL START

main84540-22170iAE86..4FC198505-198704

sub84540-22171

main84540-35020iAE85..4FC198305-198704

85915RELAY, MAIN

main85913-30020iAE8#198305-198505

main90987-04002iAE8#198505-198704

85916RELAY, LIGHT CONTROL

main90987-01003×2iAE8#198305-198704

TAIL & HEAD

85964RELAY, LIGHT RETRACTOR

main85964-12010iAE8#198305-198704

88430THERMOSWITCH ASSY, AIR CONDITIONER

main83430-30010iAE86198305-198704

NO.2

main83430-30020iAE86198305-198704

NO.1

main88655-12010iAE85198305-198704

NO.2

main88655-12020iAE85198305-198704

NO.1

88620CTHERMO SWITCH ASSY

main88620-12020iAE86..4FC198505-198704

89453SWITCH, THROTTLE POSITION (FOR T.C.S.)

main89453-14010iAE85198305-198704

89465SENSOR, OXYGEN

main89465-10010iAE85198505-198704

main89465-19085iAE85198305-198505

main89465-19095iAE86198505-198704

sub89465-19096

main89465-29105iAE86198305-198505

sub89465-29106

89466GASKET, OXYGEN SENSOR

main89466-30010iAE86198305-198704

sub89466-20020

main89466-32010iAE85198305-198505

sub89466-30030

89620IGNITER ASSY

main89620-12270iAE86198305-198704

827111A230WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1A230

8271124120WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-24120

9011906104

main90119-06104

9017908059

main90179-08059

9017908094

main90179-08094

9046106063

main90461-06063

9046106064

main90461-06064

9046108312

main90461-08312

9046112218

main90461-12218

9046808002

main90468-08002

9161160612

main91611-60612

9165140610

main91651-40610

9165140612

main91651-40612

9165640616

main91656-40616

9338516025

main93385-16025

36 parts on this diagram · 4 diagrams in section
