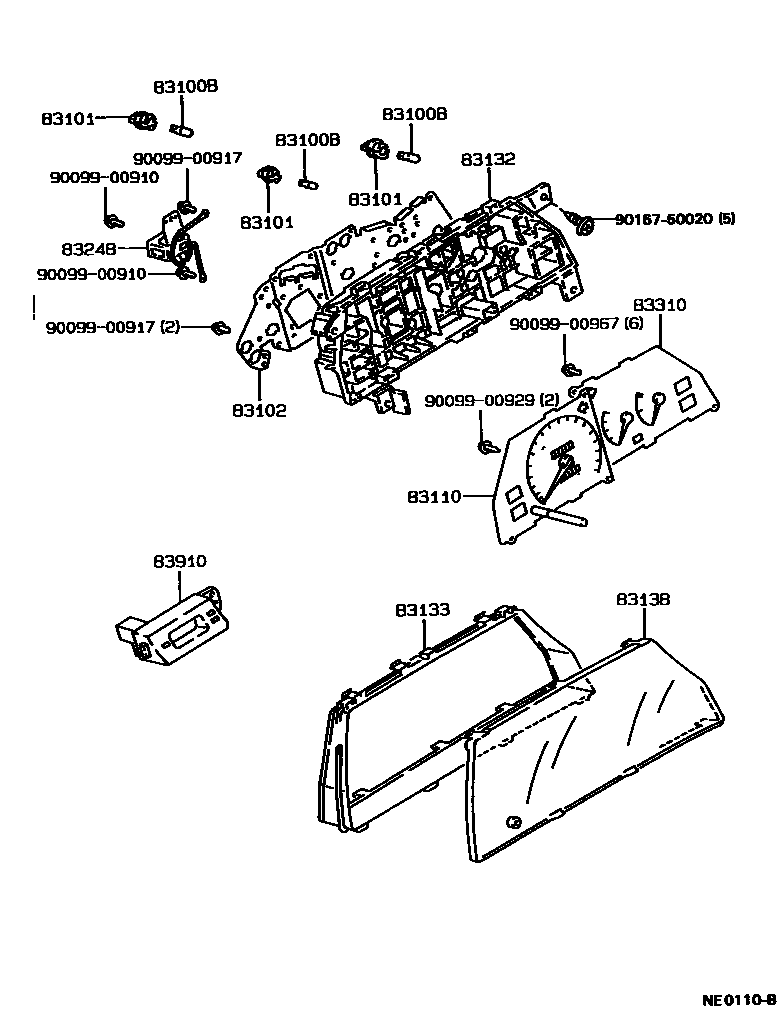

Toyota SPRINTER TRUENO — METER
83100BBULB, COMBINATION METER, NO.1
83101SOCKET SUB-ASSY, COMBINATION METER BULB
12V 3.4W BULB
14V 1.4W BULB
83102PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1
NO.1
83110SPEEDOMETER ASSY
83132CASE, COMBINATION METER
83133PLATE, COMBINATION METER, NO.1
83138GLASS, SPEEDOMETER
83248CHIME, SPEED WARNING
83310GAGE ASSY, FUEL RECEIVER
83910CLOCK ASSY
9009900910
main90099-00910
9009900917
main90099-00917
9009900929
main90099-00929
9009900967
main90099-00967
9016750020
main90167-50020
15 parts on this diagram · 4 diagrams in section
METER for Toyota SPRINTER TRUENO
This section contains 39 genuine Toyota parts for the METER system of the Toyota SPRINTER TRUENO. Key components include: BULB, COMBINATION METER, NO.1, SOCKET SUB-ASSY, COMBINATION METER BULB, PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1, SPEEDOMETER ASSY, COUNTER, TOTAL.
