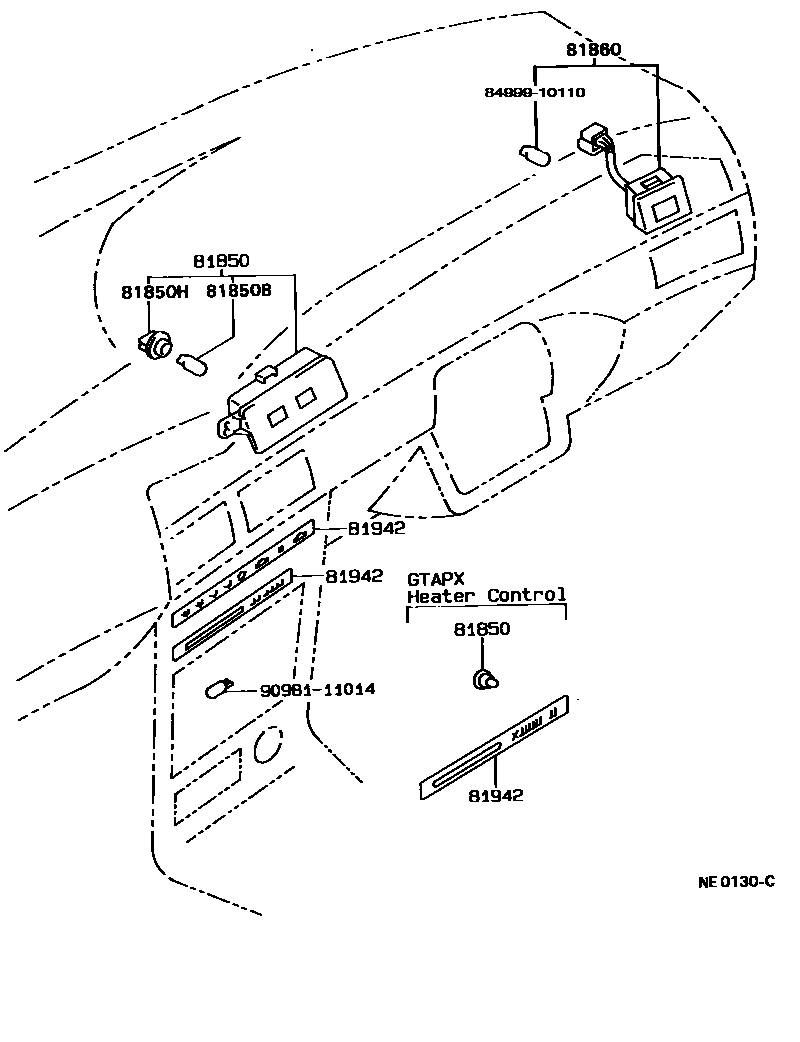

Toyota SPRINTER TRUENO — INDICATOR

81850LAMP ASSY, INDICATOR

main81850-12190iAE9#..G,GT,L,XI198705-199106

main81850-12190iAE9#..GTAPX,XS198705-199106

main81850-12220iAE9#..GTAPX,GTZ,XS198705-199106

81850BBULB, INDICATOR LAMP

main84999-50010iAE92..GTAPX198705-199106

main84999-50010iAE9#..GTAPX,XS198705-199106

81850HSOCKET, INDICATOR LAMP

main84999-50110iAE91..CBR198705-199106

main84999-50110iAE9#..GTAPX,XS198705-199106

81860LAMP ASSY, TRANSMISSION INDICATOR

main81860-12070iAE91..4FC198705-199106

main81860-12090iAE92..4FC198705-199106

81942SHEET, HEATER CONTROL NAME

main81942-12230iAE92..GTAPX,GTZ198905-199106

main81942-12230iAE92..GTAPX198705-198905

main81942-12240iAE9#..G,GT,L198705-199106

main81942-12250iAE9#..G,GT,GTV,GTZ,L,XI198705-199106

main81942-12260iAE9#..G,GT,GTV,GTZ,XI198705-199106

8499910110SWITCH ASSY, GOVERNOR CONTROL

main84999-10110

9098111014

main90981-11014

7 parts on this diagram · 1 diagram in section
